With this new Leitax mount, you can use a Leica-R lens on Nikon or Canon cameras with an easy add-on mount operation..

We have a Leica-R lens that was converted to Nikon with the Leitax mount.

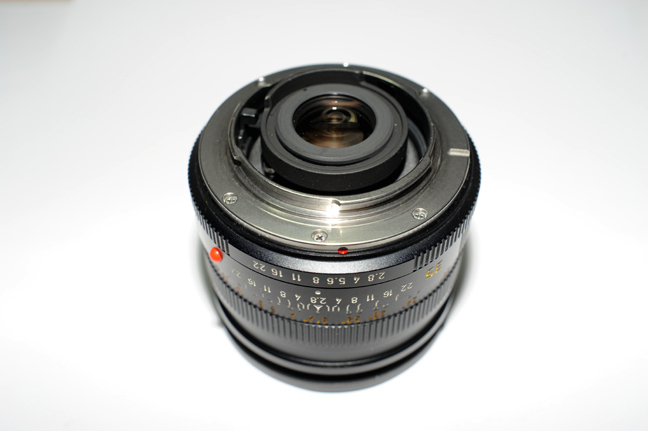

Here you can see the Leitax Leica-Nikon mount installed on the lens.

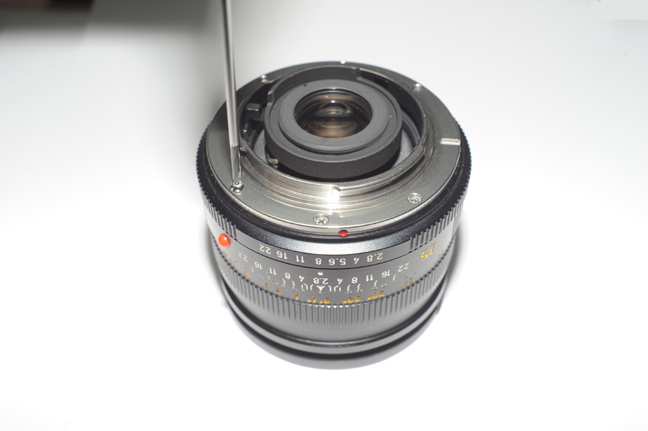

We have to remove the screws, I'd recommend to leave the one at the bottom of the lens, to avoid having to realign the mount if it moves accidentally

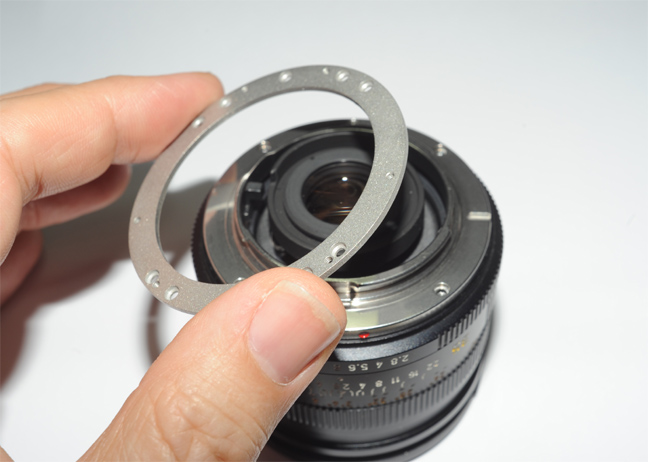

Now put the ring on top of the Leitax mount for Nikon.

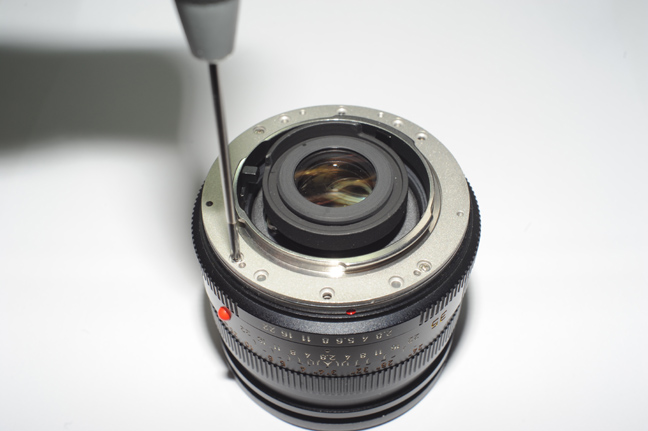

And use the provided longer screws to attach the ring.

This ring has the extra four holes that will allow to install it on the 28-90 and 21-35 Leica-R lenses ( ask for special screws for these two lenses)
Also ask for special screws for:
 - Summilux 50/1.4 E60
 - Summilux 35/1.4
 - Apo-Elmarit 180/2.8
 - Vario-APO-Elmarit 70-180/2.8
 - Apo-Telyt-R Focus-Modules

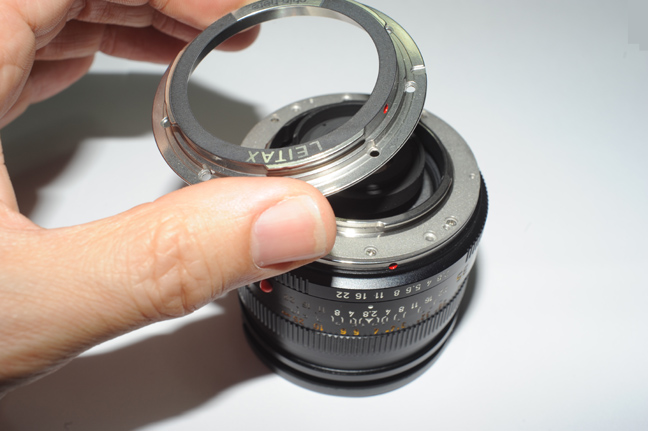

Now we can put the Leitax mount on top of the ring

To have the lens in upright position, the two slots have to coincide

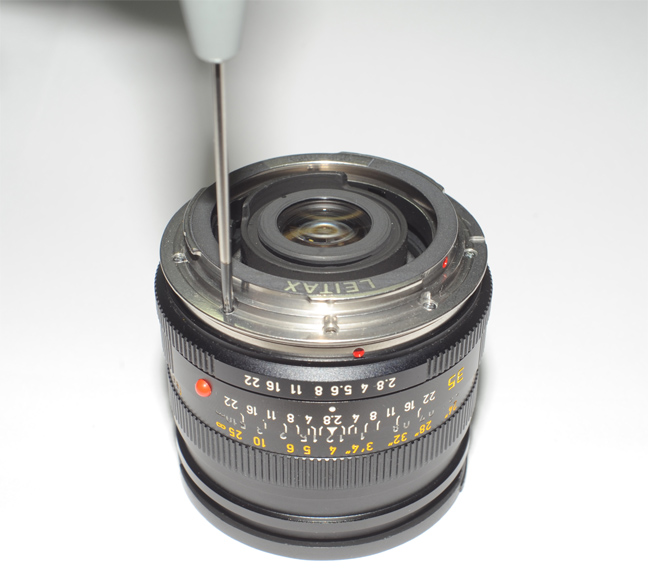

8And attach the Leitax mount using the provided smaller  six screws.

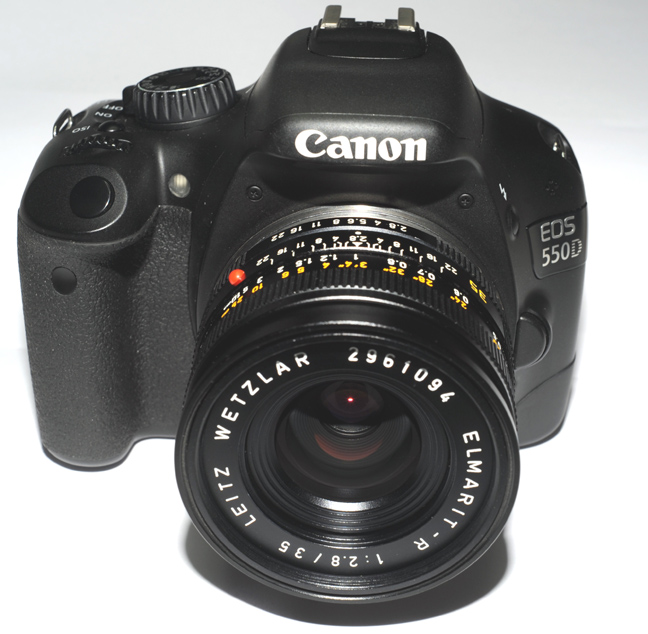

9Now we can use this lens on a Canon camera.
Any questions?, please write to info@leitax.com
