Nikon-F
to Arri-LPL mount instructions
|
|
I

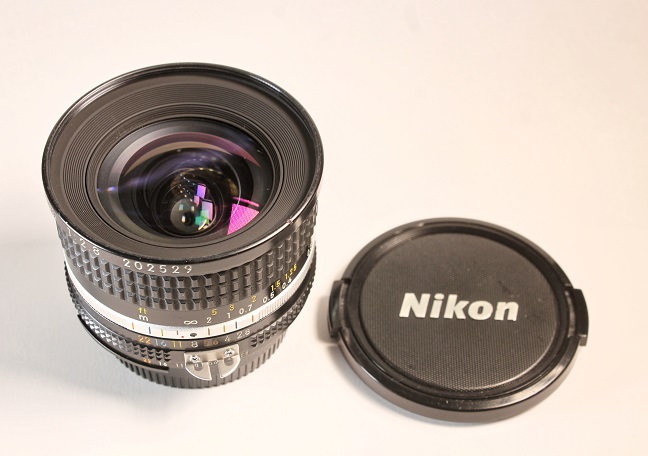

will use this Nikkor 20/2.8 for the instructions.
|
|
This

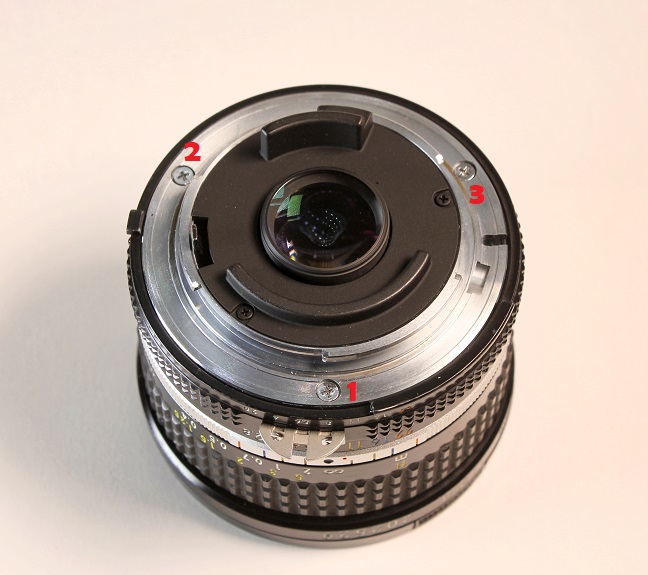

lens has 3 screws at the original mount. Other Nikkor lenses have 4 or 5 screws, the Leitax mount is ready for all the variants . |
|

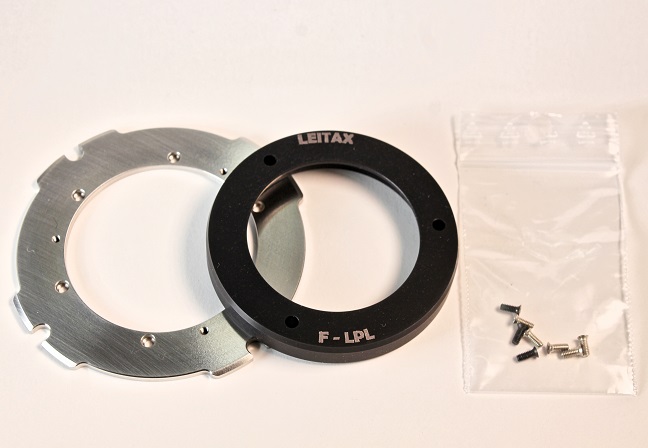

This is what you receive. | |

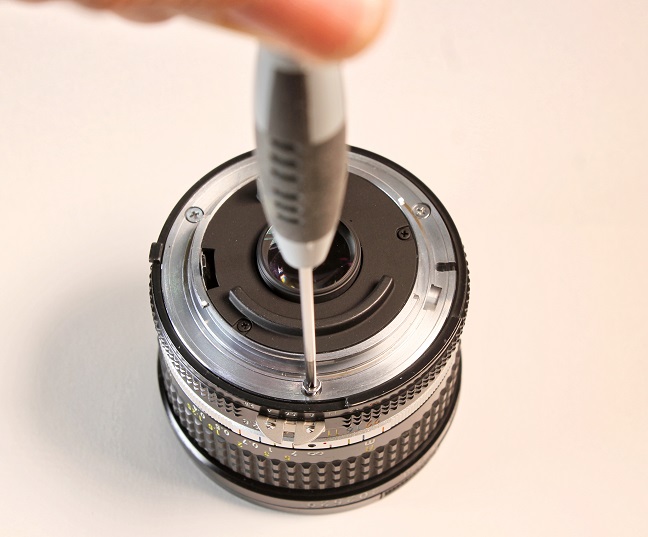

We remove the screws at the original mount. | |

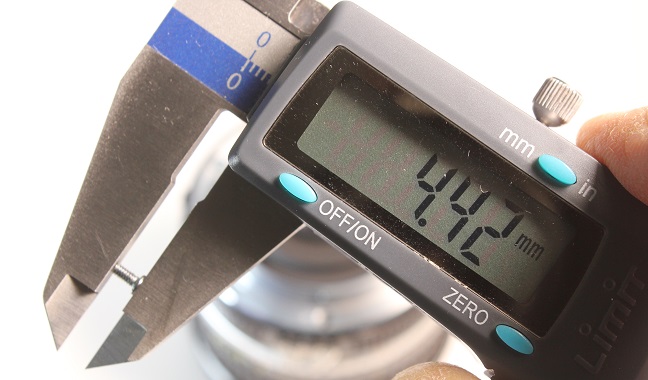

This Nikkor 20mm lens has 4.42mm screws. | |

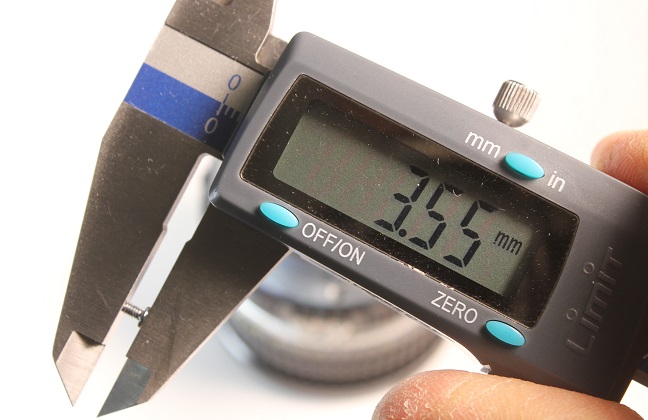

The Nikkor 85/1.8 AF that I have uses 3.55mm long screws. Both will use our standard 5mm screws for the Leitax mount. If your lenses have screws longer than 4.42mm please let me know and I will include the correct length screws for the Leitax mount. |
|

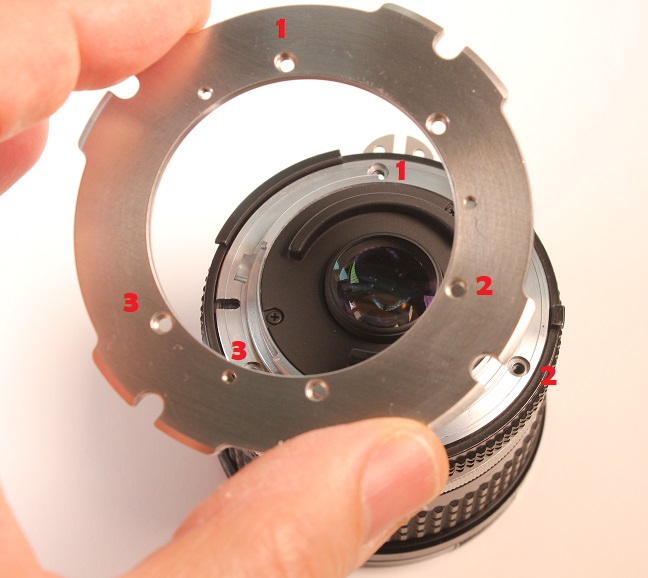

Now we install the steel plate on top of the lens original mount. Pay attention to the holes positions that I've marked. |
|

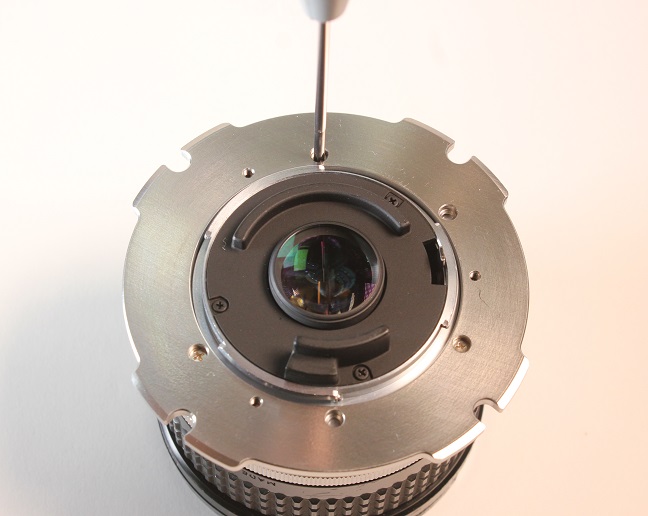

And we can screw the included steel fasteners. | |

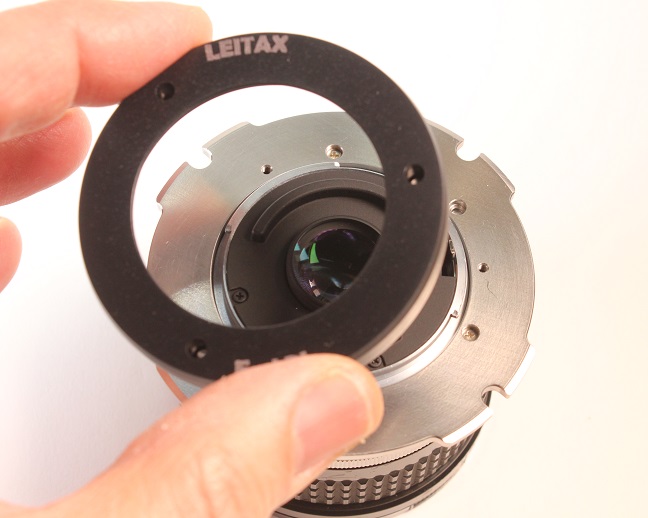

And now the black centering ring, its holes have to coincide with the threaded holes of the steel plate. | |

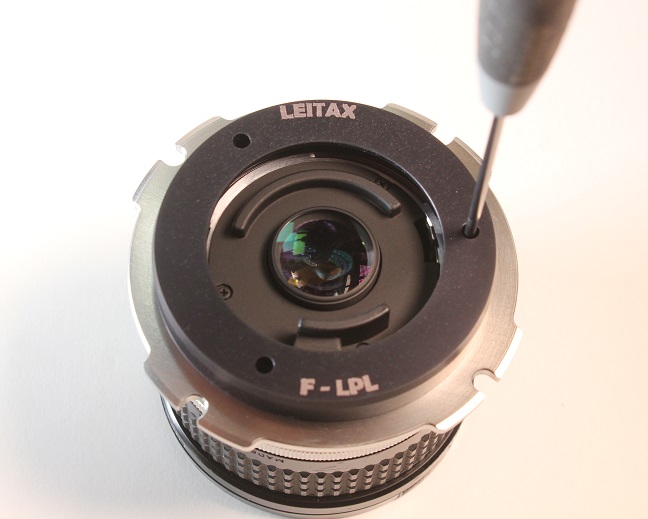

Here we'll use the included black screws. |
|

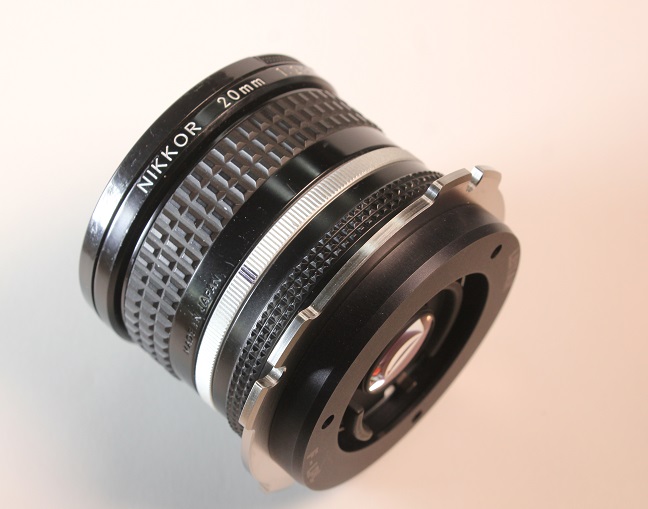

And ready, our Nikkor lens can be used on the Arri full frame cameras. | |

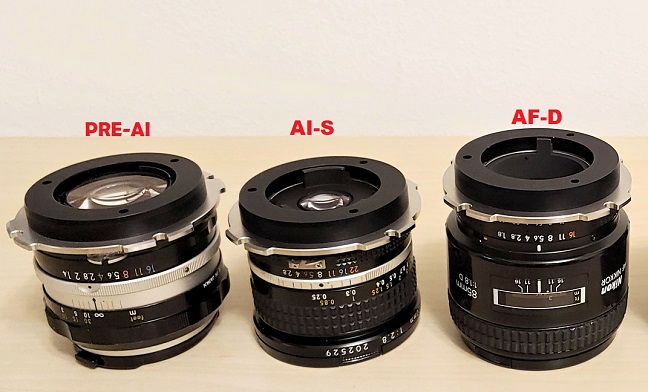

I've checked various types of Nikkor lenses. | |

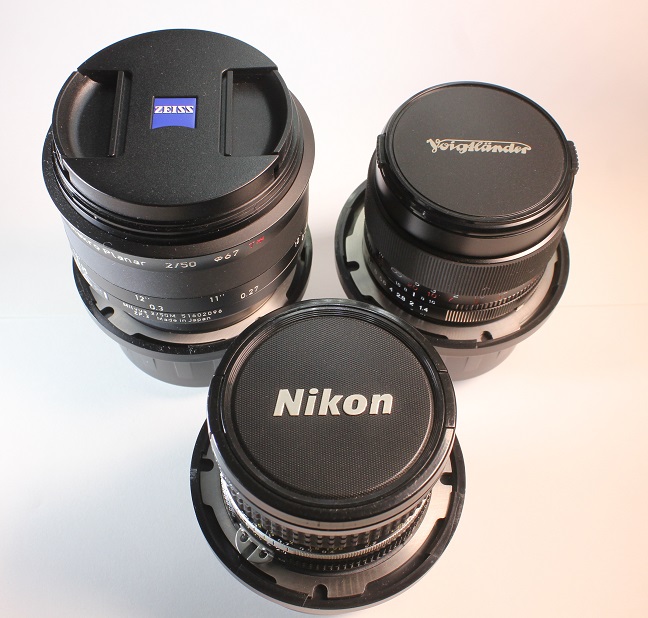

The Zeiss ZF, ZF.2. Milvus and Otus can use this Leitax mount. And the Voigtlander SLII too. |
|
