Please don't hesitate to ask me any doubt regarding this conversion.


info@leitax.com
Olympus Nikon 1

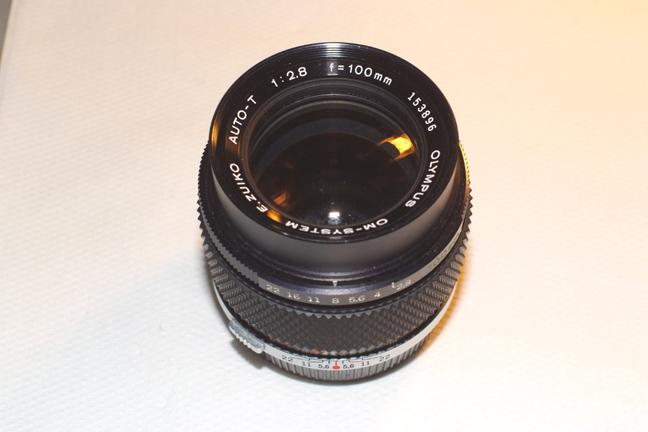

This is the Olympus OM-System Zuiko 100/2.8
Olympus Nikon 2

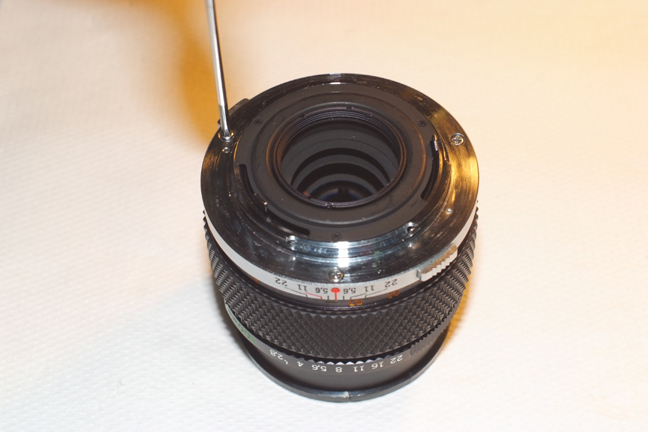

It has three screws at the bayonet base, which we have to remove.
Olympus Nikon 3

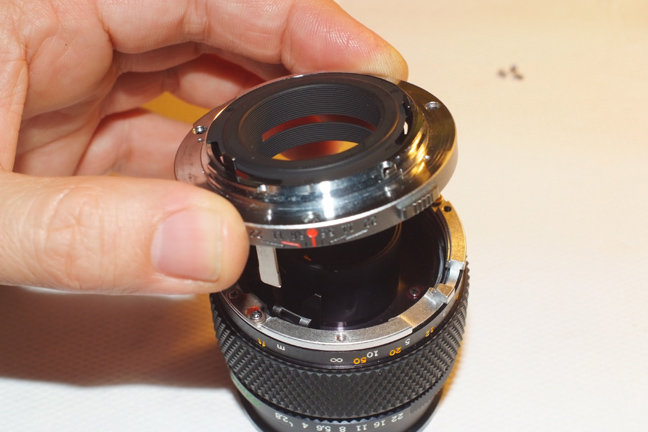

Just lift the bayonet.
Olympus Nikon 4

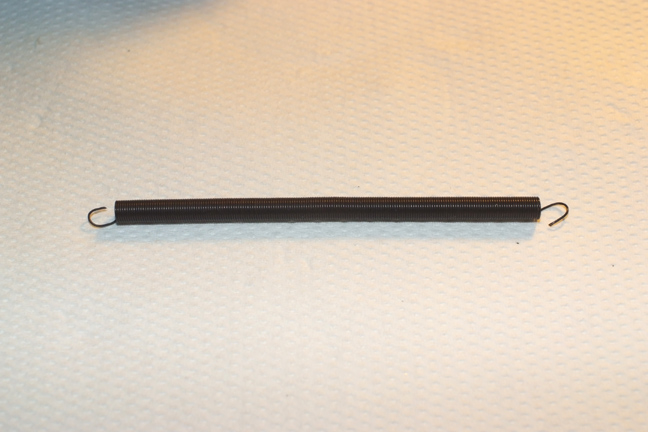

Now make a spring like this one from a piece of 75mm..
Olympus Nikon 5

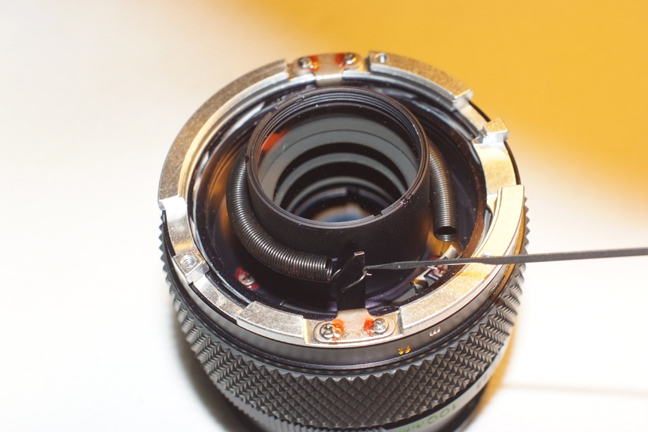

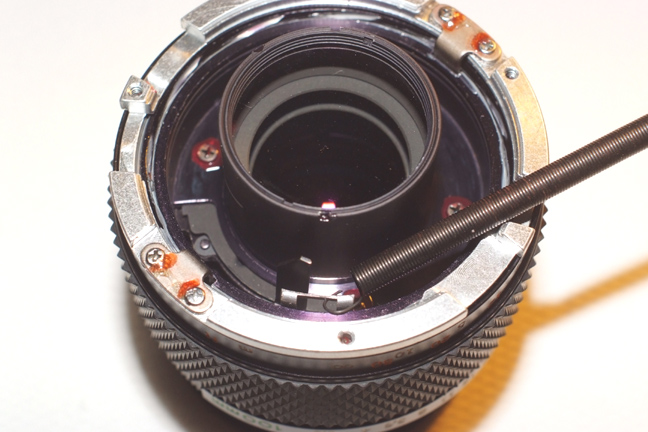

One hook goes here.
Olympus Nikon 6
And the other one here.
Olympus Nikon 7

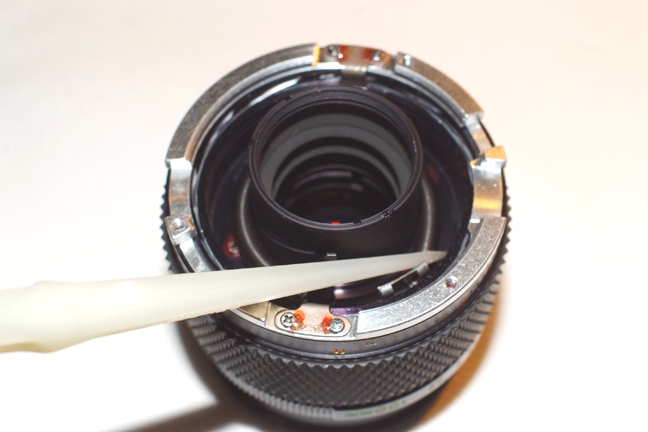

Push a bit the spring with the plastic tool to secure it.
Olympus Nikon 8

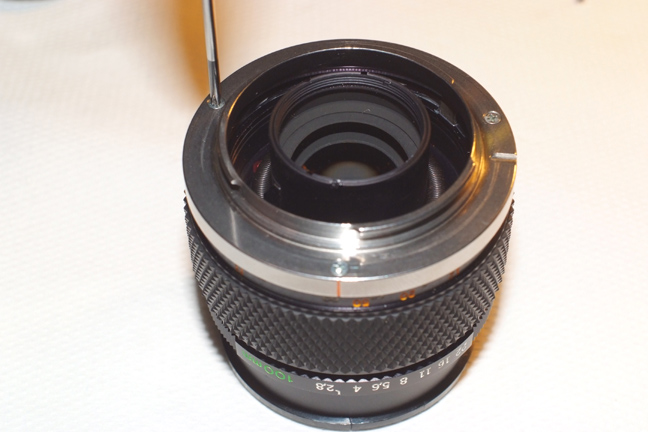

And we can install the Leitax bayonet with the provided screws.
Olympus Nikon 9

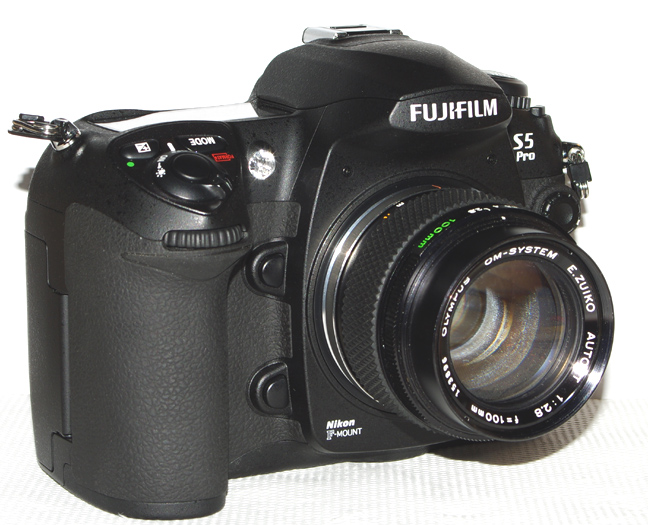

Ready for all Nikon  F-mount or Pentax cameras.
