Please don't hesitate to ask me any doubt regarding this conversion.


info@leitax.com
Olympus Nikon 1

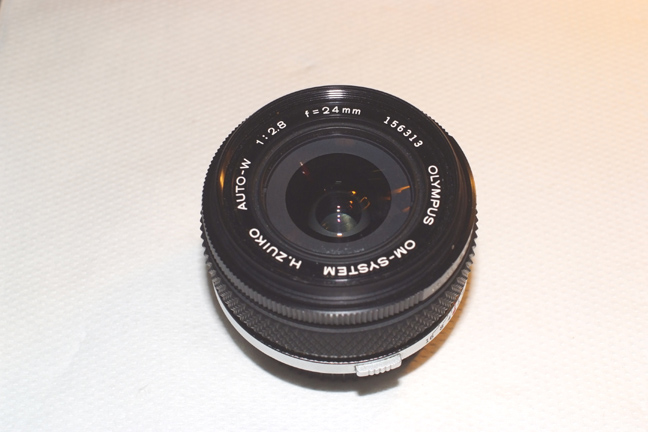

This is the Olympus OM-System Zuiko 24/2.8
Olympus Nikon 2

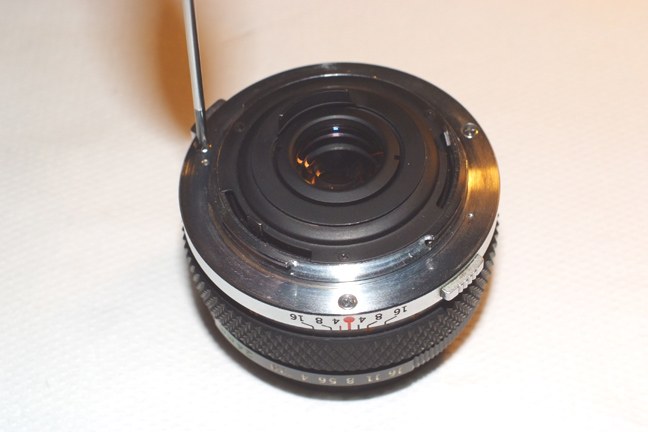

It has three screws at the bayonet base.
Olympus Nikon 3

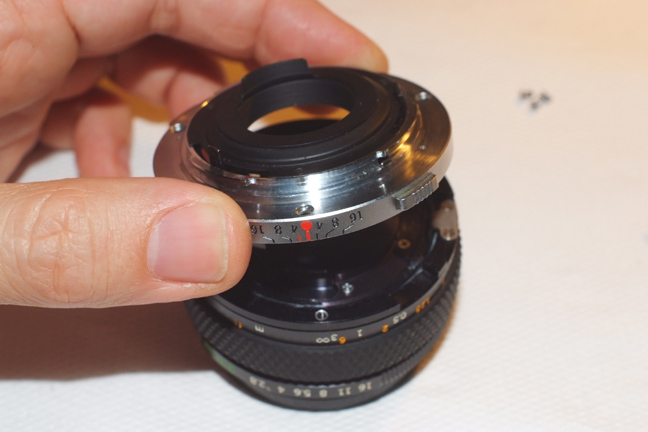

Just lift the bayonet.
Olympus Nikon 4

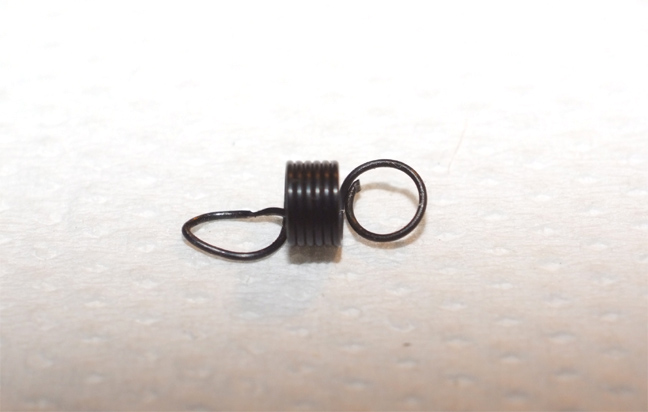

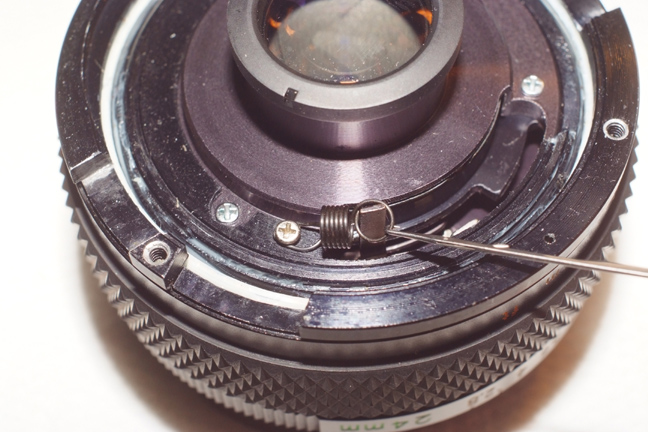

Now make a spring like this from a piece of 3.3mm.
Olympus Nikon 5

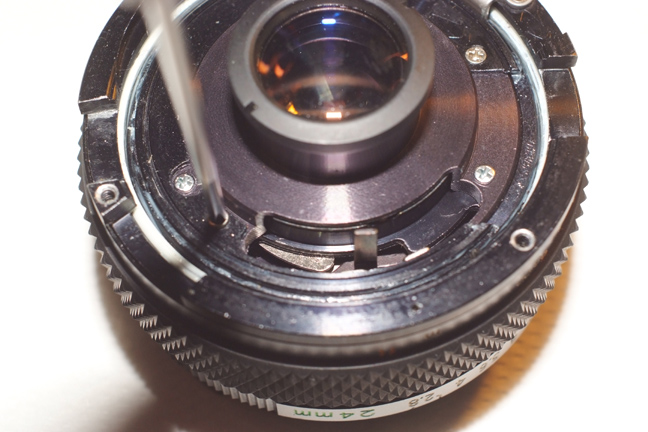

And unscrew this one a little bit.
Olympus Nikon 6
Just enough to pass the wire under it.
Olympus Nikon 6

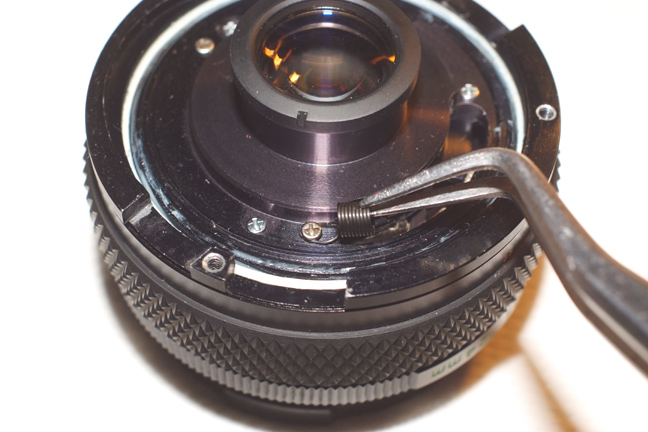

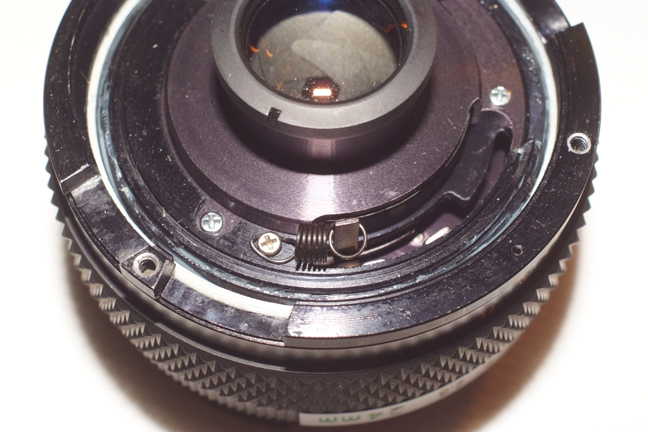

The other side goes here.
Olympus Nikon 7
Ready, now tighten that screw, but not too much.

It is a good idea to drop a small quantity of nail varnish on that screw, so it will not get loose. Please let the varnish dry completely before mounting the lens on the camera:  the smell must disappear.
Olympus Nikon 8

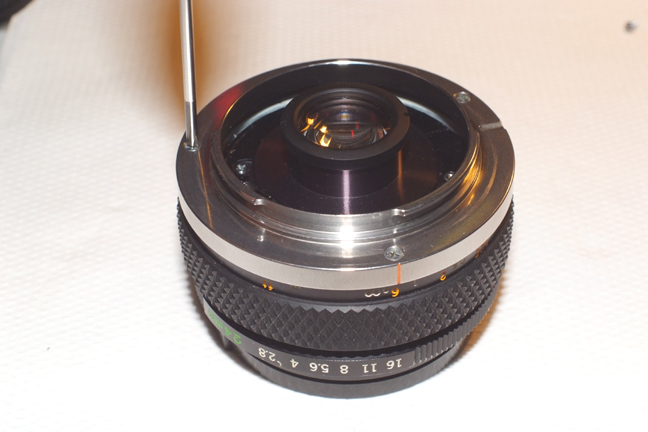

And we can install the Leitax bayonet, you will need to use the provided screws..
Olympus Nikon 9

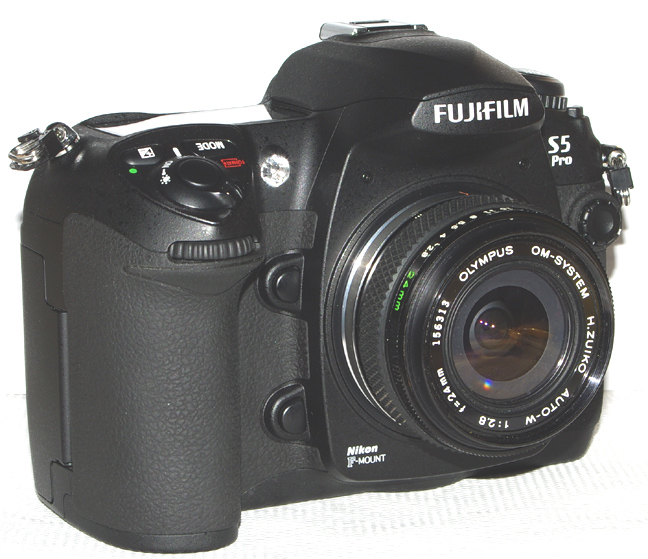

Ready for all Nikon  F-mount and Pentax cameras.

Back to the Olympus OM for Nikon Page
Back to the Olymous OM for Pentax Page
