Please don't hesitate to ask me any doubt regarding this conversion.


info@leitax.com
Olympus Nikon 1

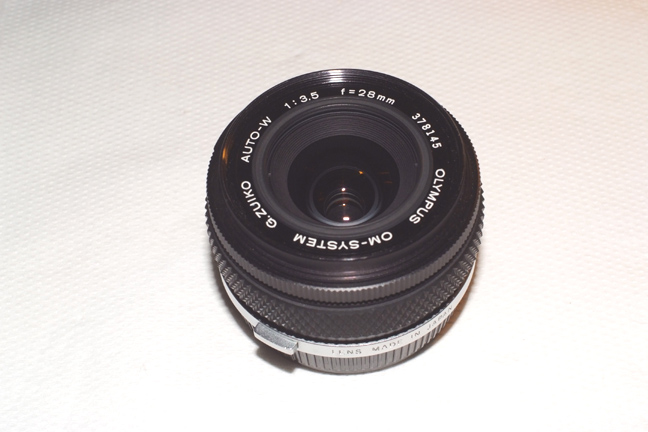

This is the Olympus OM-System Zuiko 28/3.5
Olympus Nikon 2

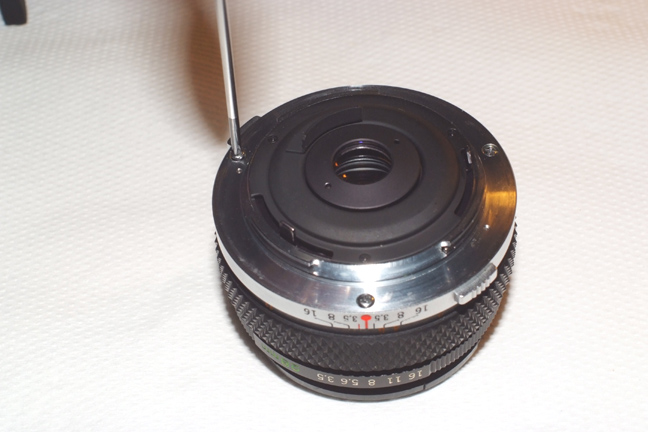

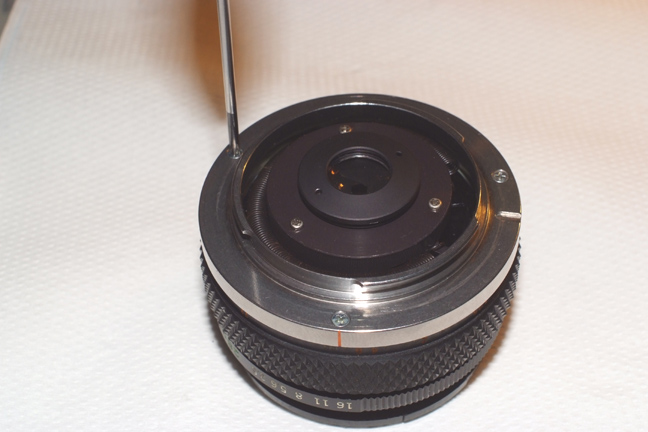

It has three screws at the bayonet base, which we have to remove.
Olympus Nikon 3

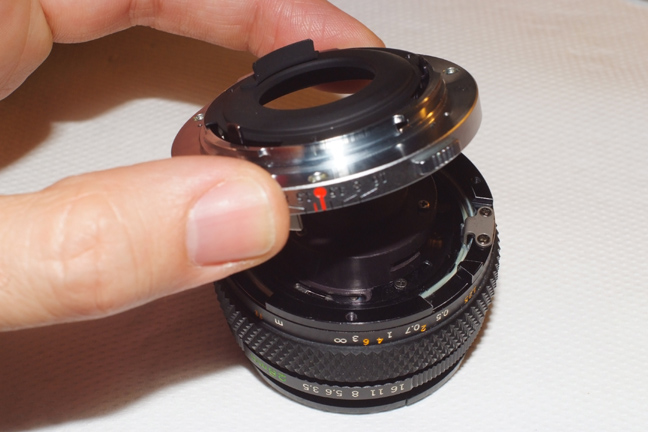

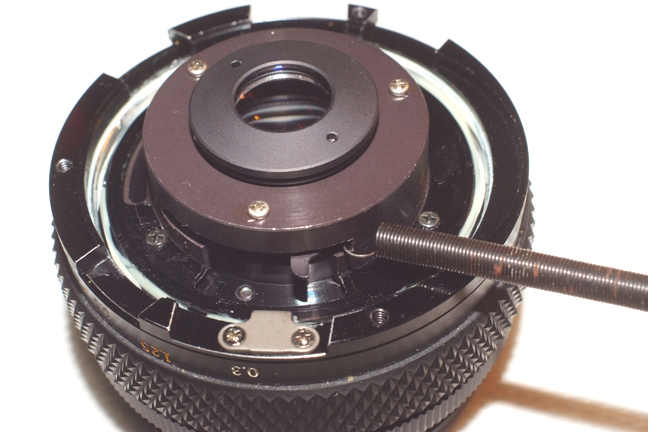

Just lift the bayonet.
Olympus Nikon 4

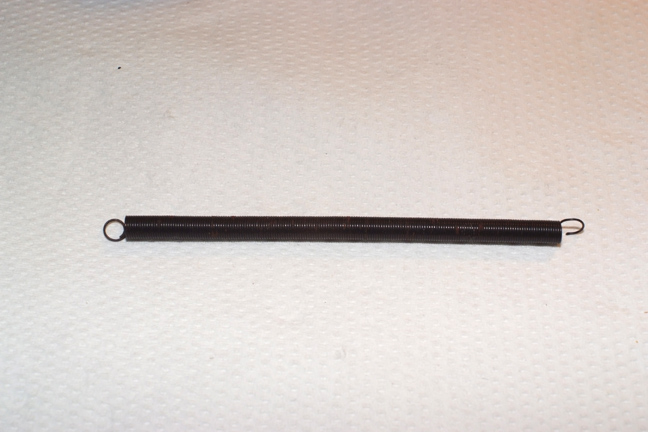

Now make a spring like this from a piece of 75mm.
Olympus Nikon 5

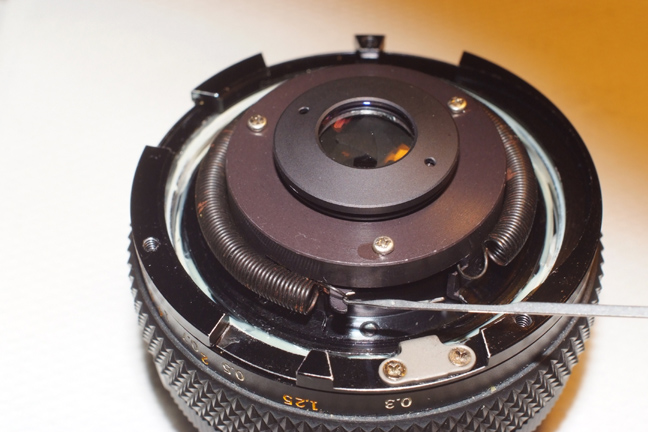

The hook side goes here.
Olympus Nikon 6

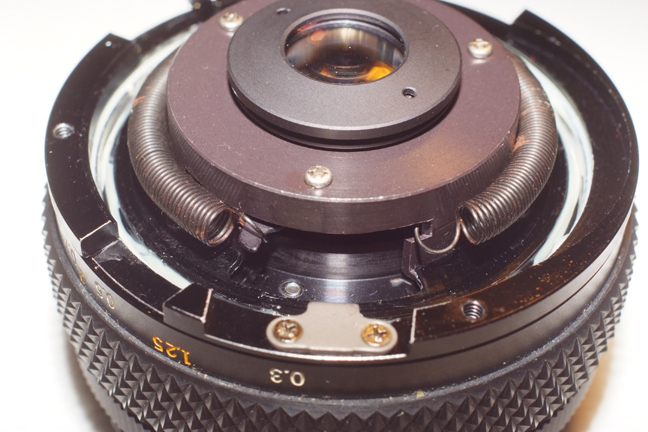

And the loop side here.
Olympus Nikon 7
Ready, now the aperture ring must operate the diaphragm.
Olympus Nikon 8
And we can install the Leitax bayonet with the provided screws.
Olympus Nikon 9

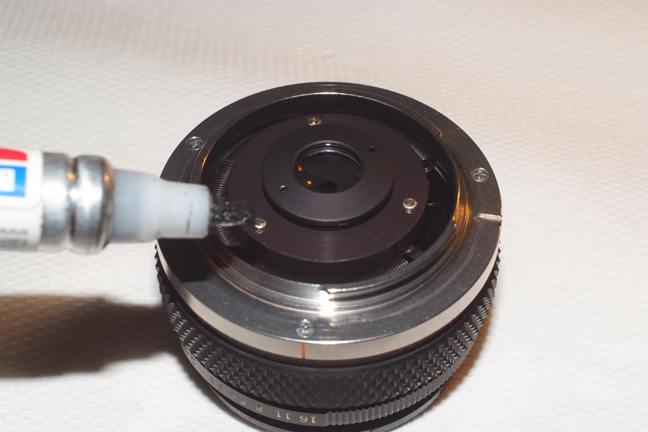

There are three screws that could reflect light to the sensor, I've paint them in flat black with my marker from Micro-tools.

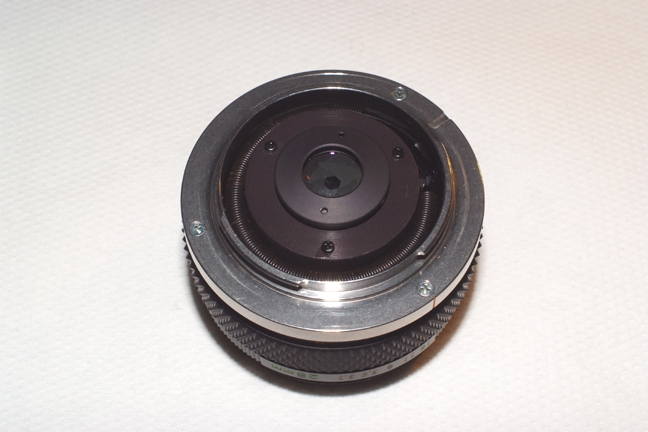

Olympus Nikon 10Now it looks much better.
Olympus Nikon 11

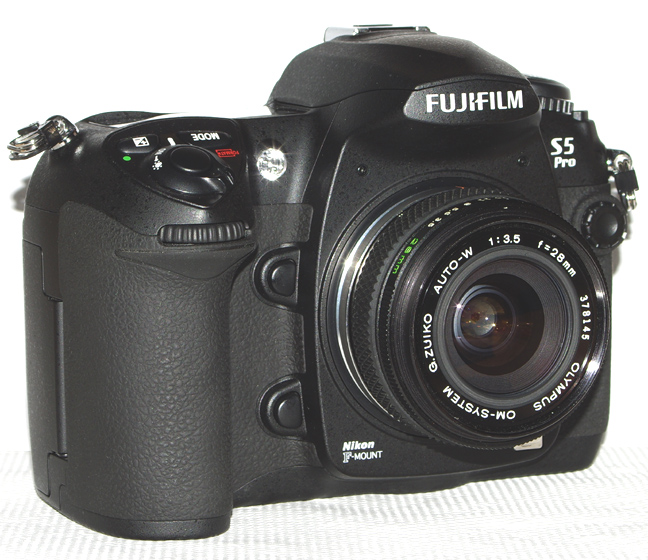

Ready for all Nikon  F-mount and Pentax cameras.
Back to the Olympus OM for Nikon Page
Back to the Olymous OM for Pentax Page
