Please don't hesitate to ask me any doubt regarding this conversion.


info@leitax.com

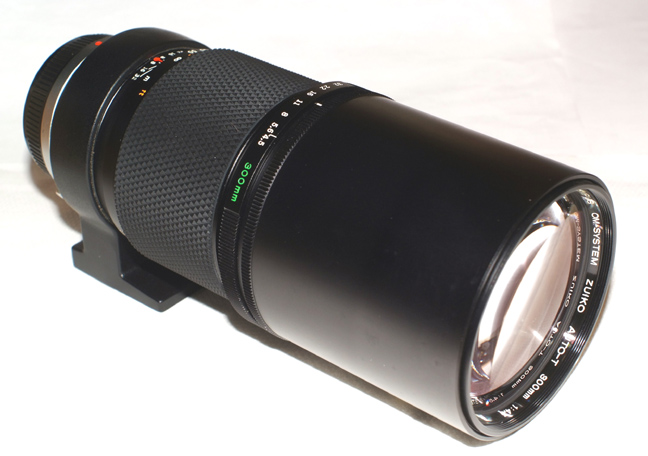

This is the Olympus OM-System Zuiko 300/4.5

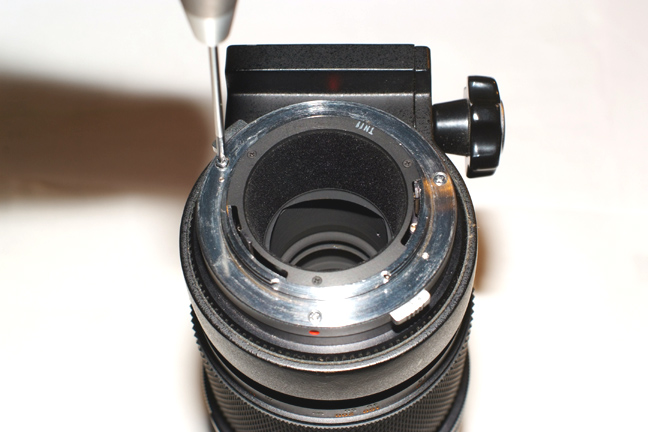

It has three screws at the bayonet base, which we have to remove.

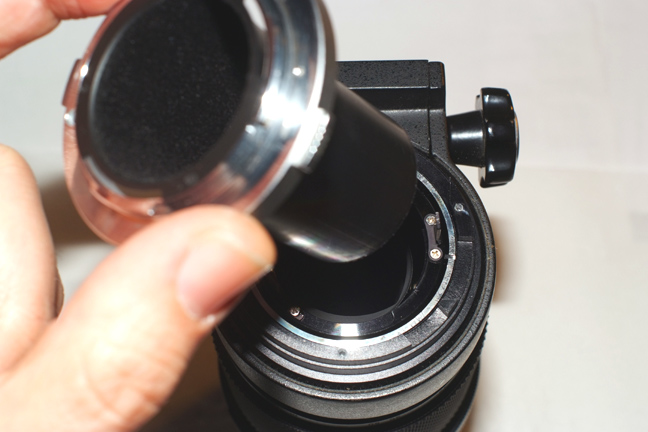

Just lift the bayonet.

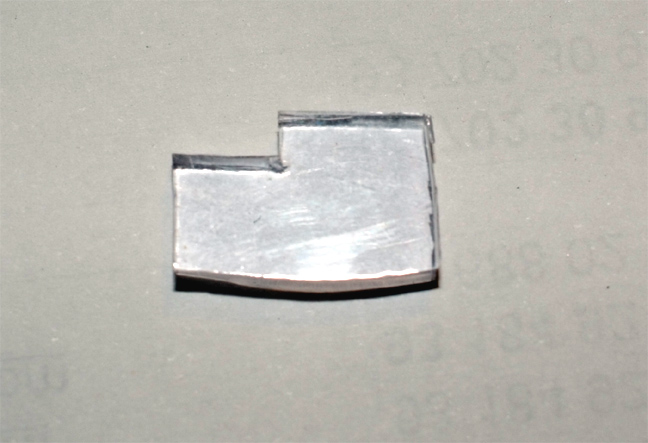

Now cut a form like this from a piece of elastic plastic, I use PVC.

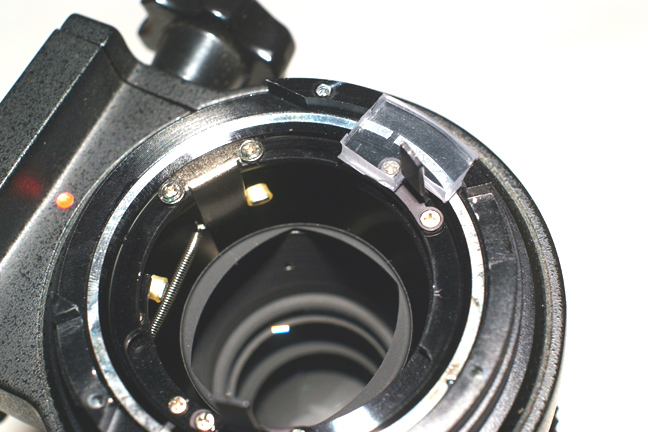

This way the plastic holds the aperture lever.

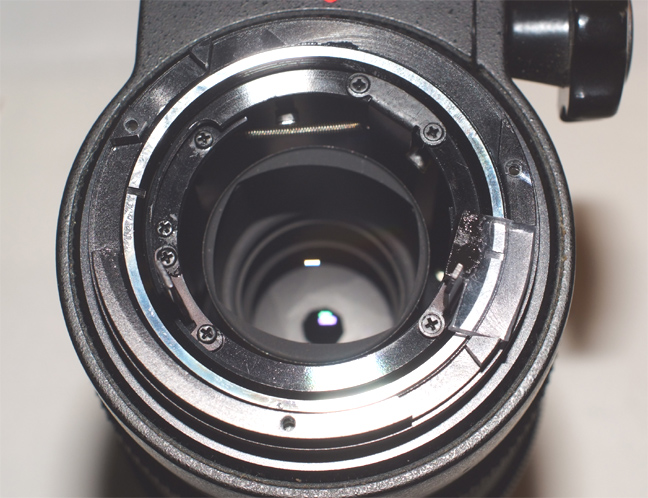

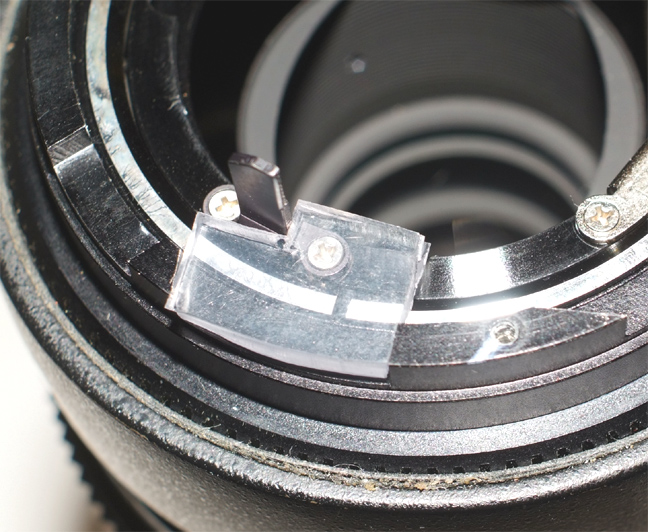

Another view.

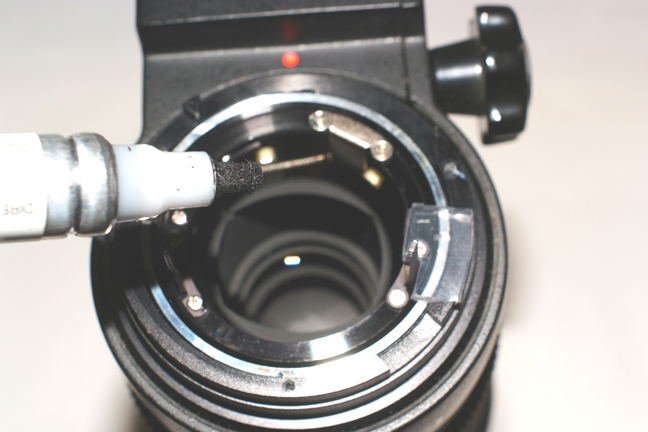

I recommend to paint in flat black those bright screw heads.

I've painted the exposed side of the plastic too.

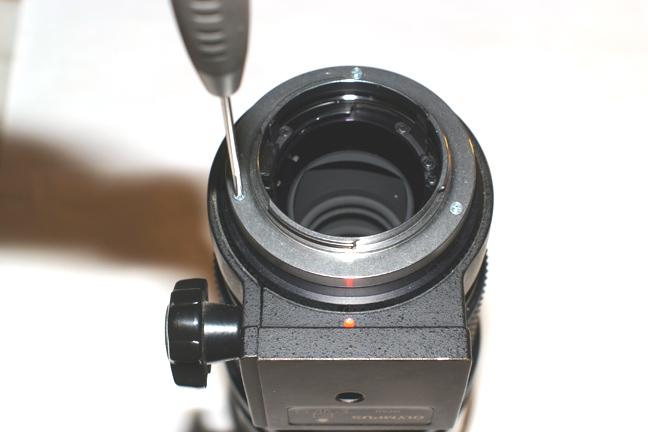

And we can install the Leitax bayonet .

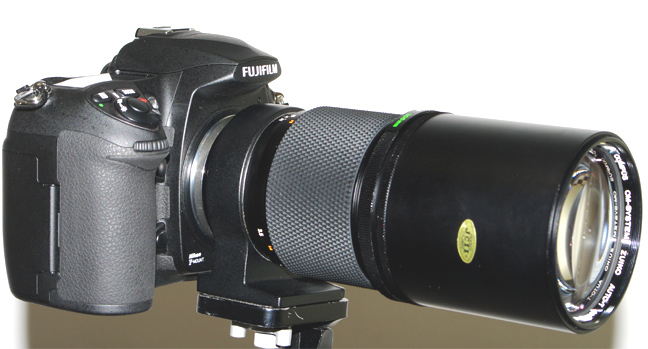

This excellent lens is ready to shot on all  Nikon mount or Pentax cameras.
