Please don't hesitate to ask me any doubt regarding this conversion.

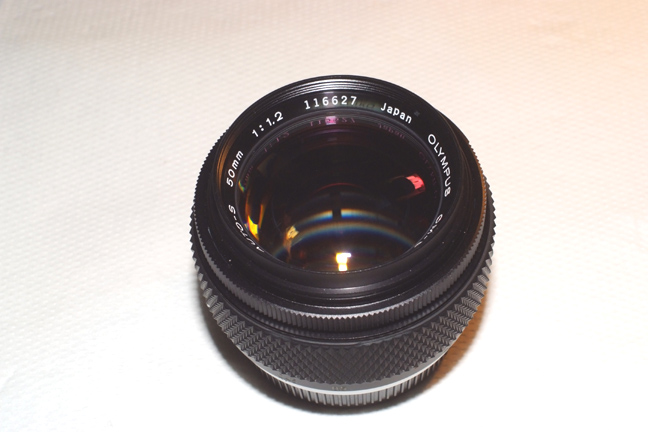

|This is the Olympus OM-System Zuiko 50/1.2|

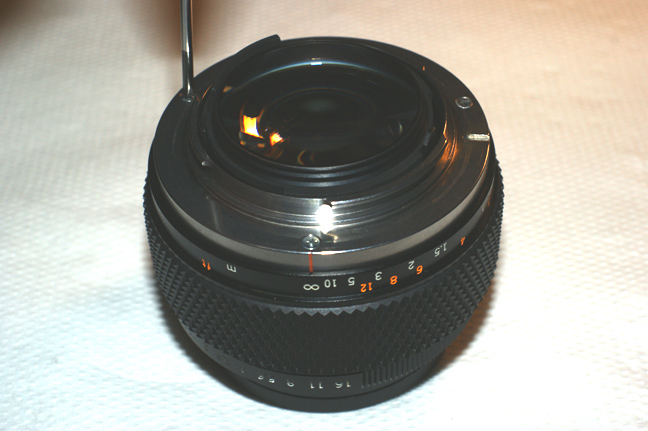

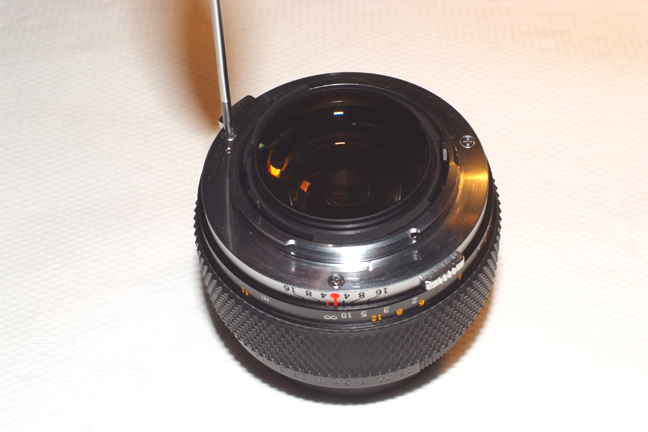

|It has three screws at the bayonet base, which we have to remove.|

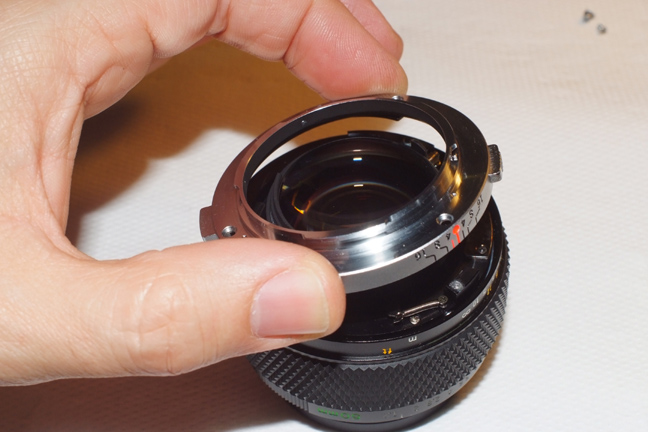

|Just lift the bayonet.|

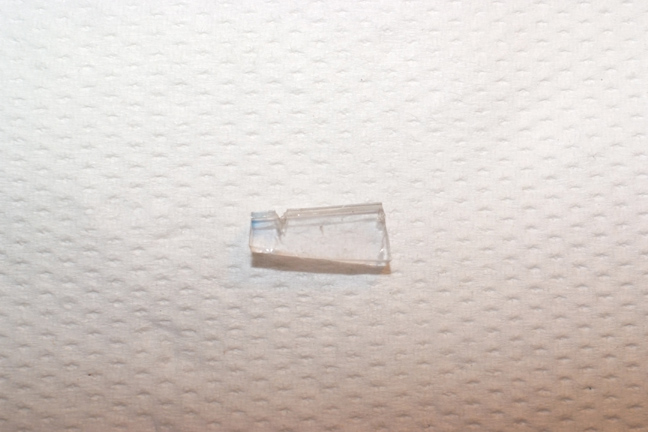

make a piece like this from a piece of elastic plastic.
You can also order one for free together with the bayonet.

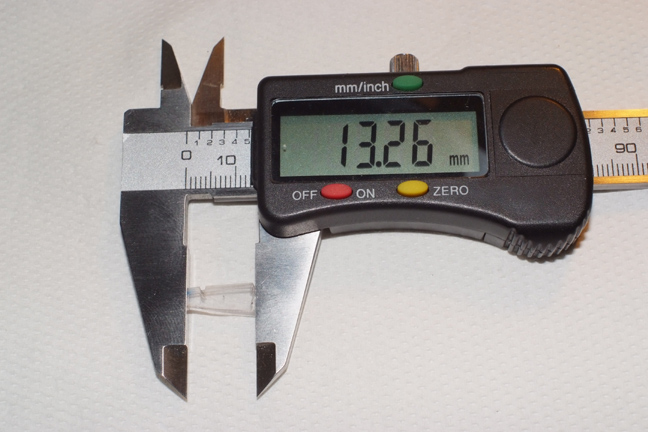

|This is the size.|

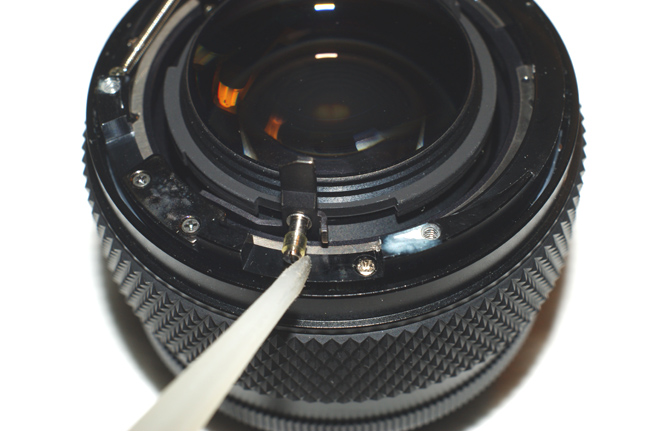

|Now hold this lever with the plastic tool.|

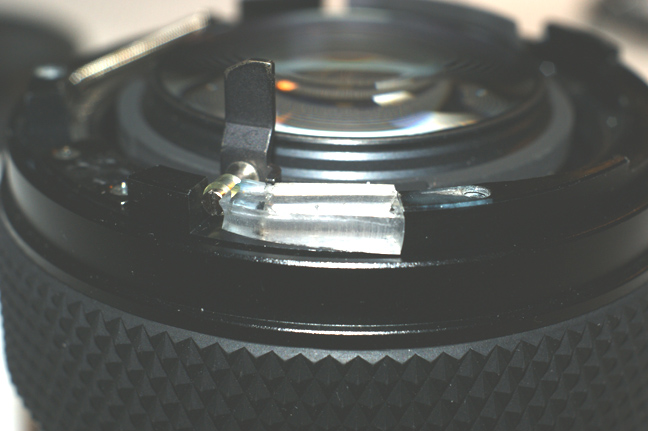

|And insert the plastic piece to avoid the lever to return.|
|And we can install the Leitax bayonet with the provided screws.|
On Nikon cameras, this lens can hit the aperture lever at infinity and F16.
It is possible to remove that lens lever to avoid this problem.
Anyway, it is only at F16 and at Infinity focus.

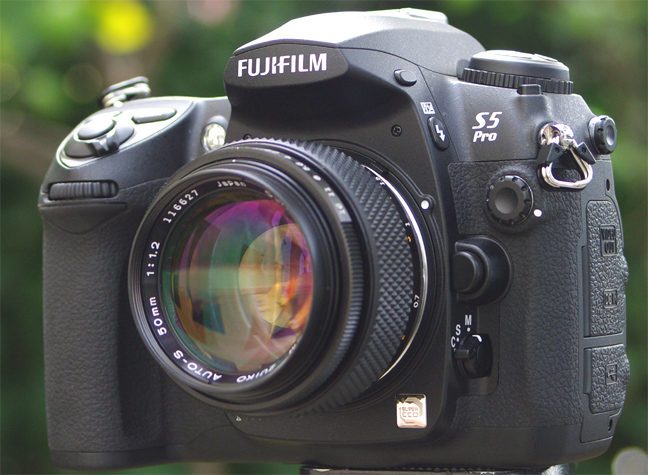

Ready for all Nikon and Pentax Digital cameras.
