Please don't hesitate to ask me any doubt regarding this conversion.

                                                               info@leitax.com
Olympus Nikon 1

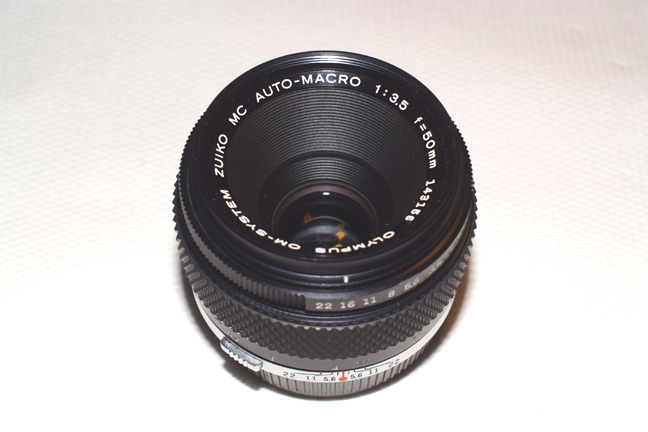

 This is the Olympus OM-System Zuiko 50/3.5 Auto-Macro lens.
Olympus Nikon 2

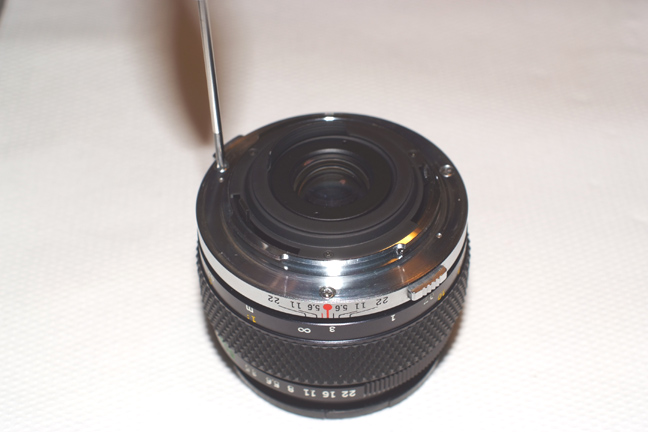

 It has three screws at the bayonet base.
Olympus Nikon 3

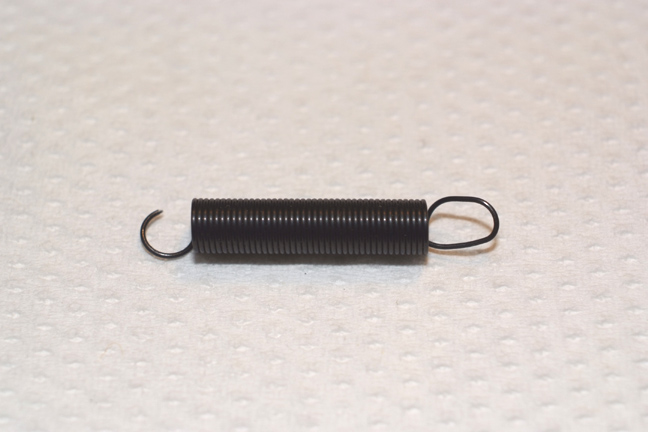

 We have to make a spring like this one from a piece of 18mm.
Olympus Nikon 4

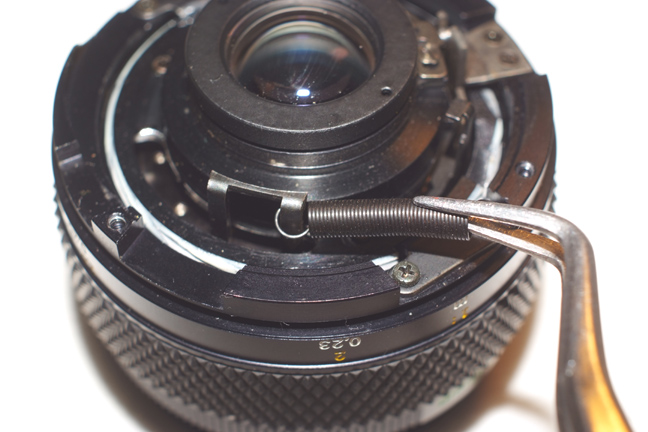

 The hook side goes here.
Olympus Nikon 5

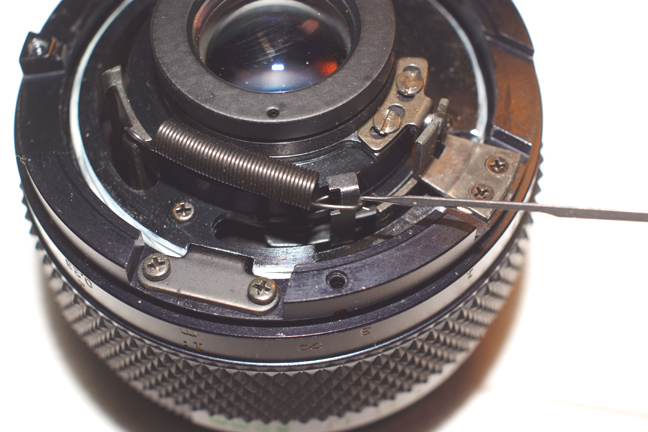

 And the loop side here.
Olympus Nikon 6

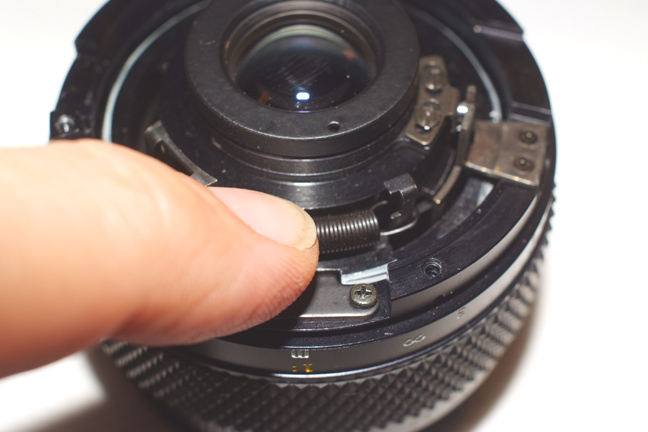

 Press down the spring  .
Olympus Nikon 7

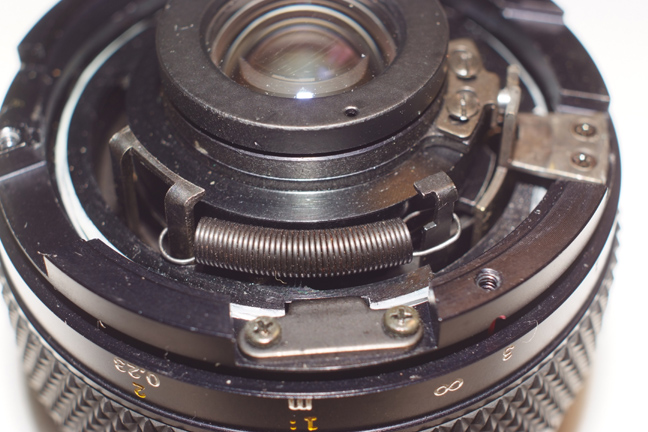

 This is the result.
Olympus Nikon 8

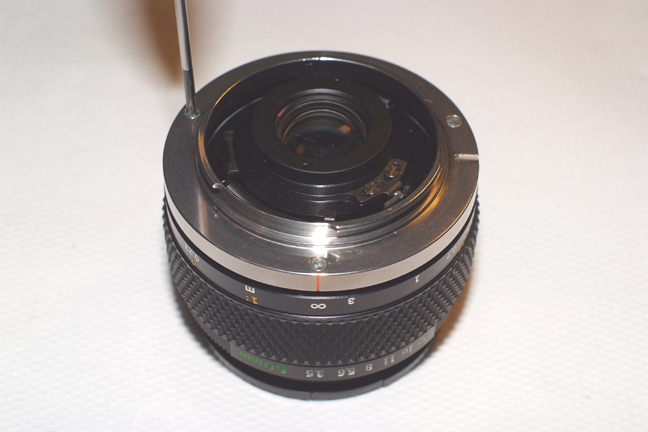

 Now we can install the Leitax bayonet using the provided screws.
Olympus Nikon 9

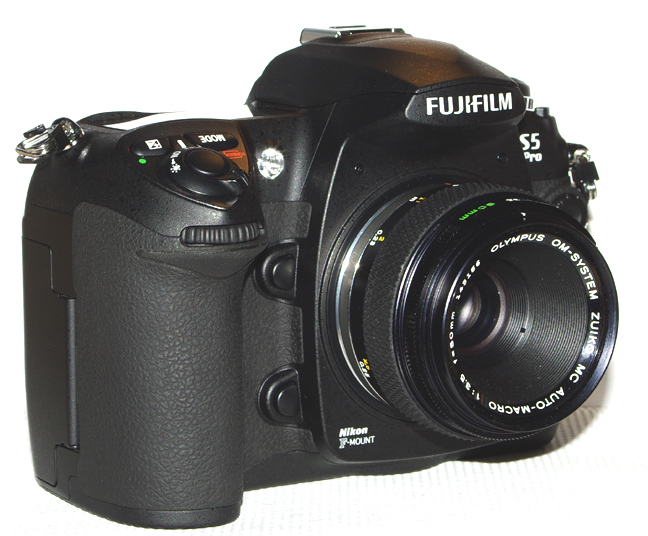

 Ready, a Zuiko-OM lens on  Nikon F-mount or Pentax cameras.
