Extender
















Thanks to Eric from

Eric Tam
Photography

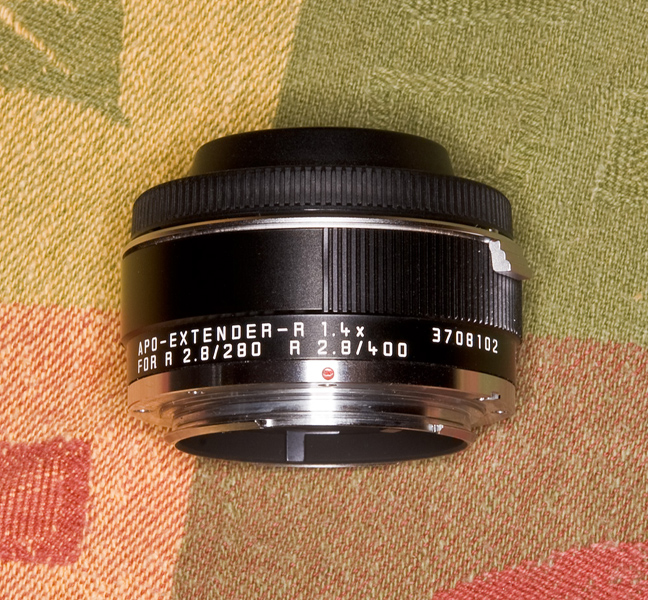

we have the opportunity to see the APO-Extender-R 1.4x conversion to Nikon mount

bayonet

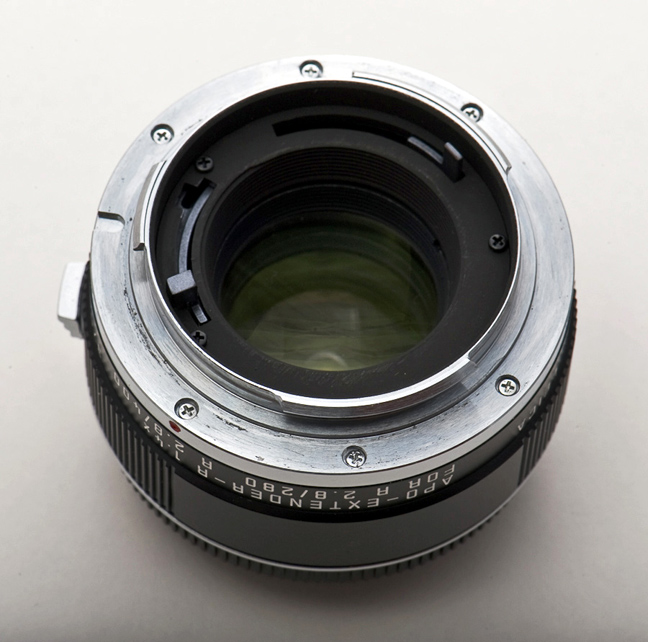

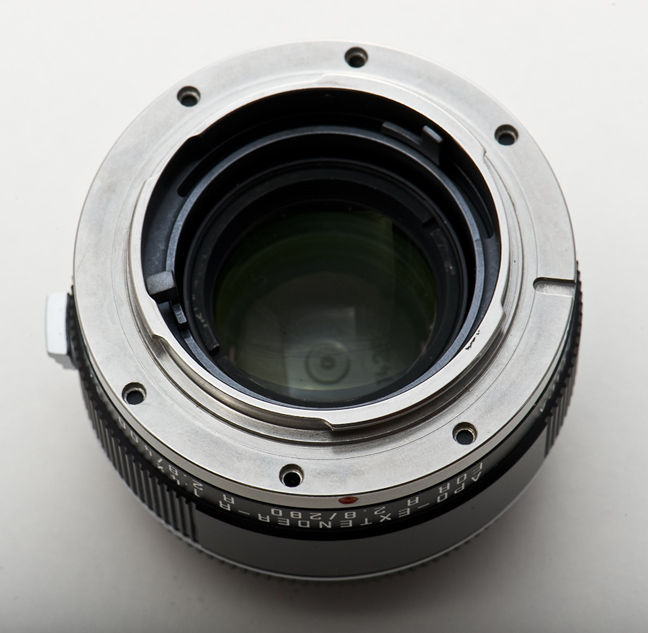

The mount looks like any other Leica-R lens bayonet.
Unscrew

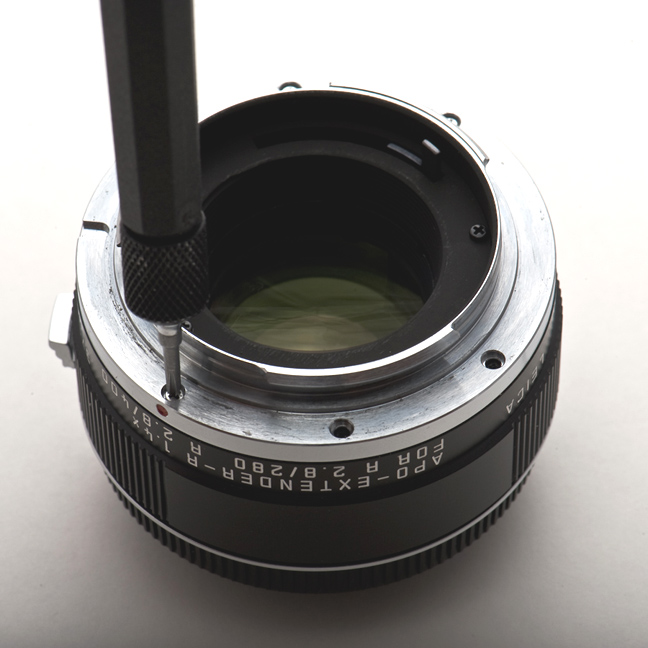

First, unscrew the six screws from the mount.
shroud

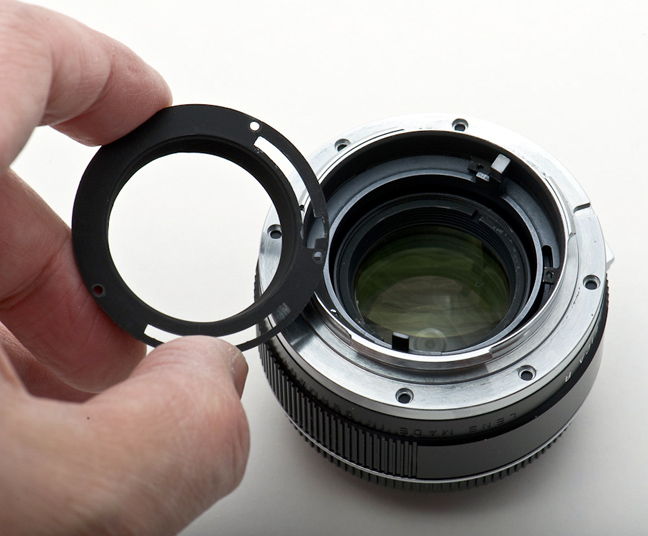

After removing it's three black screws, Eric had to
bend the baffle slightly  to remove it.
ready

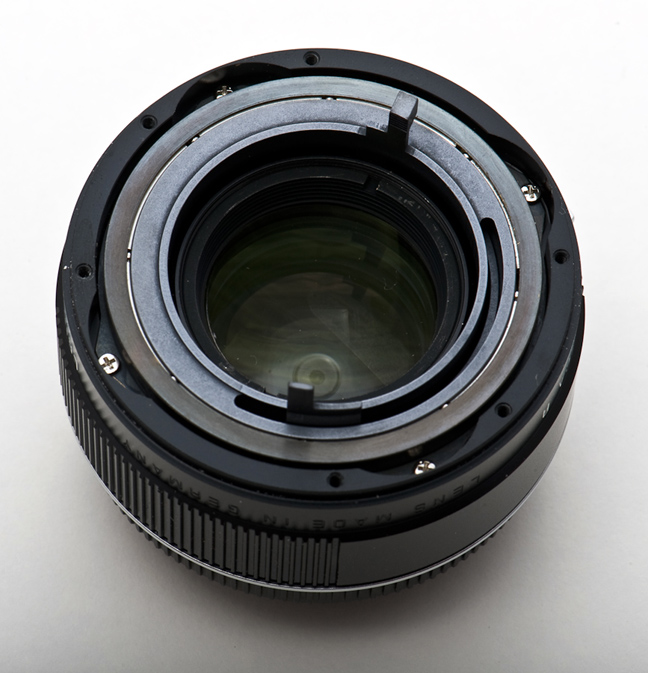

There is no small bearing ball to worry about
.
new

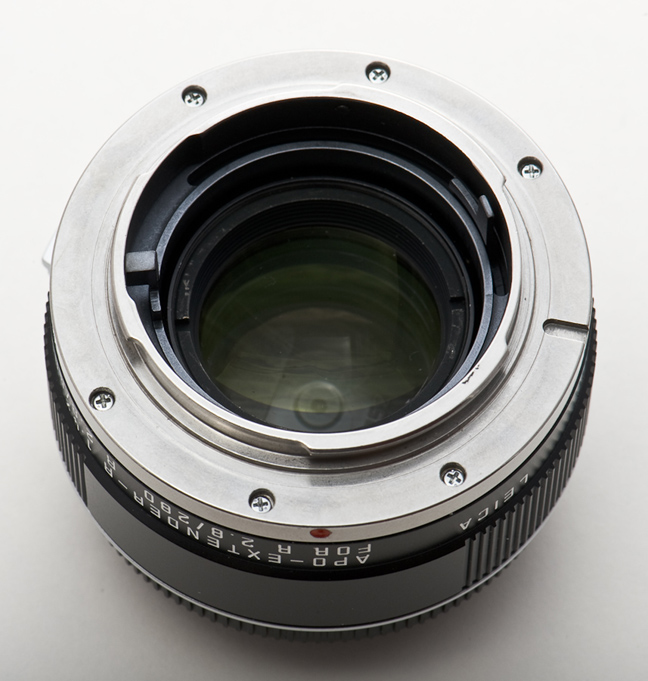

Now install the new Leitax bayonet.

installed
















And screw it, remember to tight the screws in cross pattern one bit each time.
on camera

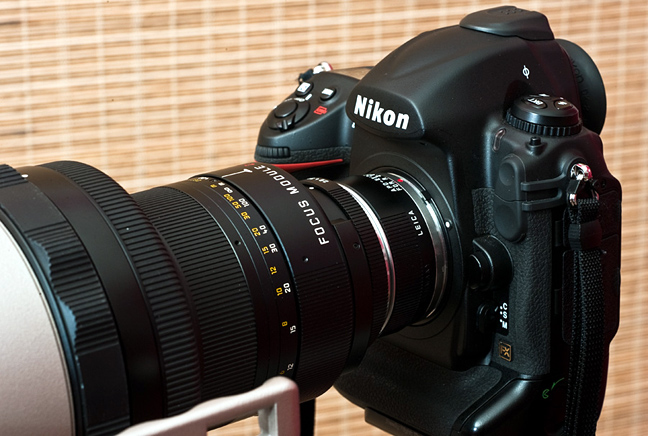

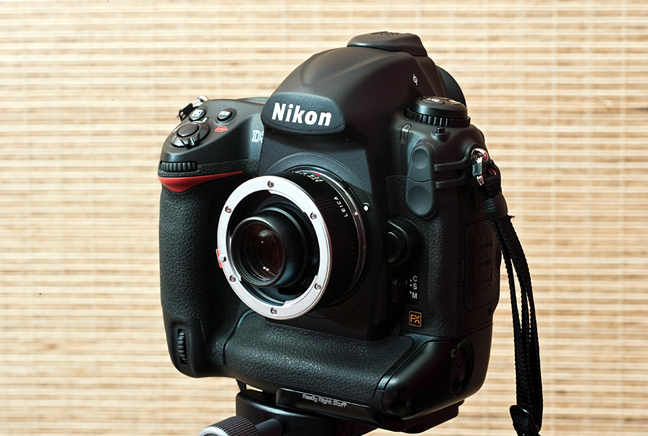

This is how it looks on the Nikon camera, anyway Eric recommends to mount the Extender on the lens first.
at work

The Leitax bayonet at work
...
big

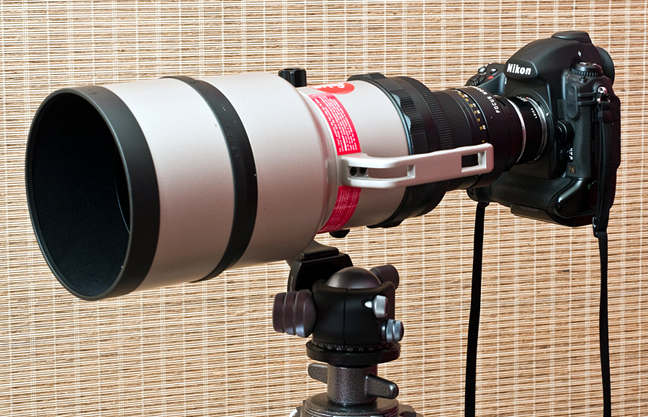

...on the
Leica APO-Telyt-R 400mm/f2.8 modular lens.
Apo-Telyt

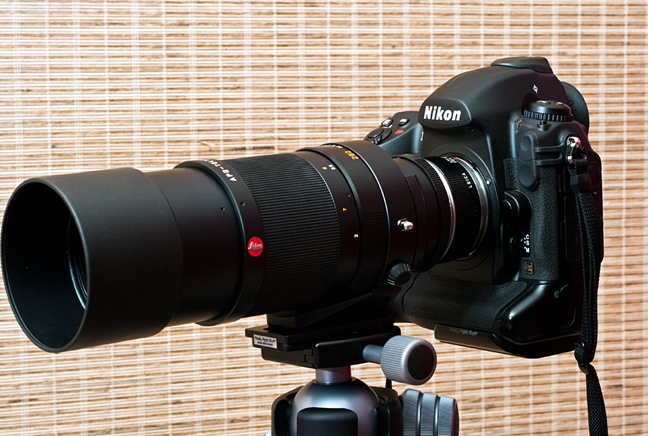

And this one is the magnificent APO-Telyt 280/4

Thanks again to

Eric Tam
Photography

for the great pictures of the conversion
