1








Thanks to our customer and friend Stuart, we can take a look at the Leica-R Apo-Extender 2x
conversion to Nikon mount.

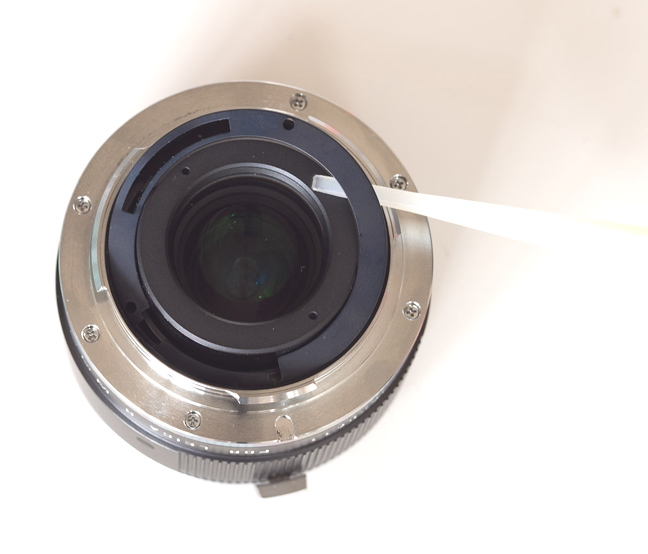

First, we have to unscrew the black shroud and remove it.
We may have to bend this baffle to remove it.
2

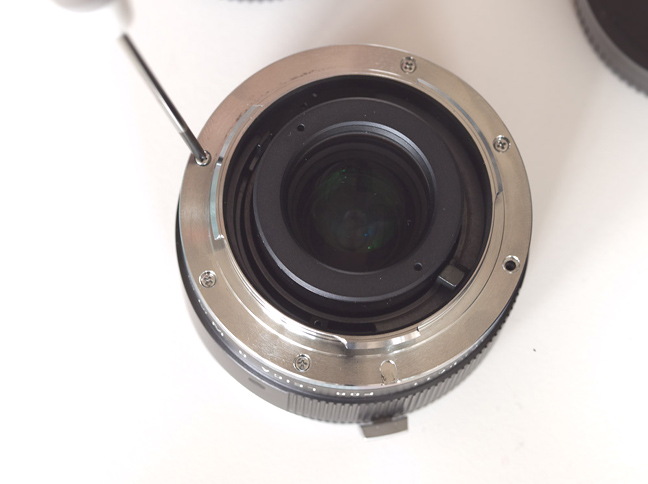

Now unscrew the Leica-R bayonet.
3

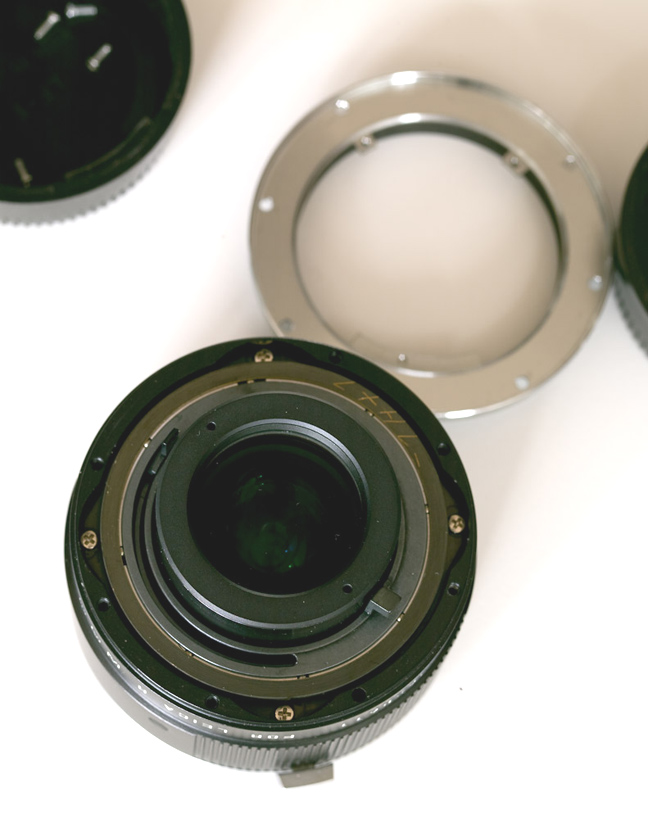

The Leica-R bayonet is out. There is no small ball bearing or cams to worry about.
4

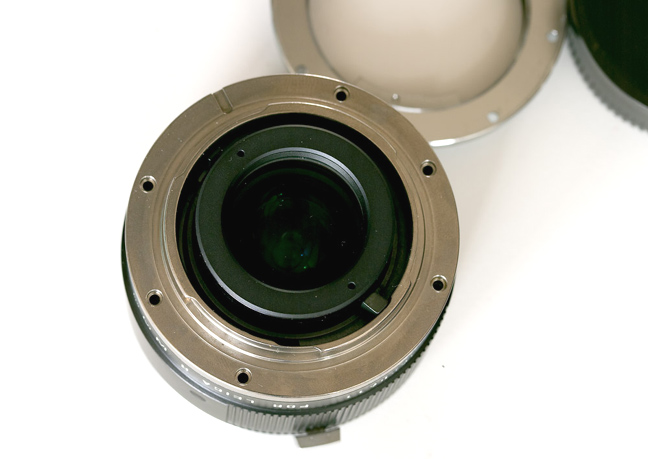

Now, install the Leitax bayonet
.
5

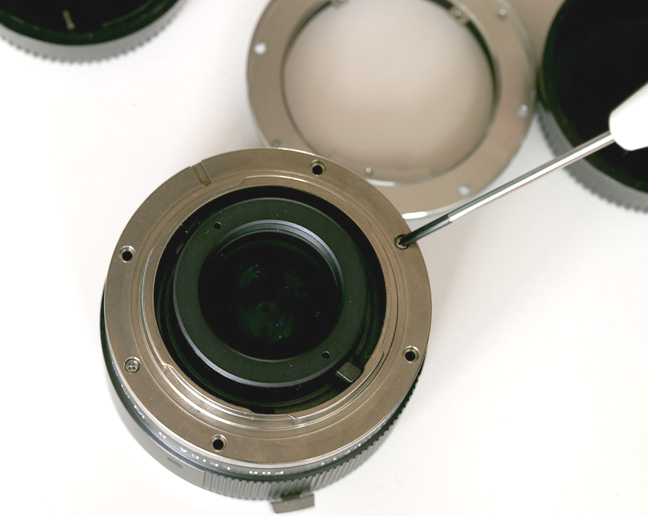

And screw it, turn the screws a bit one after another, in a cross pattern
.
6

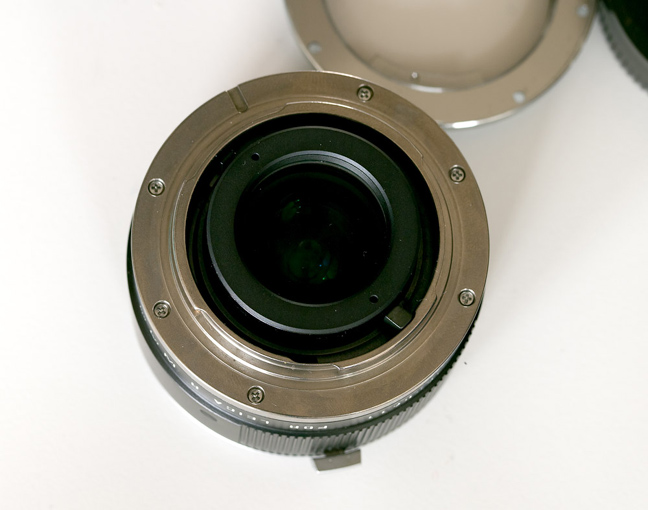

Ready
.
7

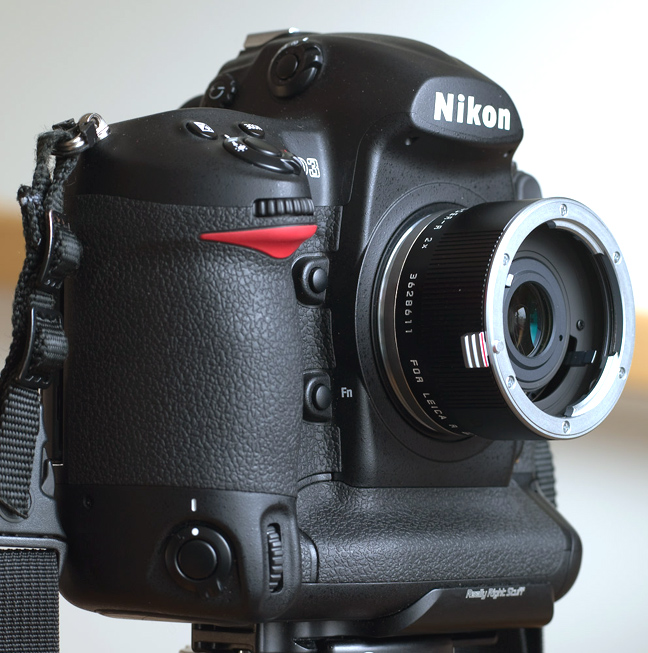

The Apo-Extender on a Nikon D3.
8










And here a 360/5.6 Leica lens.
The Apo extenders are famous for not degrading the image quality at all.



Thanks again to Stuart for this great picture series.
