Elmarit 19

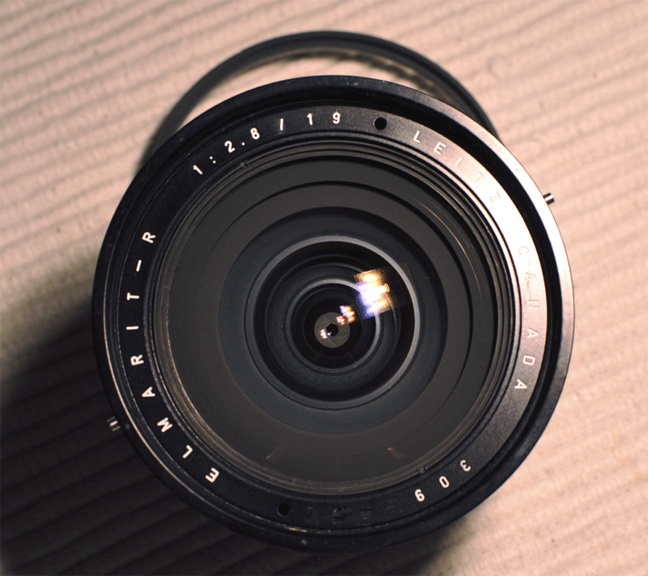

This is the first version Elmarit 19mm f:2.8
Our customer and friend Howard took pictures of the conversion to share with us.

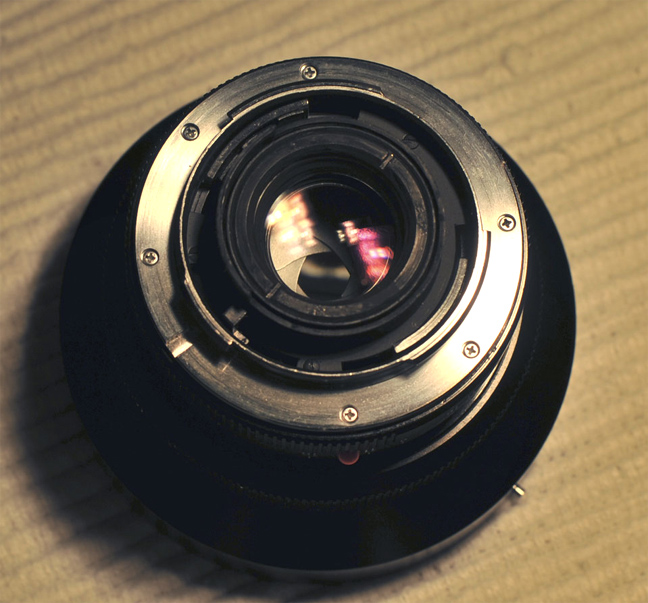

3-cam
















This one is a 3-cams model.

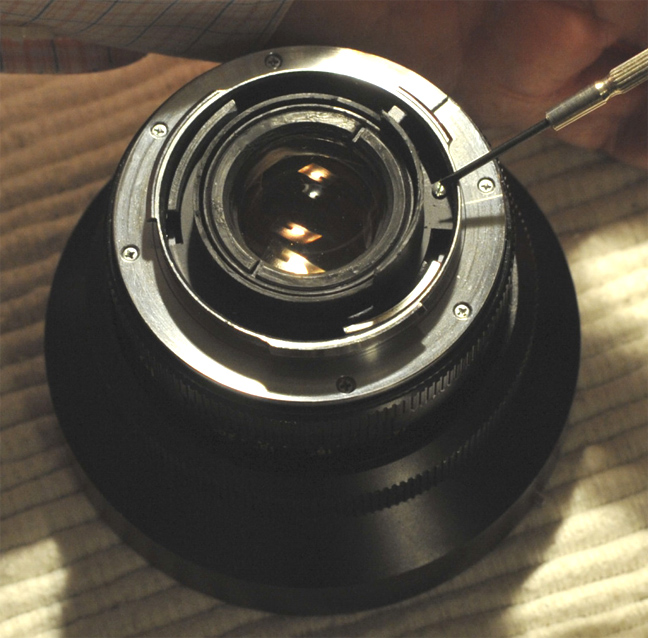

unscrew black ones
















First, unscrew the black shroud screws

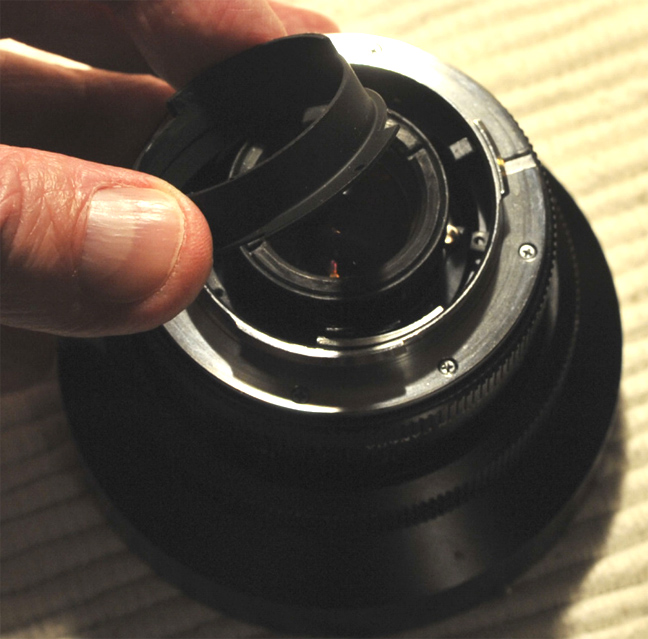

Lift

















And remove it.

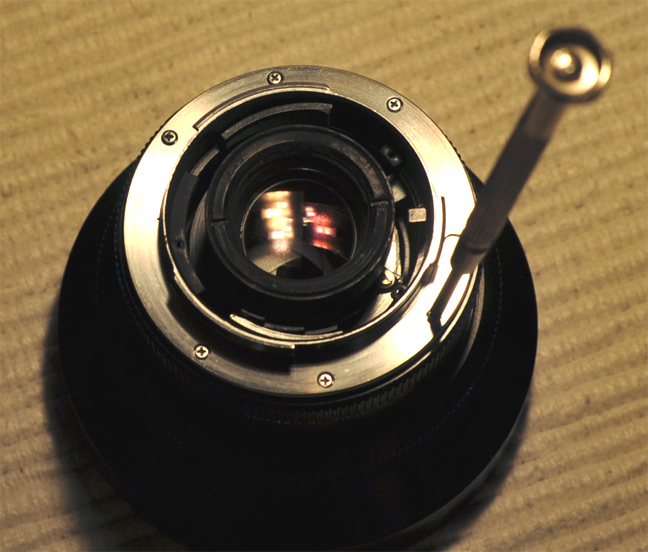

unscrew
















Now, we can unscrew the bayonet.

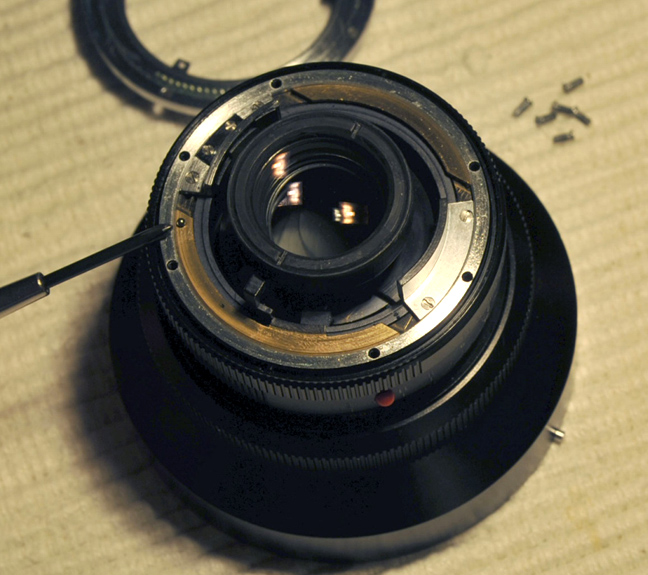

ball














Remove it and search for the small ball.

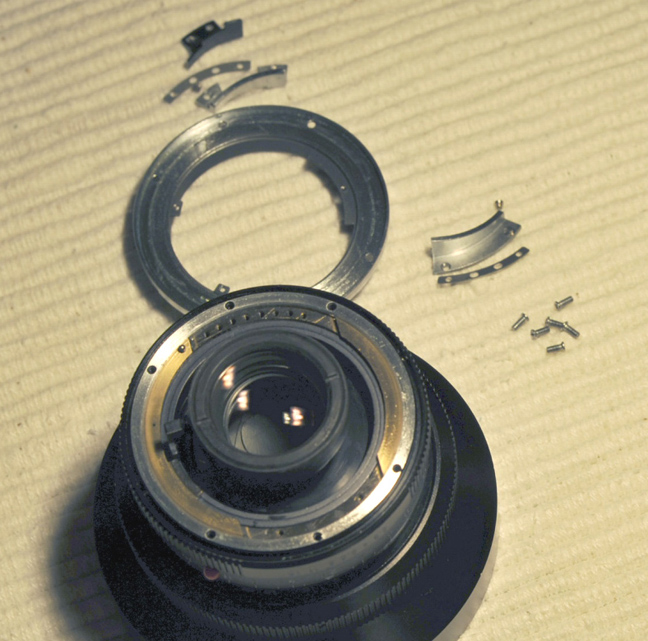

remove cams
















Now unscrew and remove the two clear metal cams, it is not necessary to remove the black one.

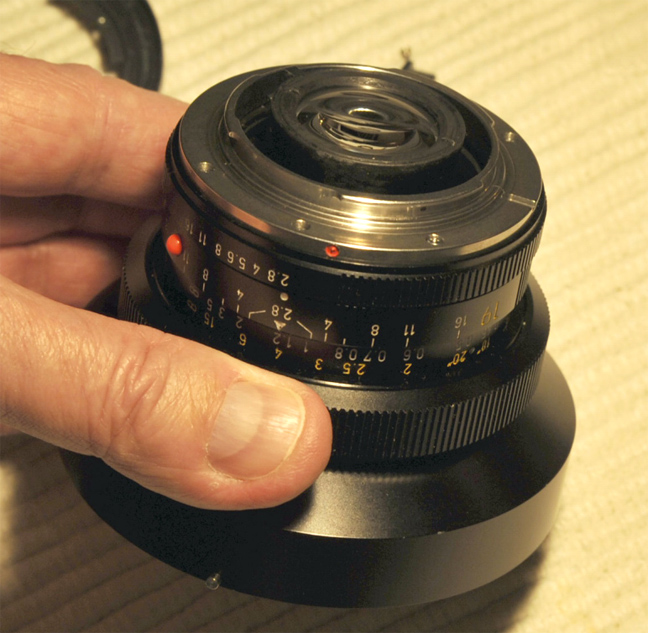

new bayonet













After greasing the bearing ball location, we can install the new bayonet.

Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center for Pentax, and slightly to the right for Nikon.

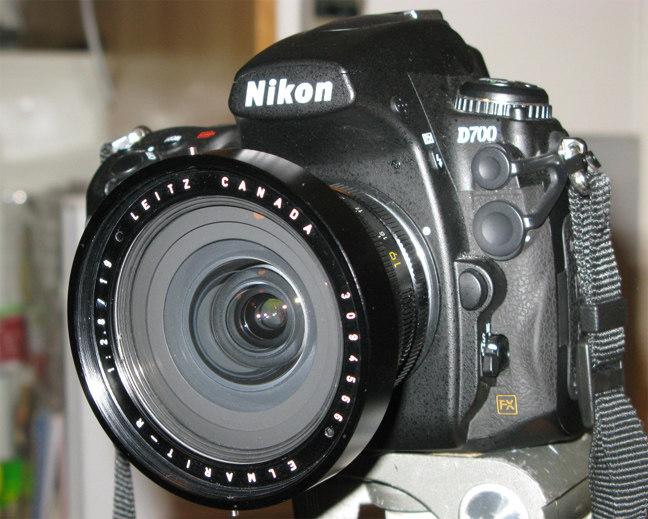

camera













With the Leitax bayonets, now we can use this lens on Pentax and Nikon cameras.

I wish to thank again Howard for these very helpful pictures
