Don't hesitate to ask any question to firstname.lastname@example.org

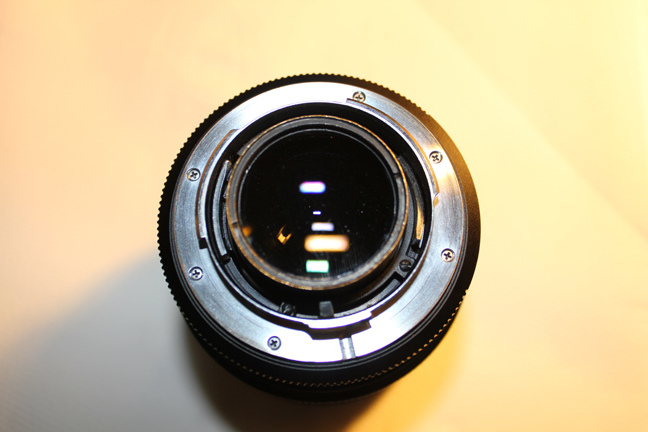

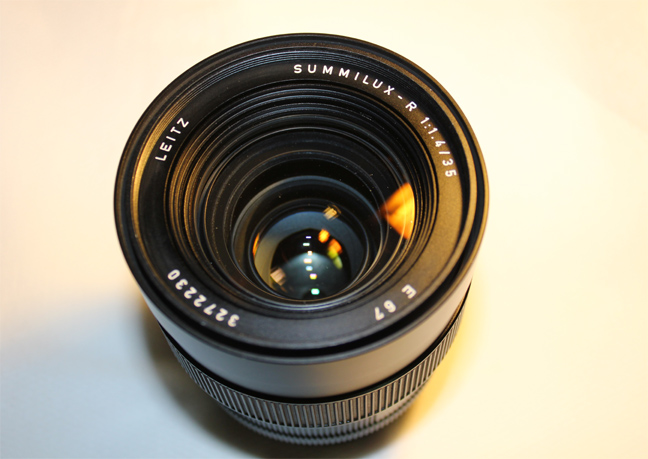

|This is the Summilux 35/1.4|
|This one is the 3-cam version.|

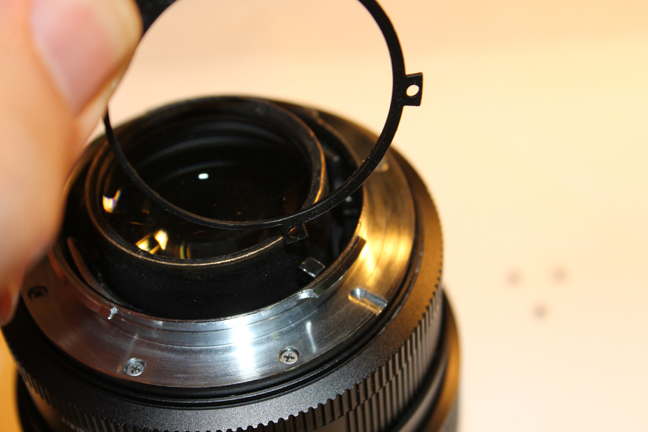

|We have to remove the black shroud first.|

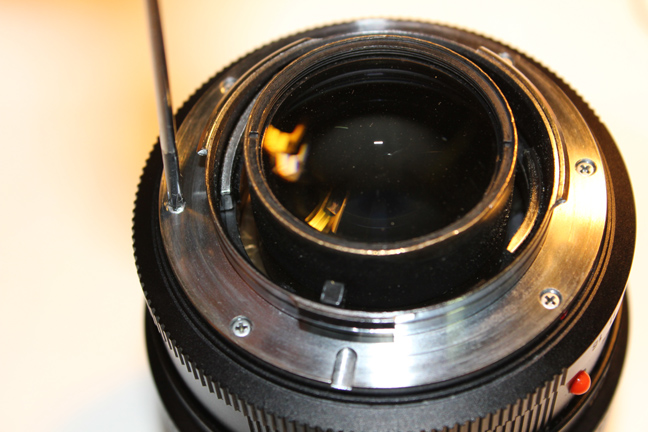

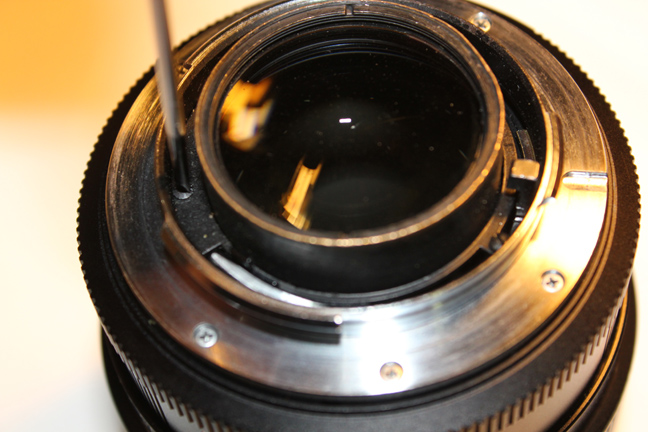

|And now, remove the screws of the original Leica-R mount.|

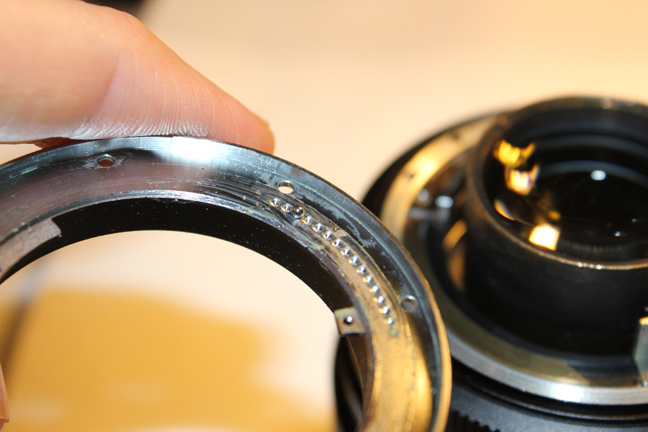

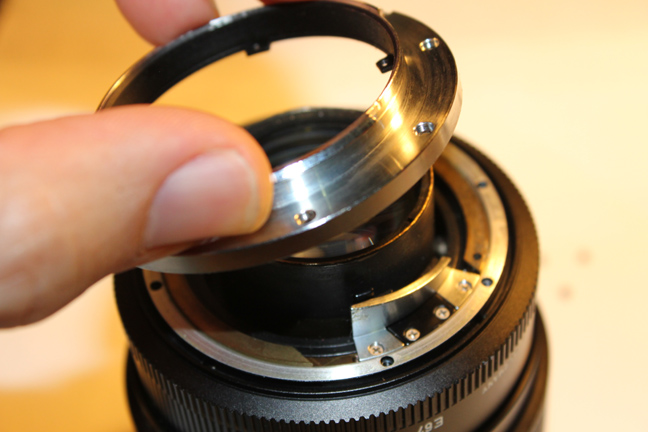

|Lifting the mount.|
|Pay attention to the small bearing ball, sometimes it remains glued to the mount.

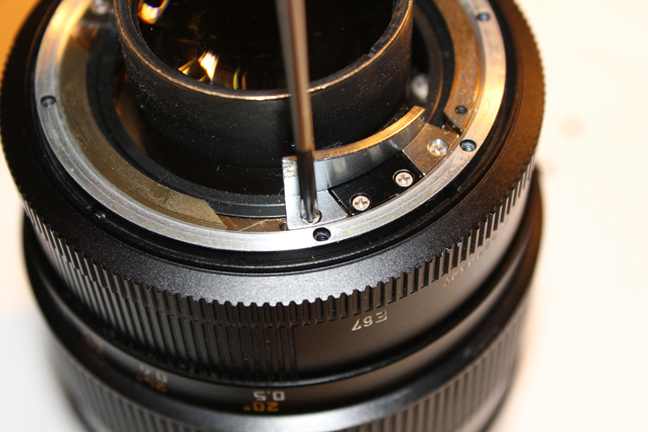

|Now, we have to remove the two slope shaped cams.
The ROM version of this lens doesn't need to remove any cam.
|I use to put some grease in the hole where the small bearing ball goes.|

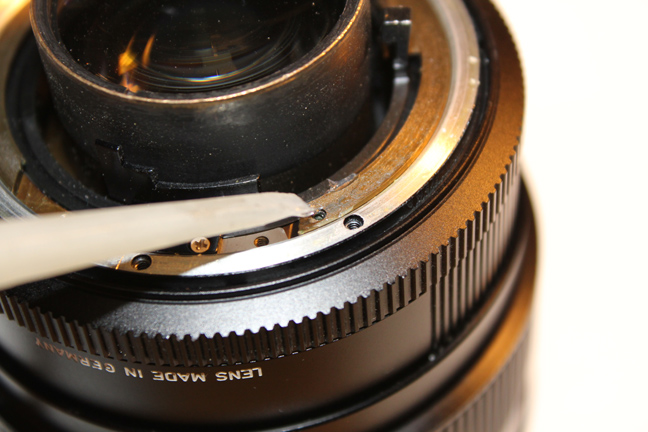

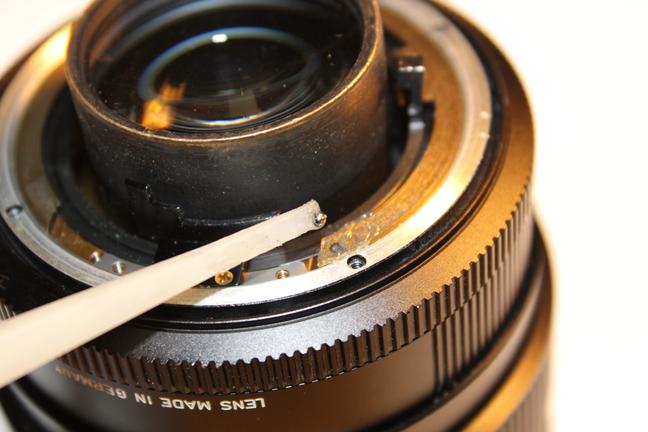

|And the plastic tool with some grease to bring the ball to the lens.|

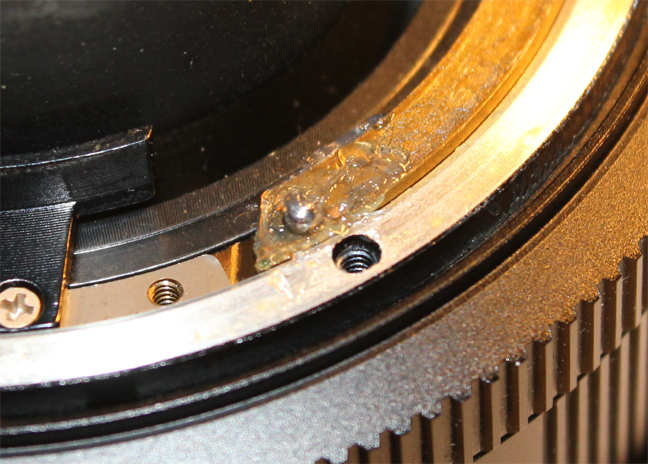

|This is the place.|

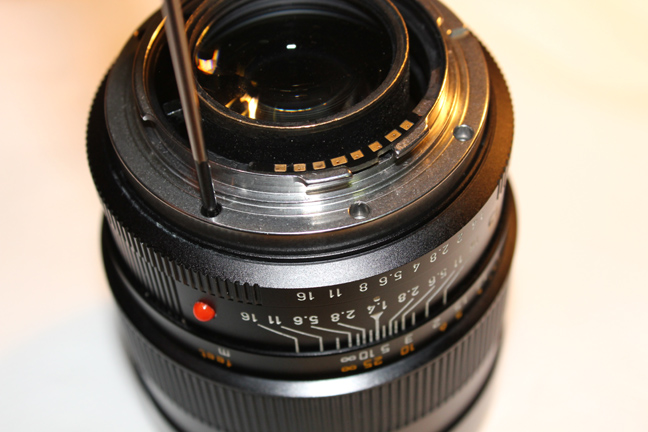

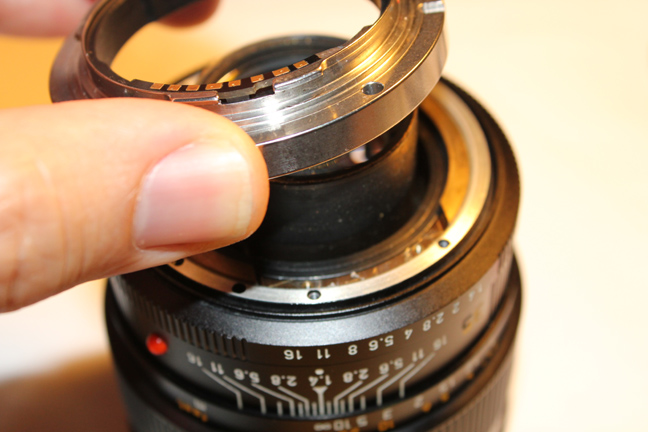

|Now just install the Leitax mount , pay attention to make coincide the holes for the screws.|
|This one is the version for Sony cameras.|

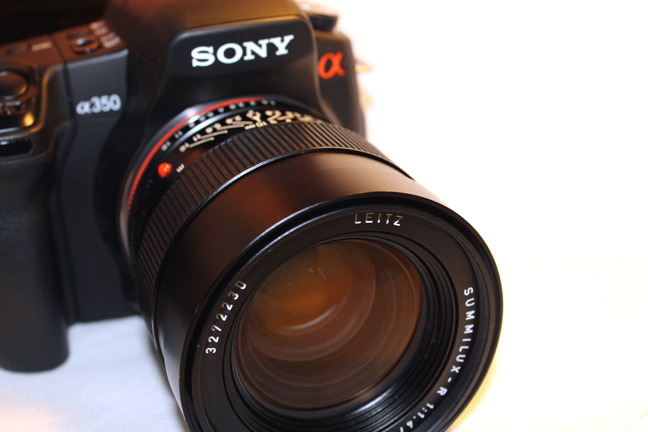

|Ready, there is no problem to use this lens on full frame Sony cameras.|
But the Nikon full frame cameras will hit the mirror with the rear side of this lens. It would be necessary to file it.
|One of my clients kindly sent these pictures to share the way he filed the lens rear side.|

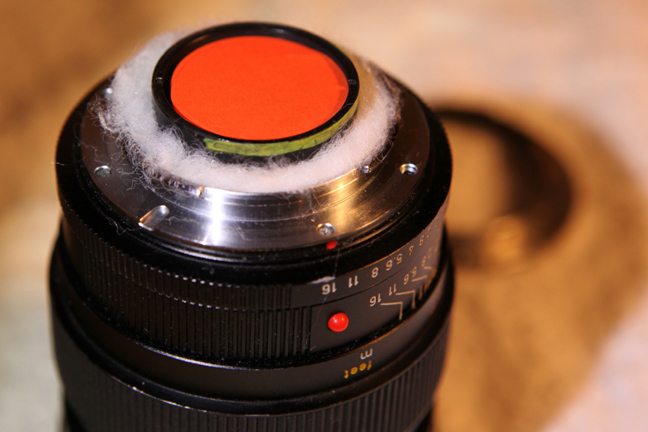

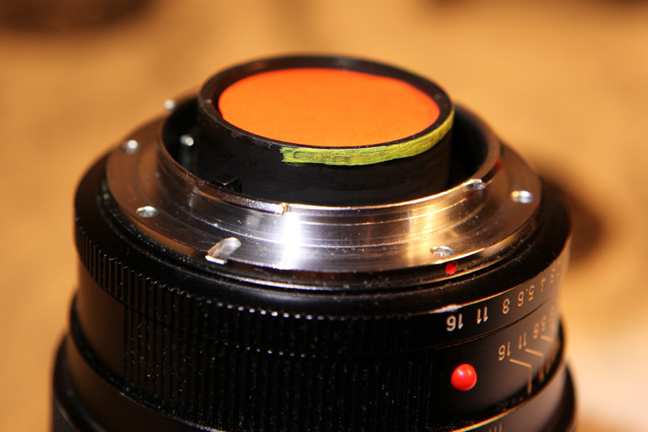

|First, protect the glass with a piece of plastic.|

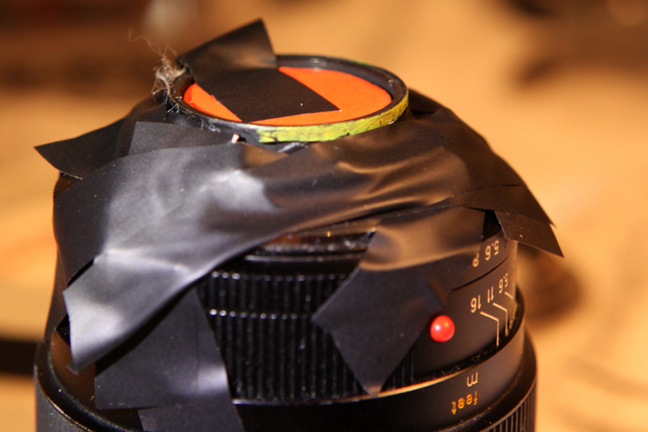

|Sealing the lens to avoid any metal particles going inside.|
I would use paper masking tape instead. To avoid glue residues.

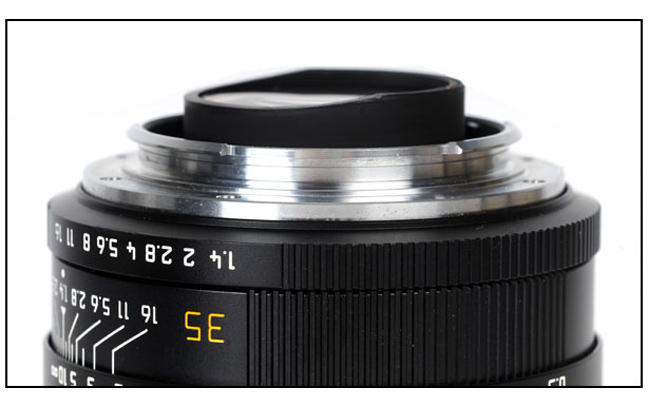

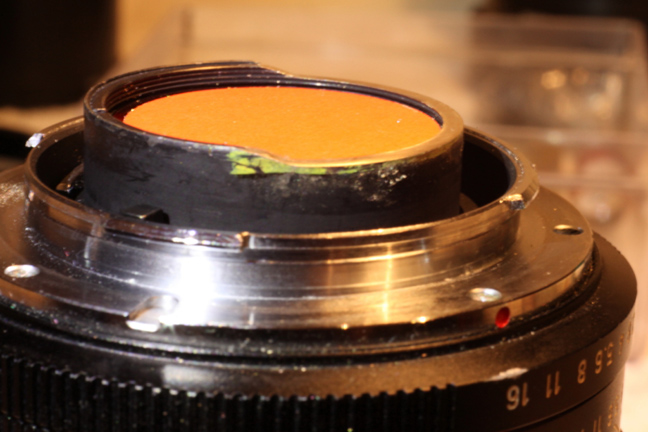

|This is the result.|
|This is a picture from another client.|
