Super Angulon

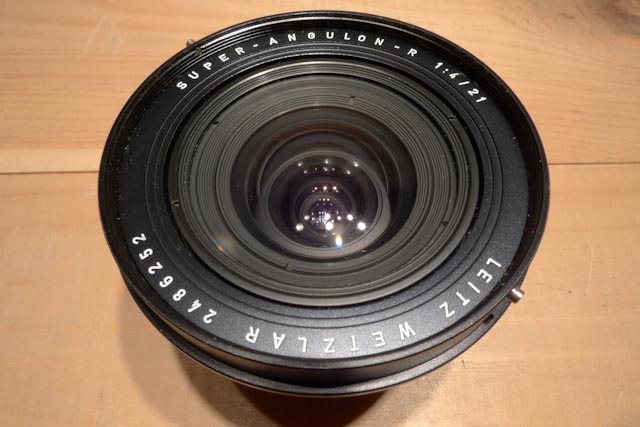

This is the Leitz Super Angulon 21/4.
Our client and friend Eric,
took pictures of the whole process to share them with us.

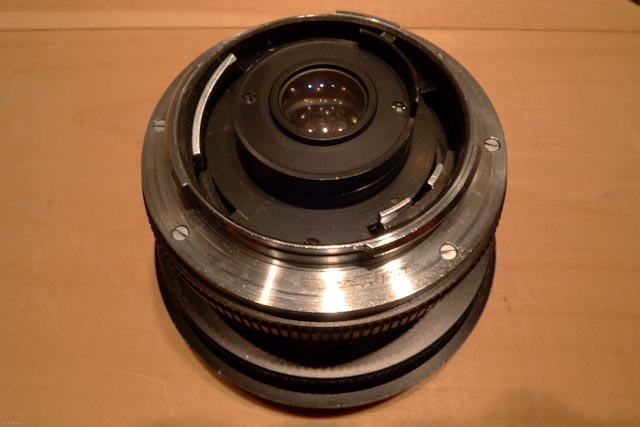

3 cams

















You can see the three cams.
bayonets

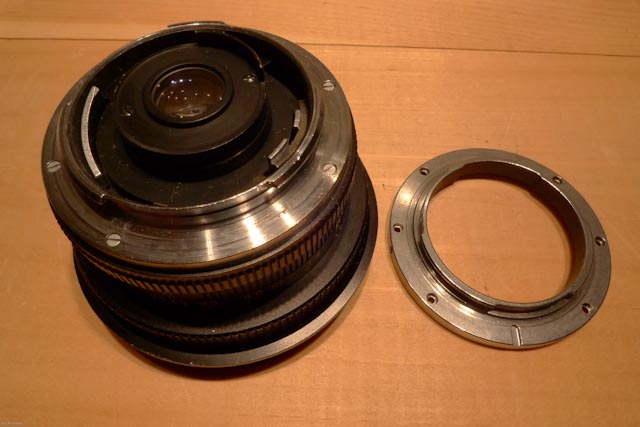

Here we have the replacement bayonet.

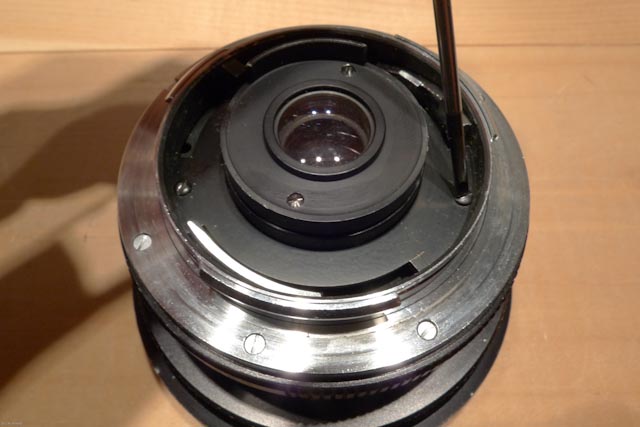

unscrew
















First, unscrew the black shroud.

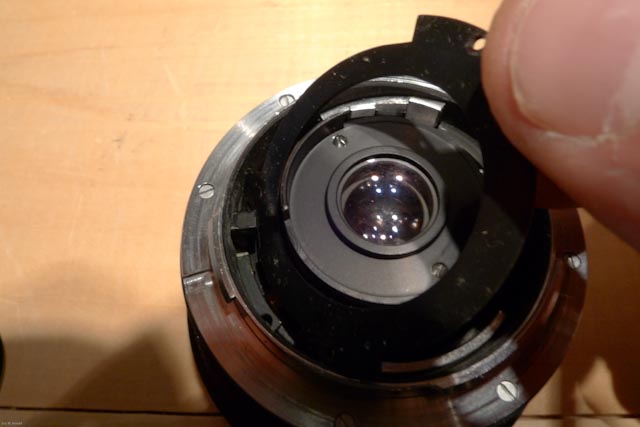

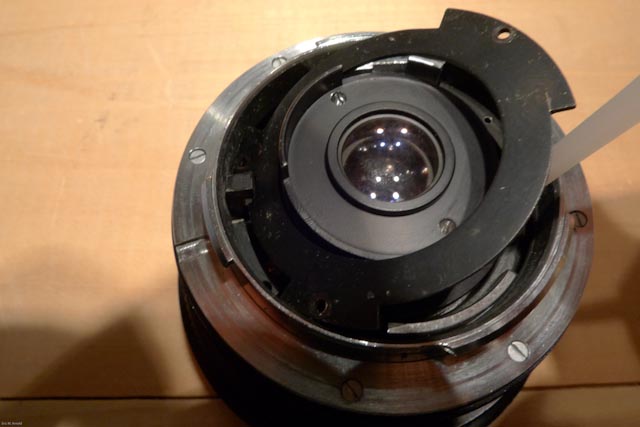

lift it















Now lift this side of the shroud. Help yourself with the plastic tool.
remove
















This way, it can be removed

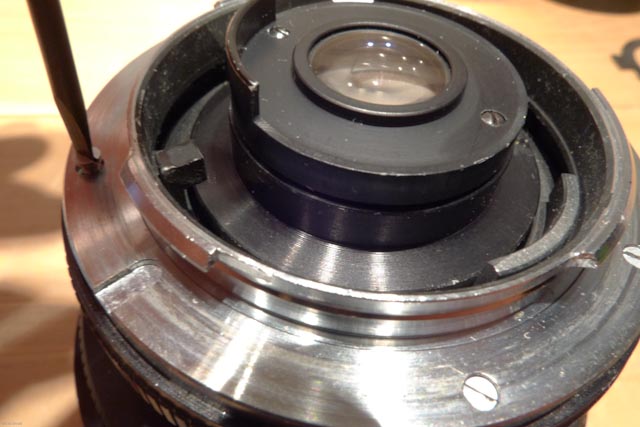

unscrew














Unscrew the bayonet, remove it and search for the small ball.

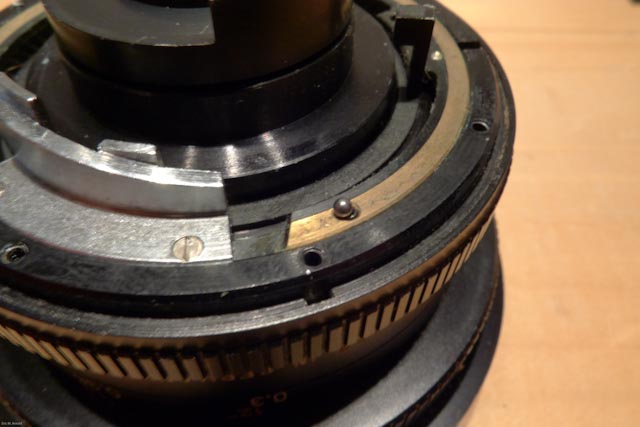

ball















This time, it remains at its place.
save

















And save it, we will need it later.

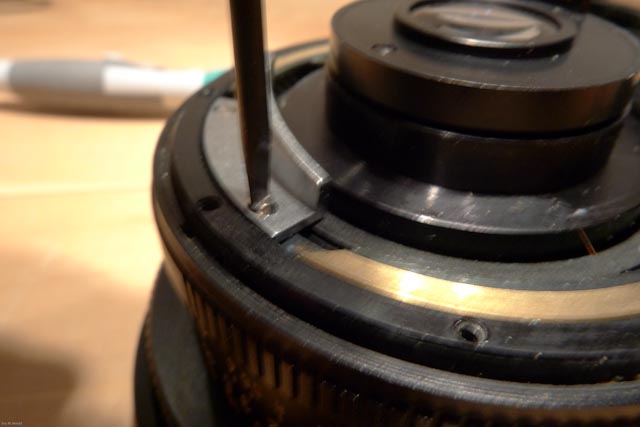

unscrew cams













Now, unscrew the two cams, please take a picture to remember later the place of each one.

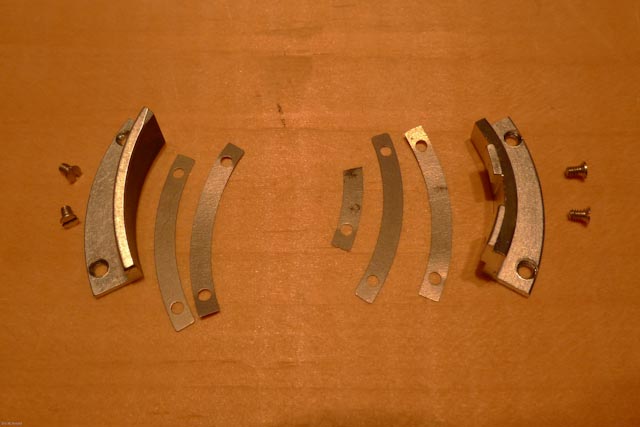

cams










Here you can see the cams and their own spacers, please save them separately.
Look at the cam on the right, it has the third cam machined on it.

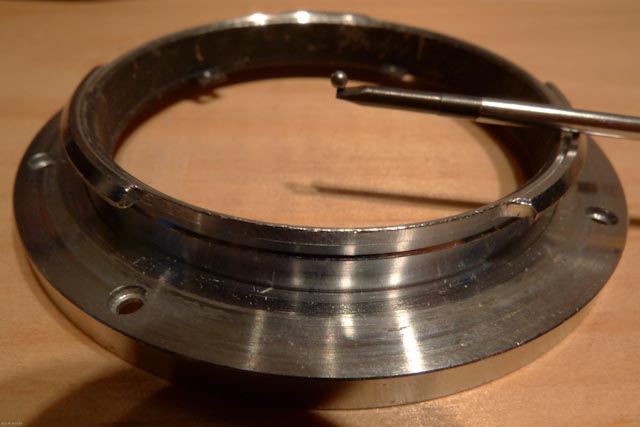

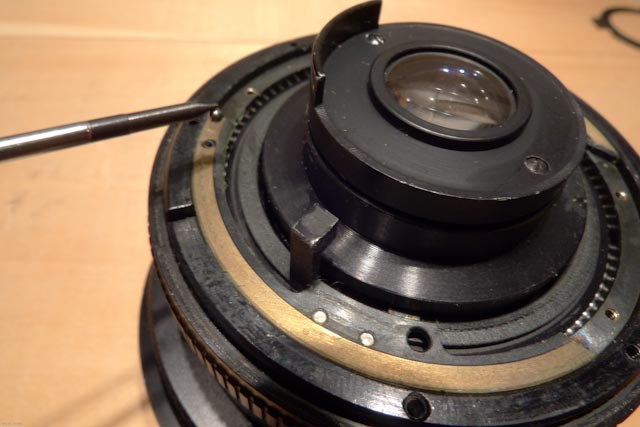

ball









Replace the small bearing ball, please put first a bit of special grease in the spring hole where the ball goes, and some grease on the ball too.

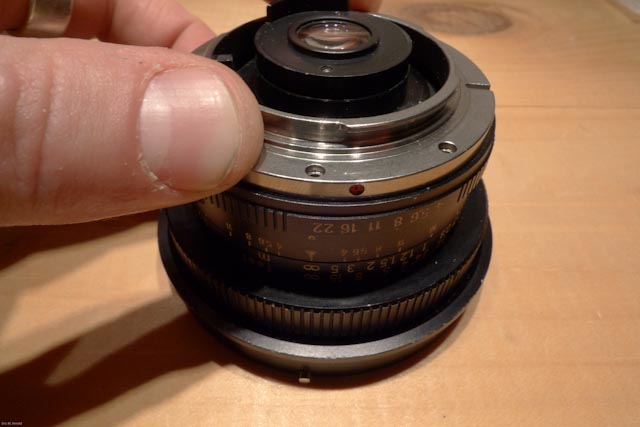

Install the bayonet









Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center for Pentax, and slightly to the right for Nikon.

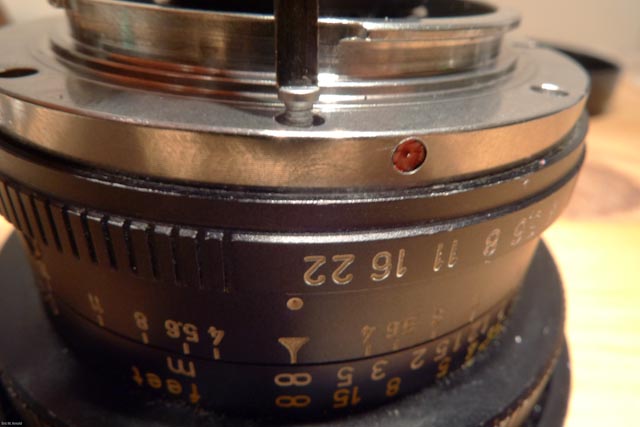

screw














And screw it
, please tight the screws in cross pattern .

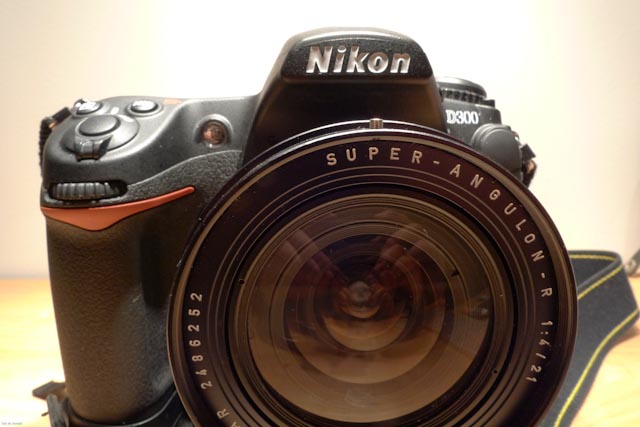

camera


Now we can use the Super Angulon on Pentax and Nikon cameras.

I would like to thank again Eric for his help.
He is manager at Hunt's Photo,

Manchester, NH location
Hunt's
