Apo-Macro 100/2.8

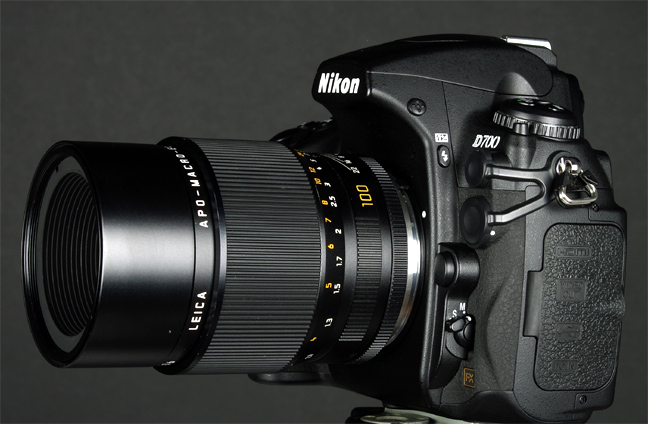

This is the Apo-Macro Elmarit 100/2.8 . Perhaps, the best macro lens ever made.
3 cams










It is a 3 cams model.

These instructions are valid for the ROM version too, just that there are no cams to remove.
descargolar negres

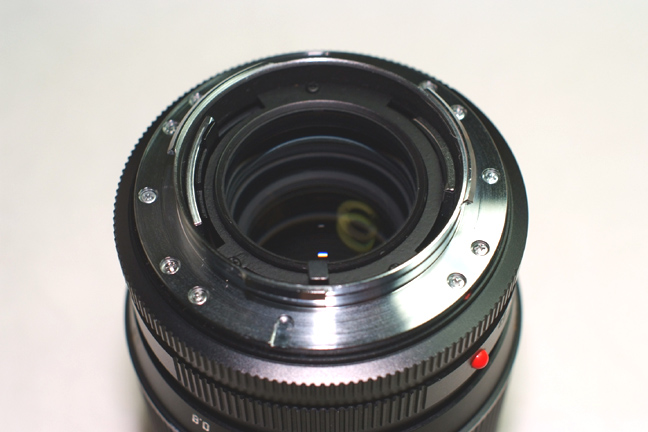

First, remove these 3 black screws.
empenyer












Now

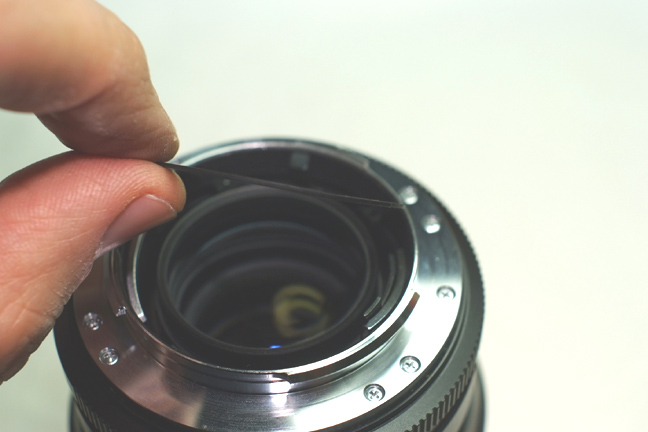

turn a little bit the black shroud  this way, using the plastic tool, you will not make any scratch.
lift cover
















This way, it can be lifted by this side.
treure coberta













And can be removed easily, don't make any force, just find the right position.
descargolar bayoneta

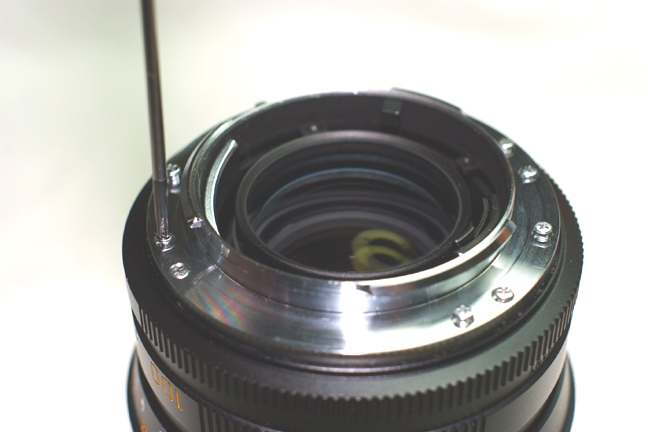

Now, unscrew and save the ten screws.
remove bayonet

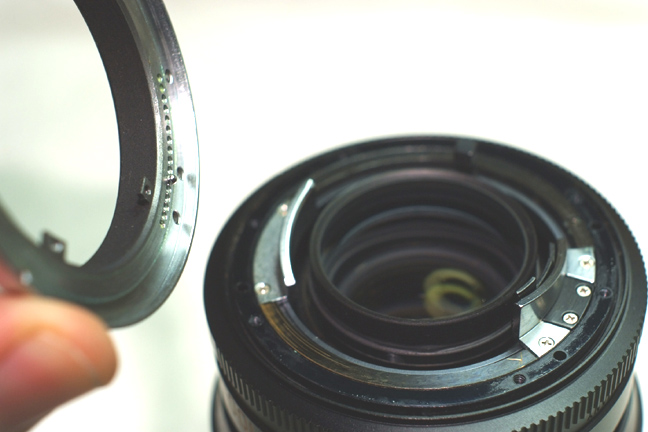

Remove the bayonet just lifting it.
Look for the small ball, sometimes, it remains sticked to the bayonet, put it in safe place for now.
descargolar cams

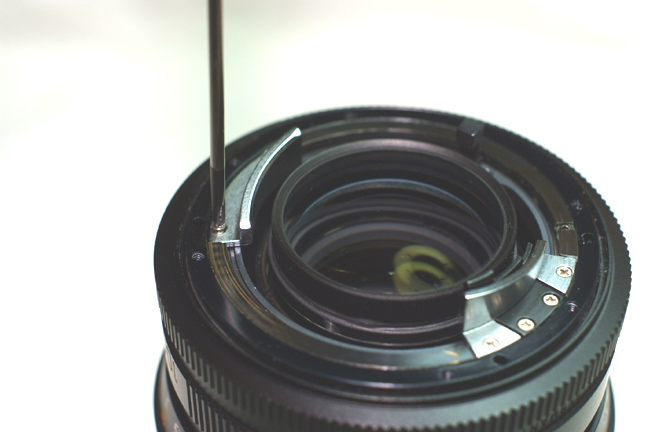

Unscrew the clear metal cams.
cams

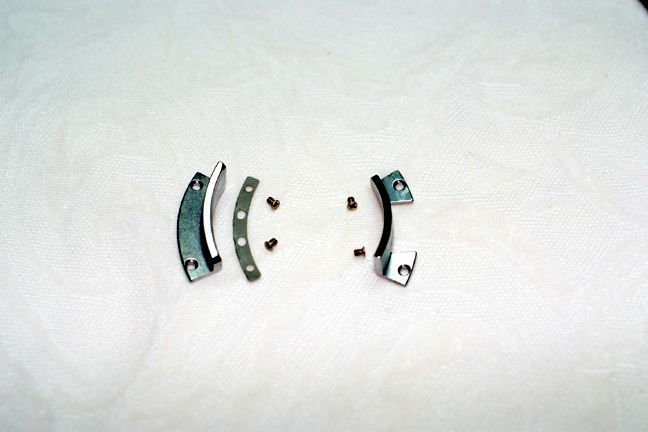

This is what is removed.
greix

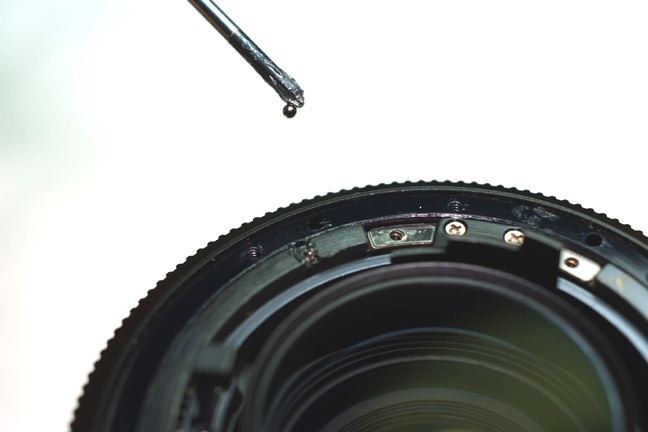

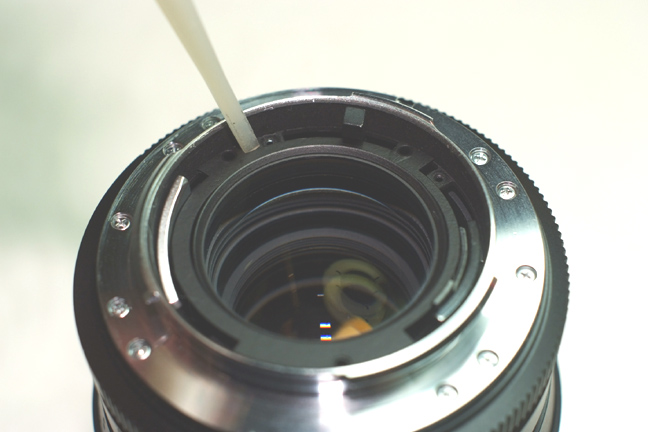

Now put some special grease on the small spring.
bearing

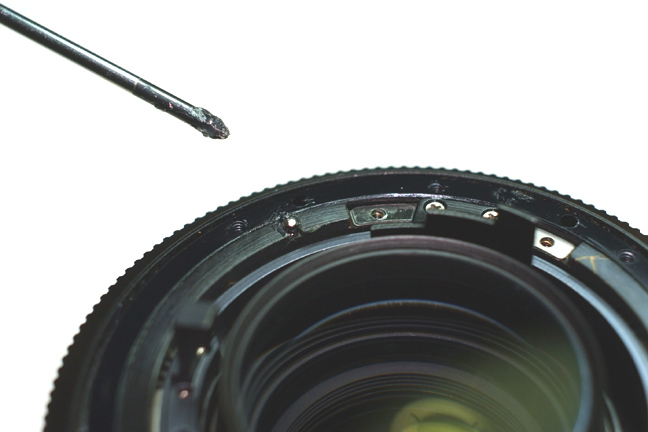

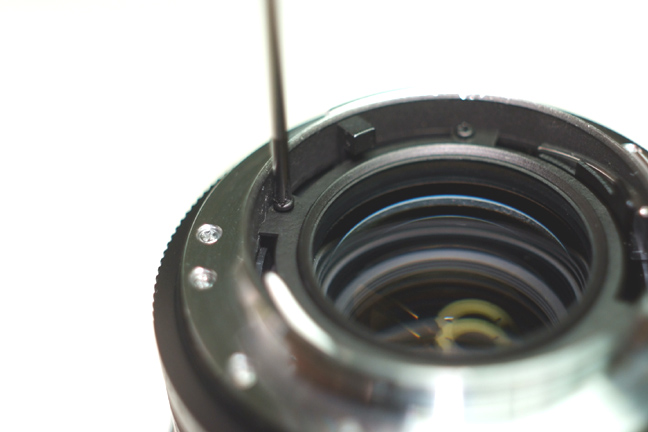

And replace the small ball,  leave a bit of special grease with it.
a lloc

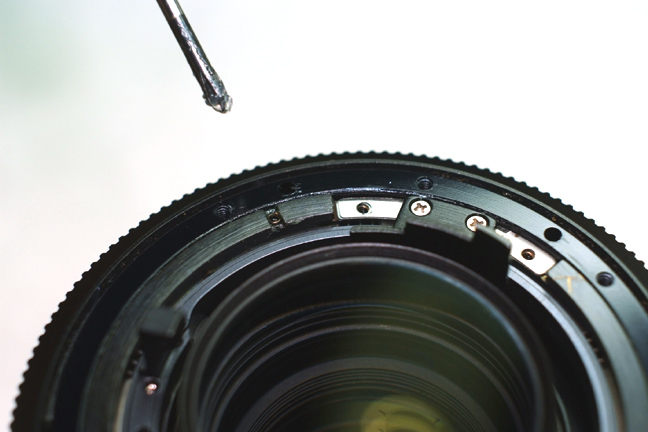

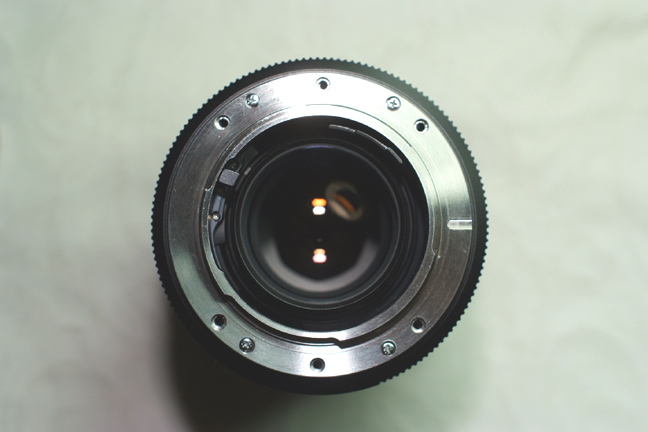

Ball in place
bayoneta

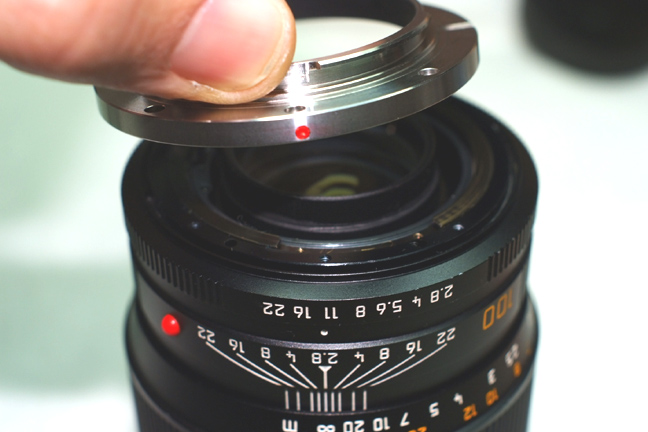

Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center.

The Leica-Nikon bayonet has the red dot slightly more to the right than the one at the picture.
cargols















Remember the position of the screws.
screw










And start with the four longer ones, then the rest and screw them in cross pattern, a little bit each one until they
are all  tight.
Nikon camera




Remember this lens needs the special edition bayonet with ten holes.





Now you can use this jewel on Pentax and Nikon cameras.
