This is the
current version of the
Elmarit 28/2.8
Perhaps, the best 28mm ever made.
2

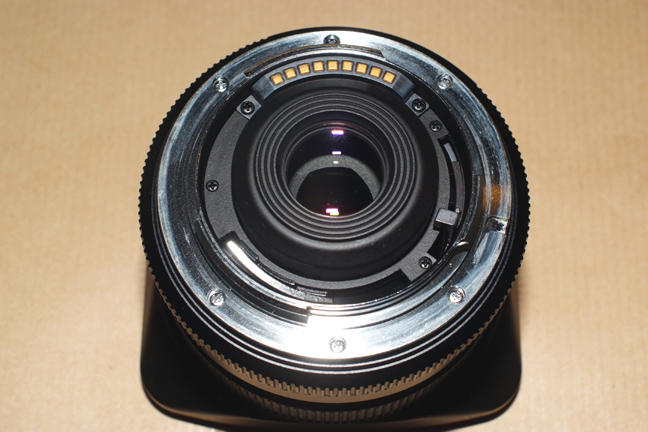

This unit is a ROM model, but it still has the second white metal cam.
3

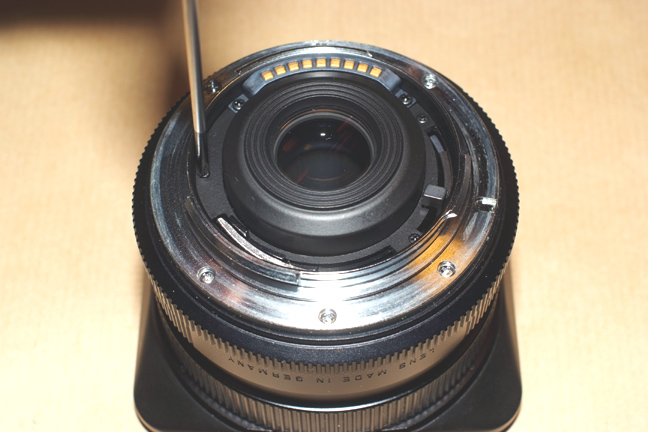

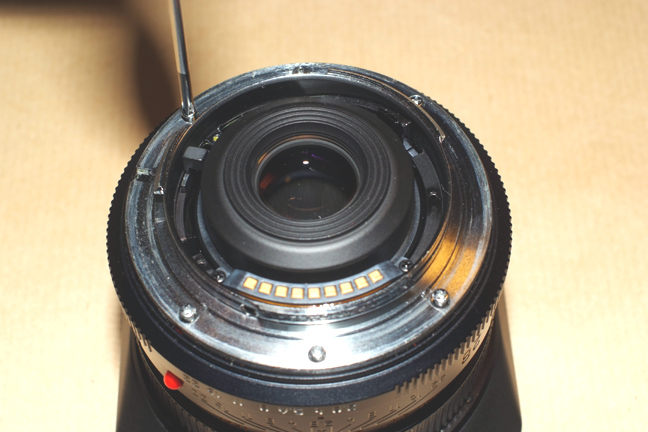

First, unscrew the black shroud screws
4

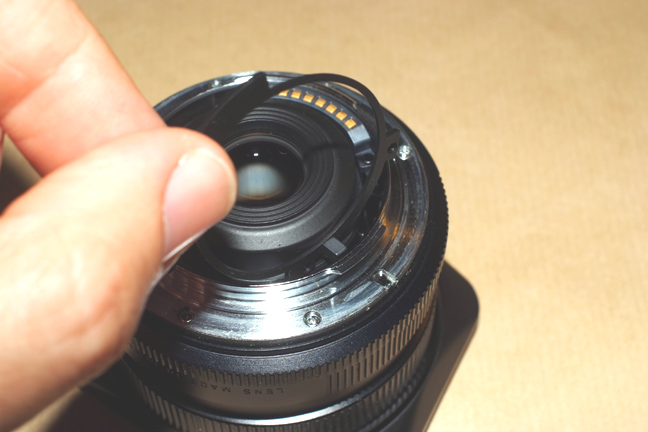

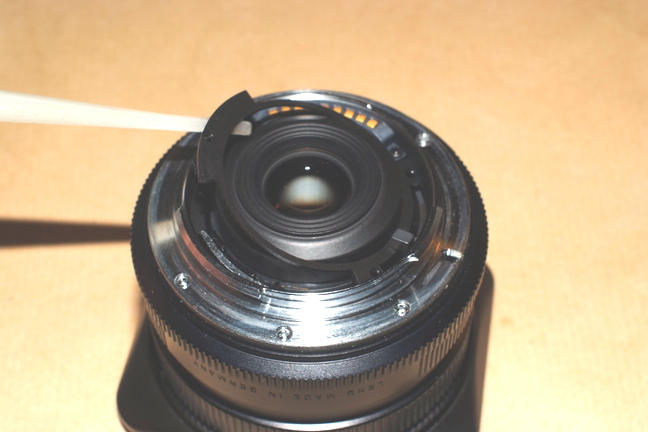

Now lift this side of the shroud with the plastic tool.
5

















This way, it can be removed
5

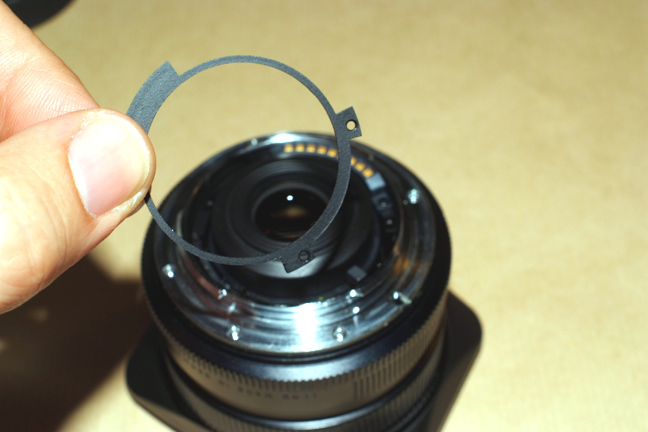

This is the removed black shroud.
7

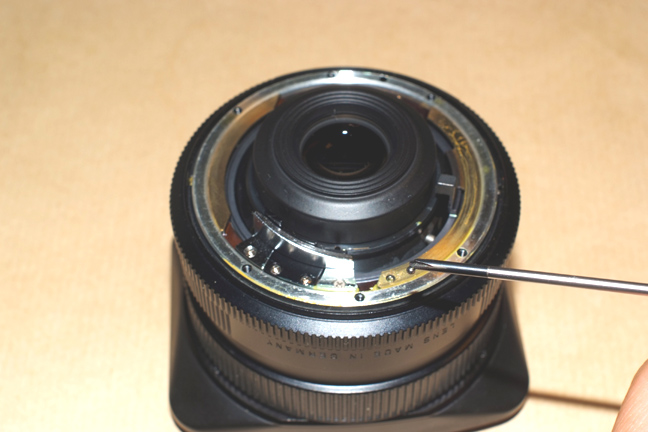

Now we can unscrew the original bayonet
.
8

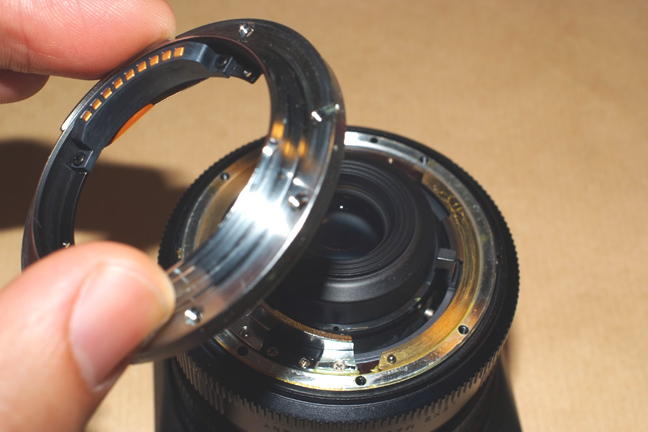

And remove it too..
9

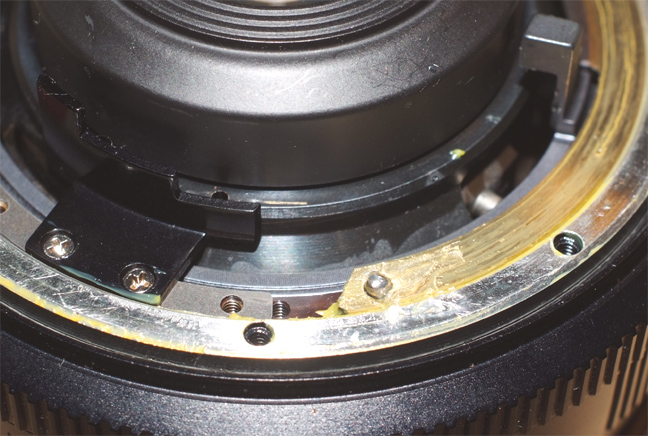

Find the small bearing ball and save it for now..
10

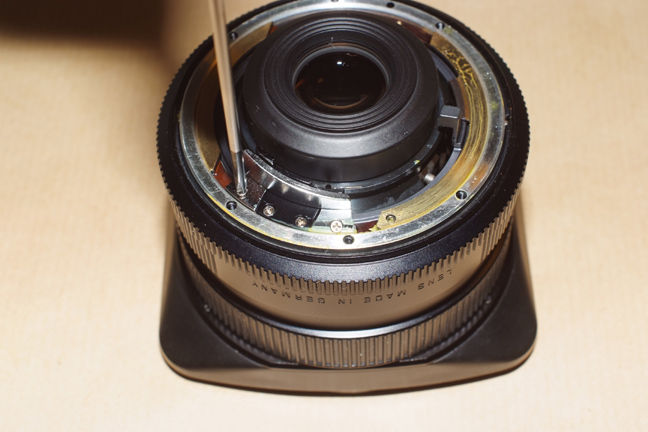

In case your Elmarit ROM has also a bright metal sloped cam, it must be removed.
11

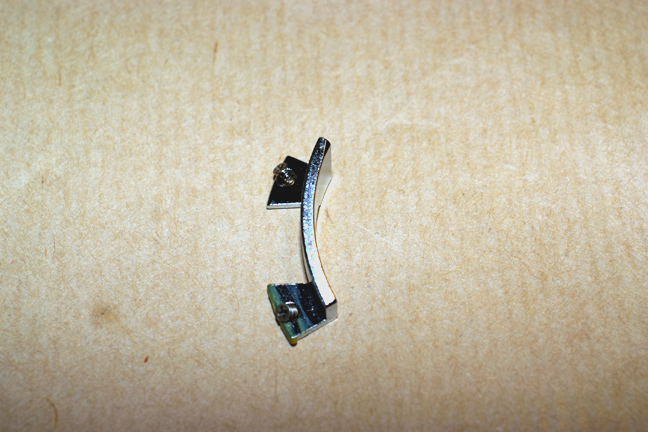

This is the removed cam.
12














Now we can replace the small bearing ball and don't forget to grease it
.
13

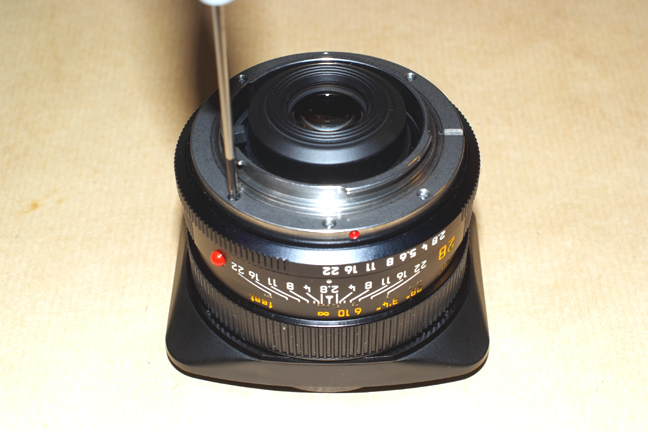

And screw the new Leitax bayonet, the red dot goes near the scale center.
camera
Now we can use this lens on Pentax, Sigma, Sony and Nikon bodies.
