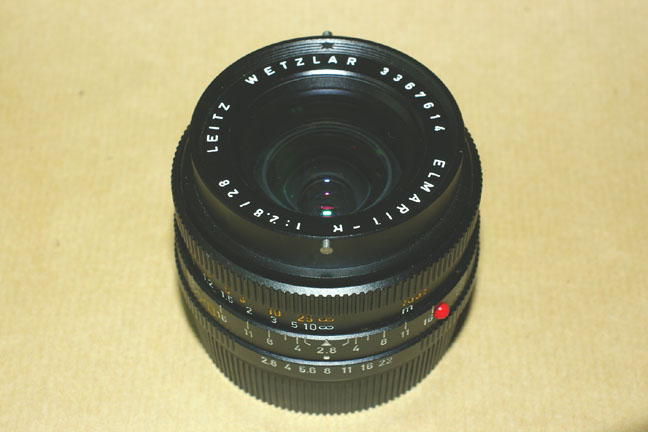

Elmarit 28















This Elmarit 28mm has the R-cam only, so it is a quite recent version.

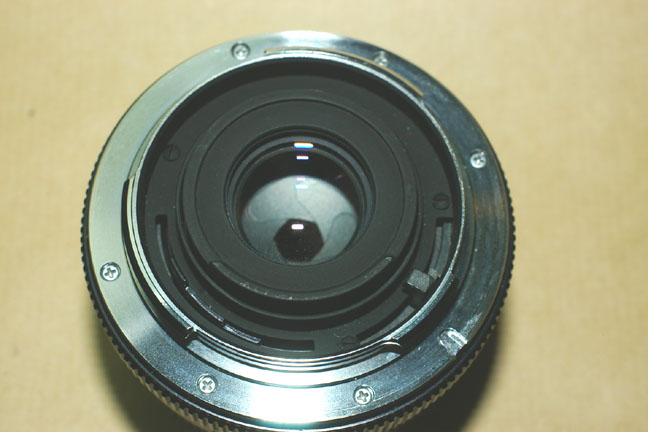

R-cam

















The stepped one is the R-cam

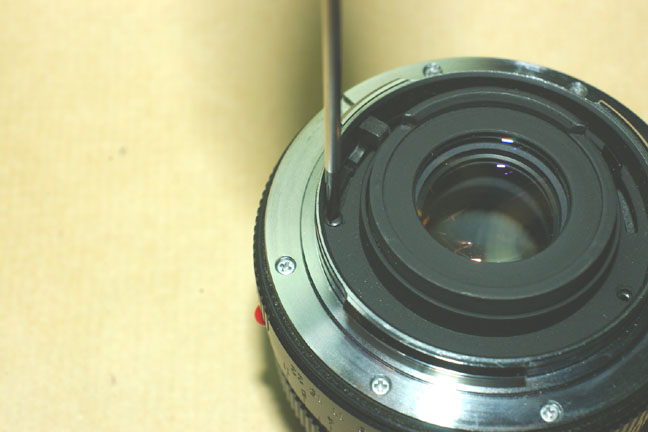

unscrew black ones
















First, unscrew the black shroud screws

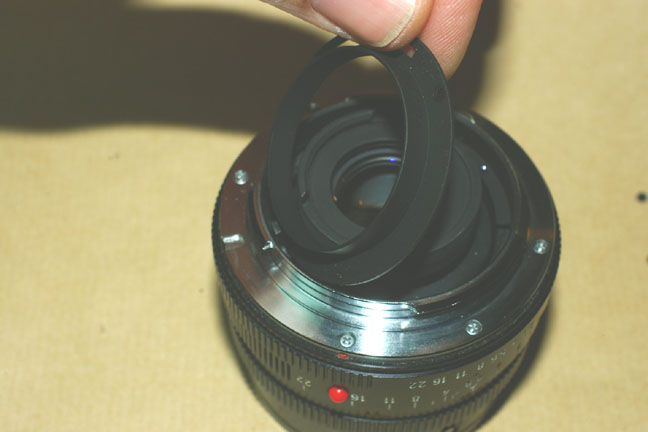

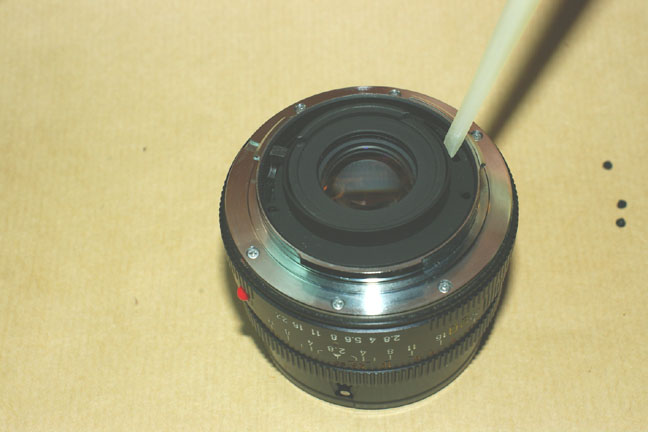

Lift

















Now lift this side of the shroud.
remove

















This way, it can be removed

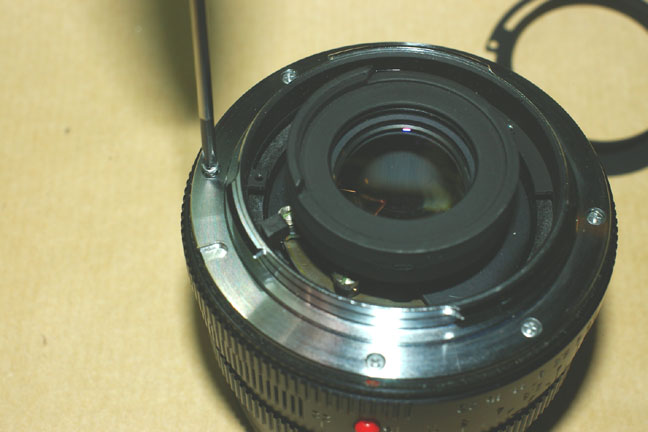

Unscrew















Unscrew the bayonet, remove it and search for the small ball.

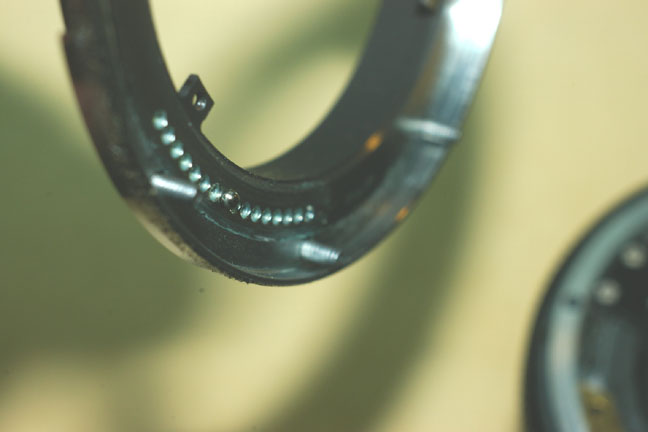

small ball
















This time, it remains sticked to the bayonet.

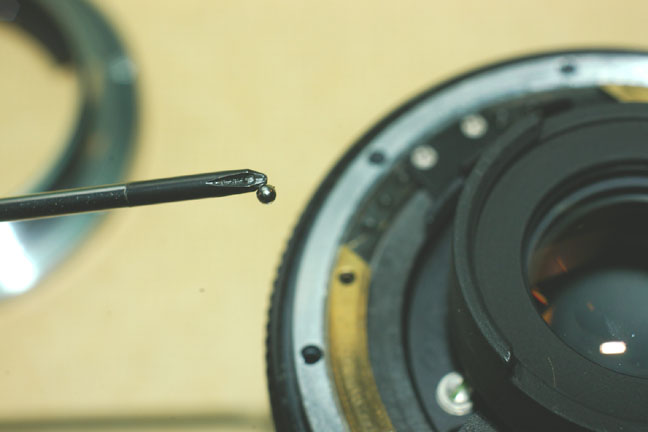

bring it


















Bring it to its place.

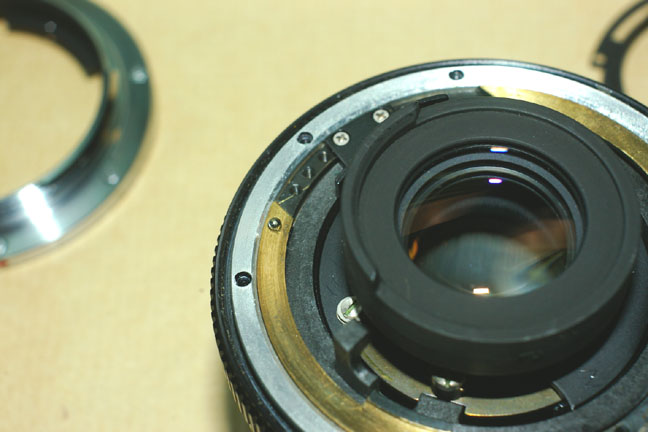

this place
















Put it here with a little bit of special grease on it.

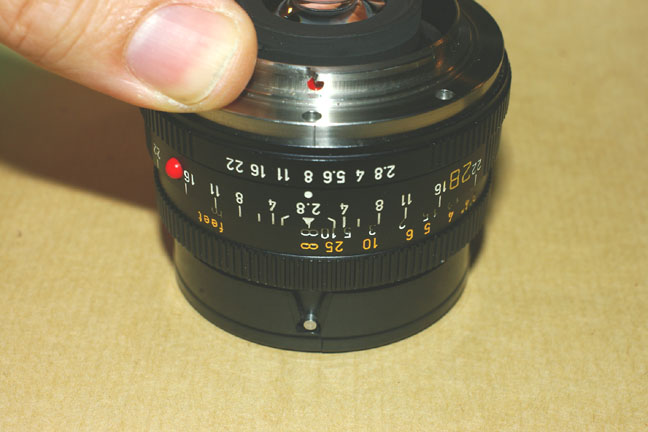

Leitax bayonet






Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center.

The Leica-Nikon bayonet has the red dot slightly more to the right than the one at the picture.

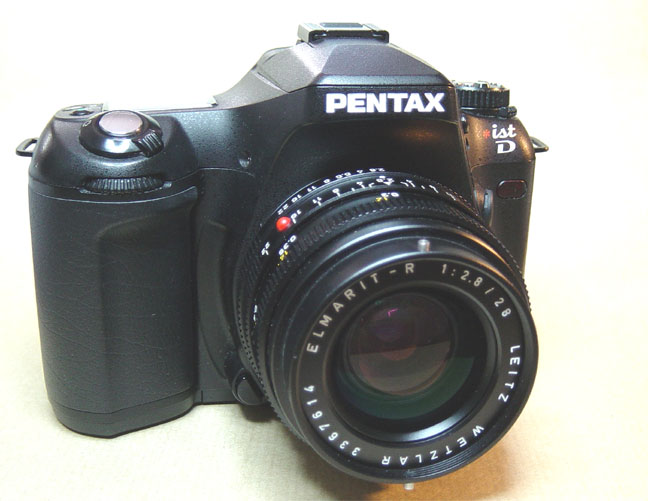

Pentax camera


















And finally, we can use the Leica lens on a Pentax or Nikon camera.
