elmarit 35 2 cams

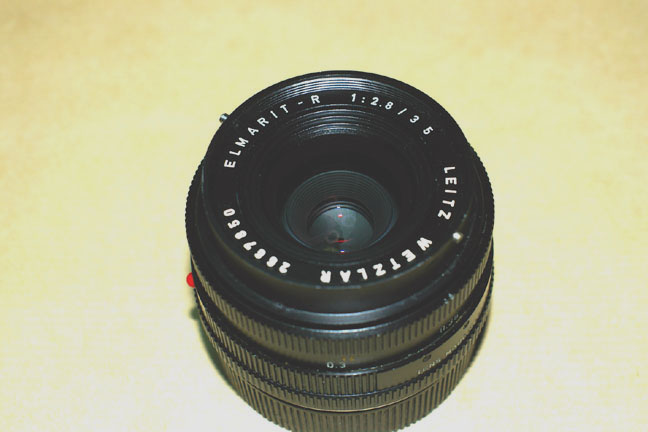

This lens is very interesting, from number 2517857, the second version of Elmarit 35mm has the same optics than the third version
2 cams













This is a 2 cams model, first we need to remove the shroud
's black screws.
cargols fora

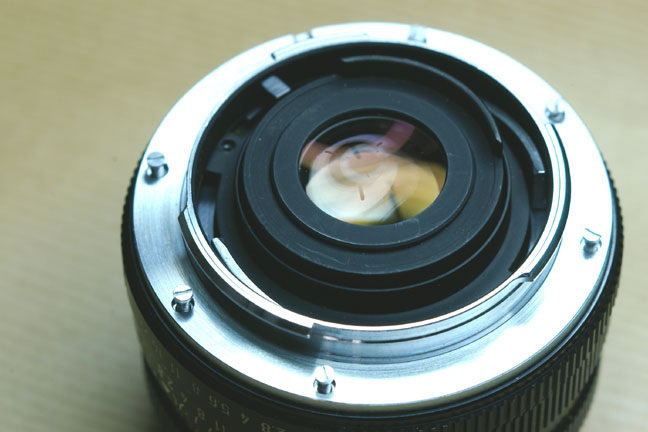

Now, the bayonet screws.
cover

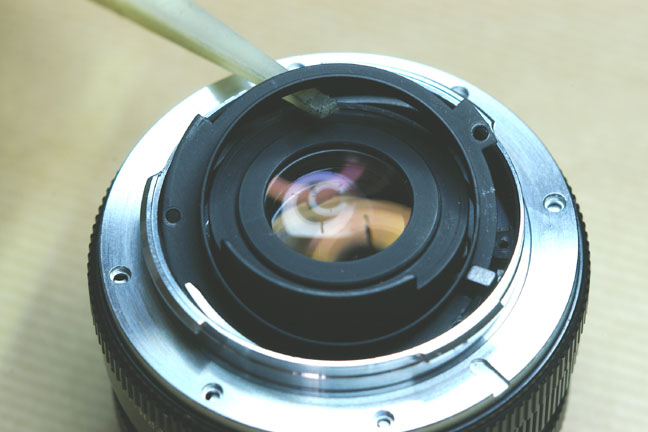

Lift this side of the shroud.
remove

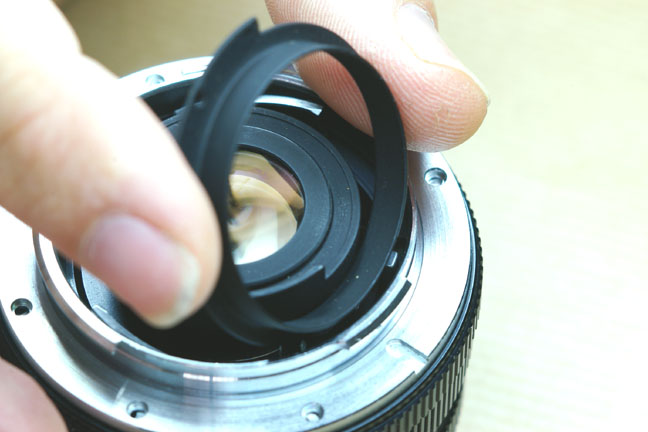

This way, it can be removed.

To remove the black shroud easily, first turn the aperture ring to F22 and the focus ring to 0.3 meters.
bayonet

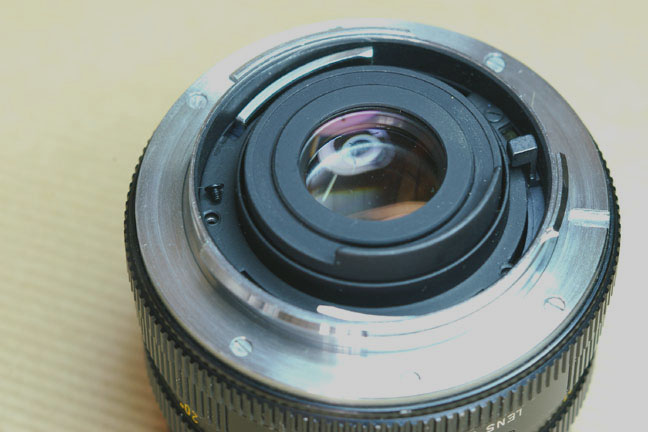

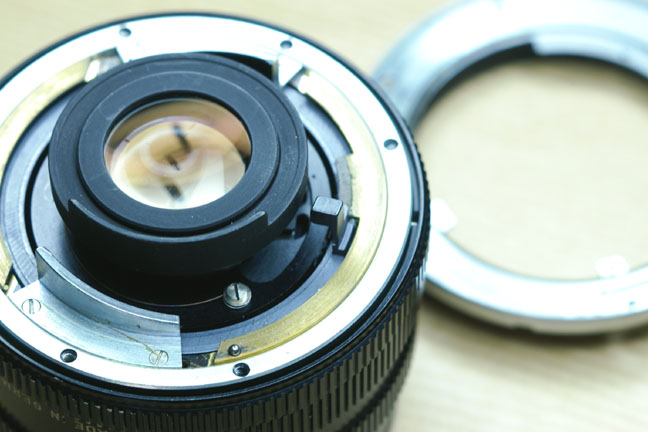

Remove the bayonet and search for the small ball, here it was on its place.
boleta fore

















Put the small ball in safe place for now.
numerar

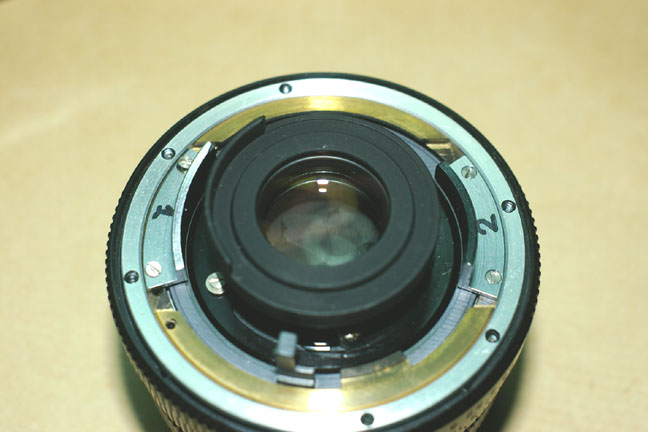

The 2 cams  are identical, so we need to mark them and take a picture for the position  before removal, and save them apart with their own spacers. This only happens in 2 cams lenses.
desmontar cams

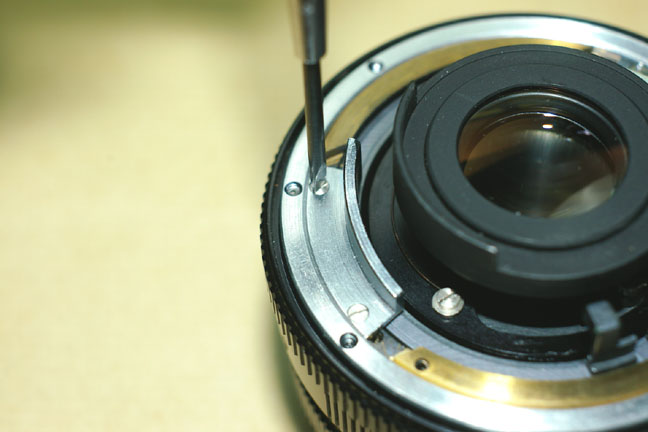

Now its safe to remove the cams.
Yes, I know, the picture was taken before I numbered them.

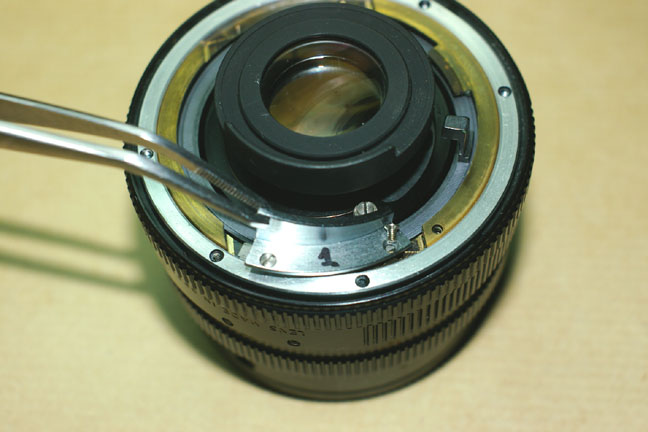

treure cams


















Remove them.
separar

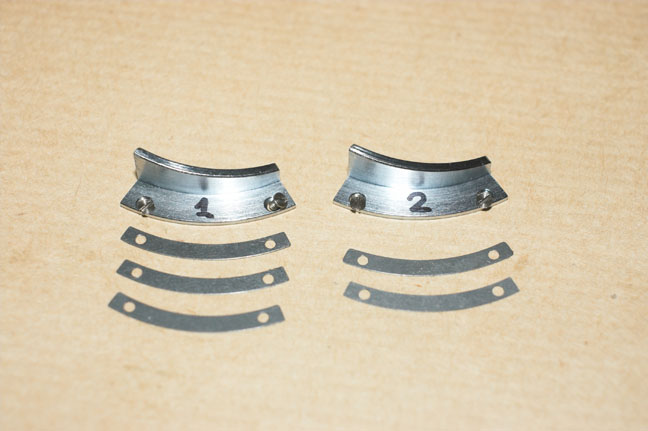

This is what is removed. Please save them apart, perhaps we'll have to rebuild the lens exactly as it was.
boleta a llloc

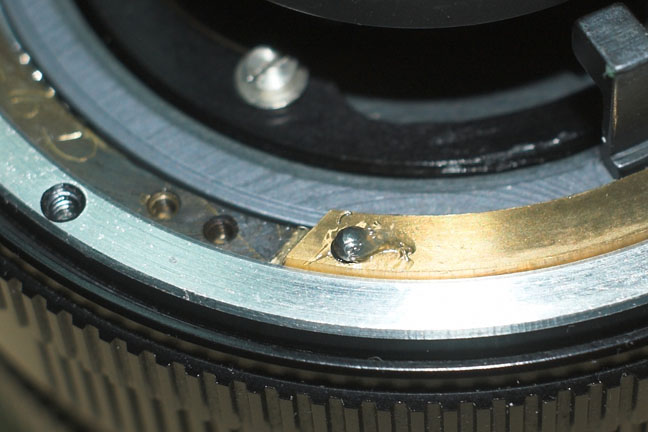

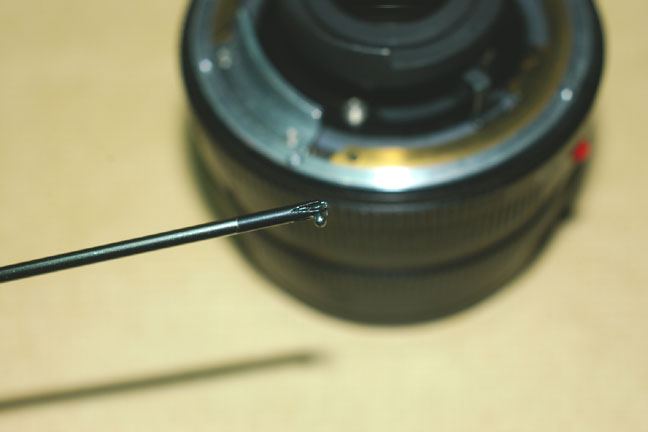

Now we can replace the small ball, and leave a bit of special grease with it.
bayoneta Pentax

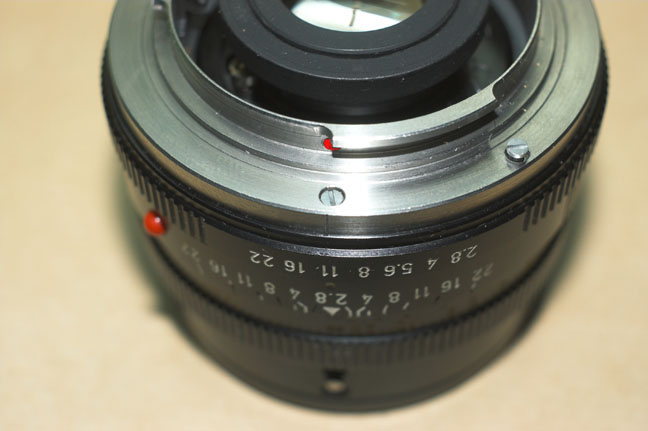

Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center.

The Leica-Nikon bayonet has the red dot slightly more to the right than the one at the picture.
Camera Pentax

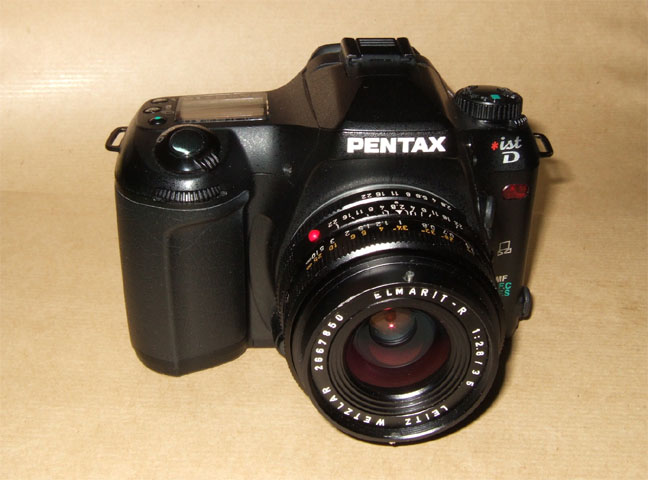

The lens is ready to shoot on a Pentax or Nikon Camera.
