elmarit 35mm 3cams

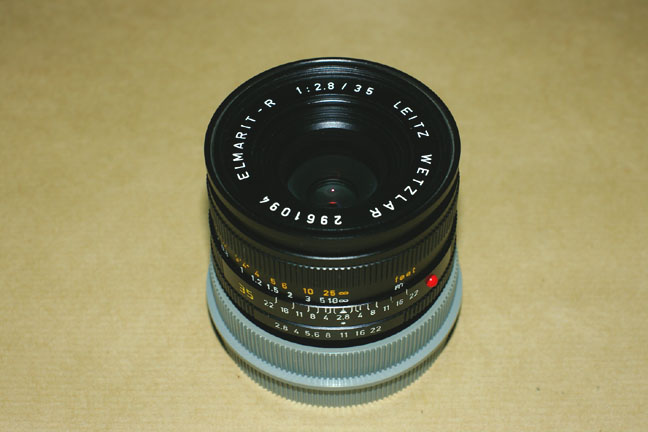

This lens is the modern 3 cam Elmarit 35mm
descollar

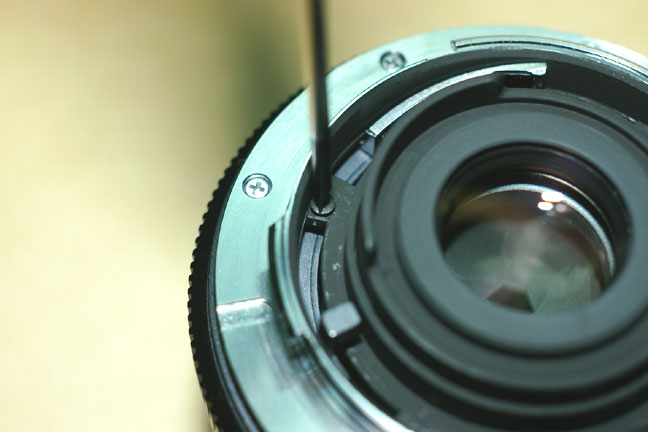

First, remove the black screws of the shroud.
cargols

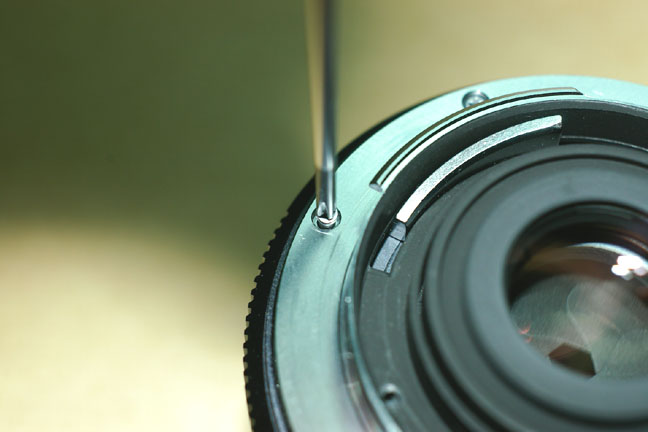

Now, the bayonet screws.
bayonet

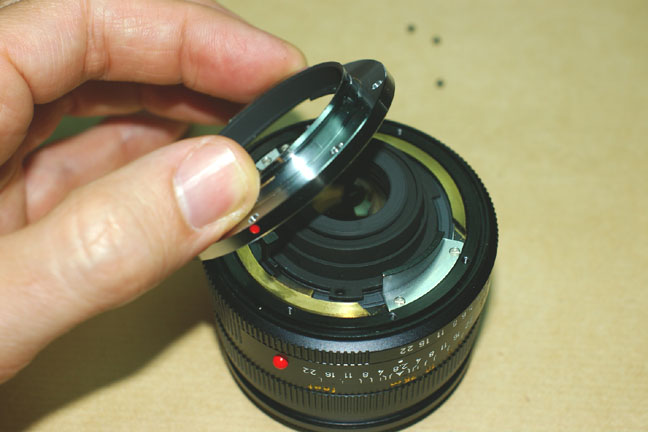

The bayonet can be removed now.
cover

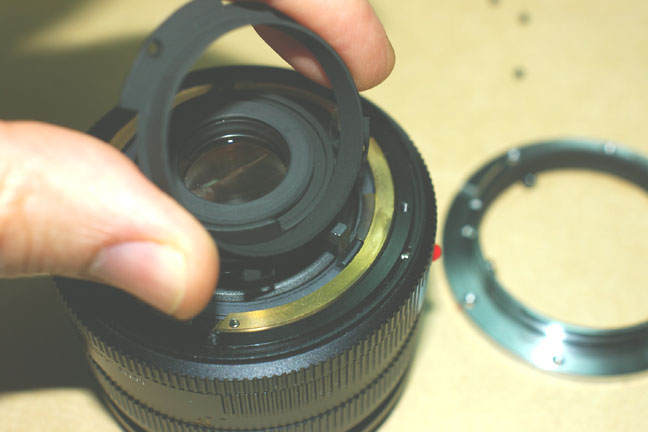

This way, the black shroud can be removed.


To remove the black shroud easily, first turn the aperture ring to F22 and the focus ring to 0.3 meters.
boleta

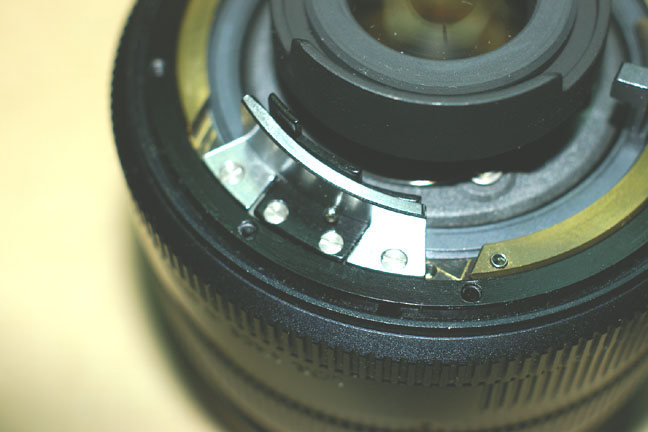

Search for the small ball,  it was near its place.
enganxar

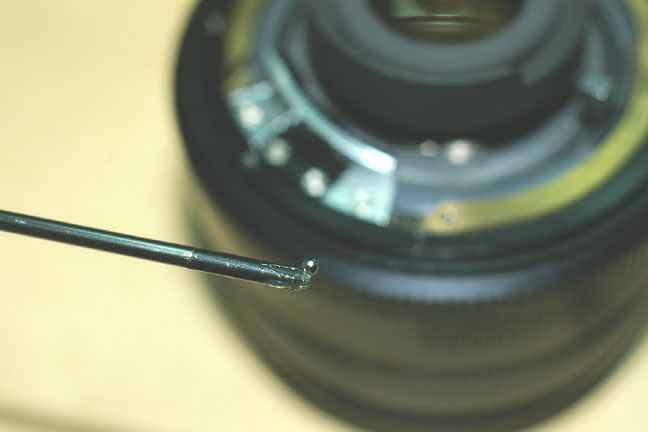

Put the small ball in safe place for now.
lleves

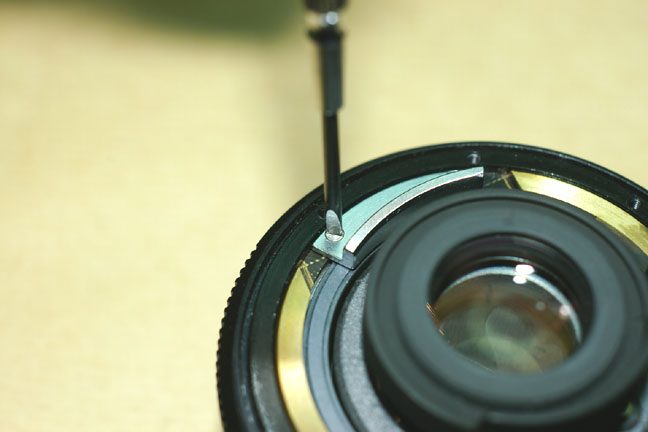

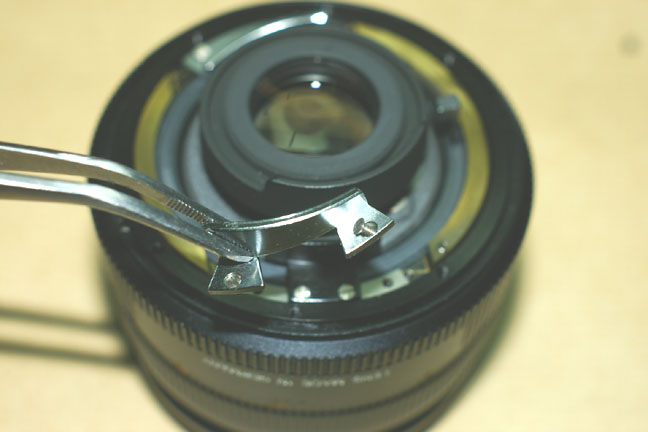

Unscrew the two clear metal cams.
remove

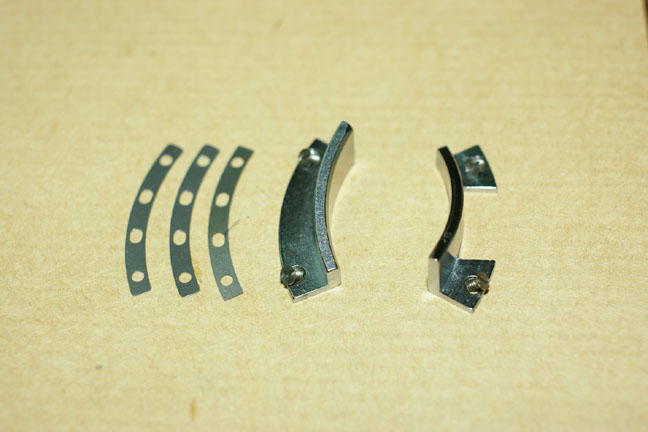

And remove them.
fora

















Save them in secure place.

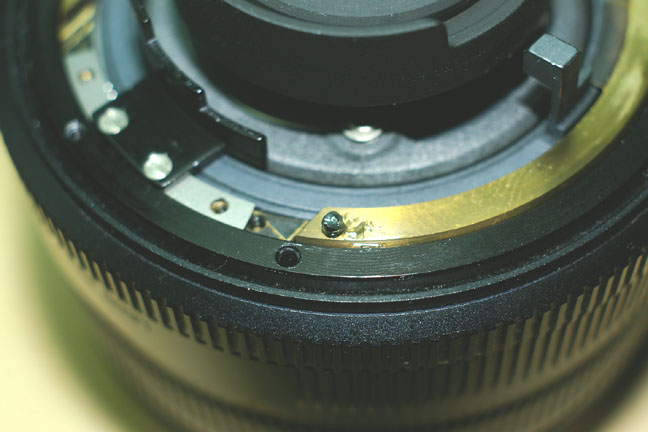

boleta













Now, we can replace the small ball and leave an small amount of special grease on it.
bayonet

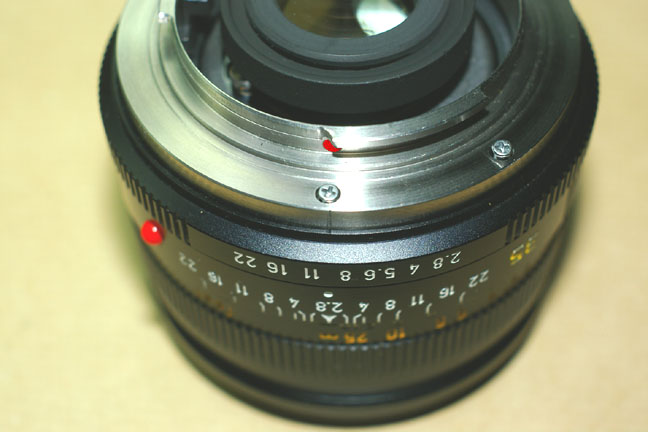

Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center.

The Leica-Nikon bayonet has the red dot slightly more to the right than the one at the picture
.
camera Pentax

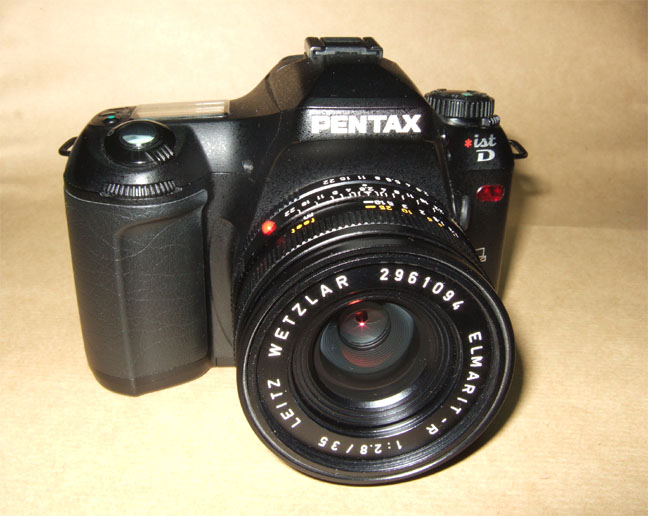

And the Elmarit is ready for a Pentax and Nikon cameras.
