Elmarit 90

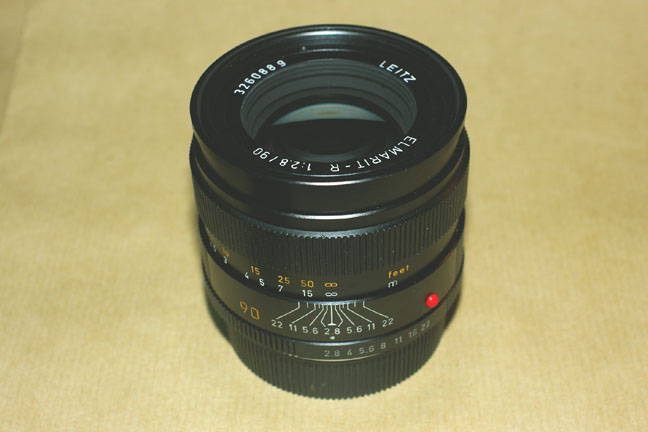

This is the Elmarit 90mm , one of the best in general opinion.
3 cams

















It is a 3 cams model
nose

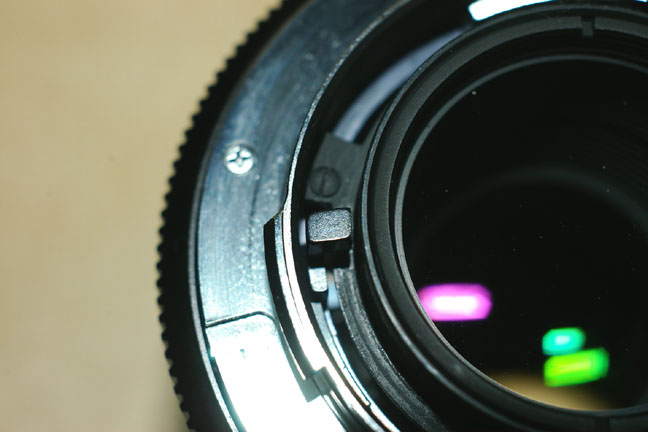

This model should be easy, but my unit has the diaphragm lever nose bigger than usual.
screws

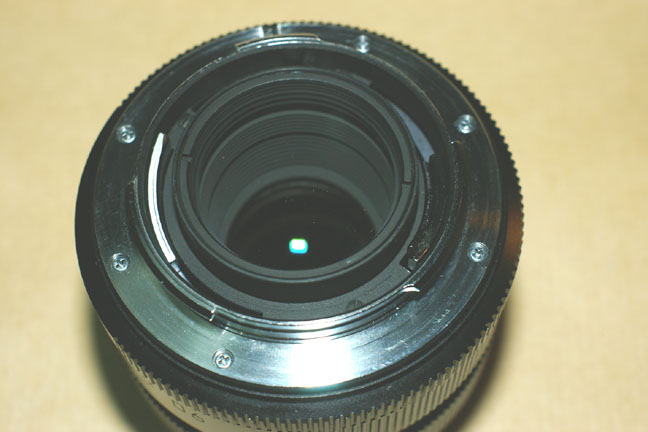

We have to unscrew the bayonet first.
problem














And move the bayonet until the black shroud starts to pass up that nose.
plastic tools
















Now make some force with a pair of plastic tools.

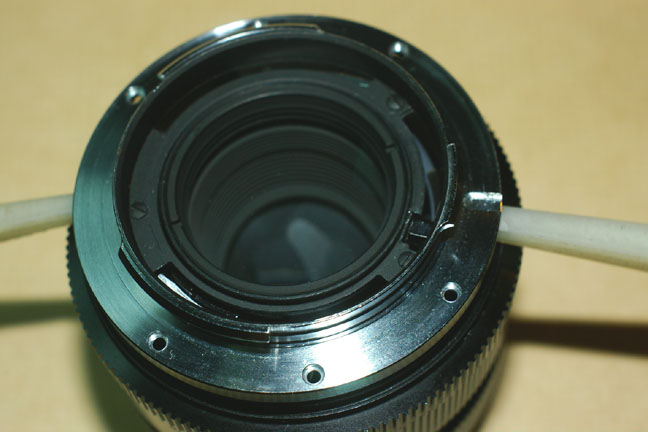

up


















Slowly it goes up

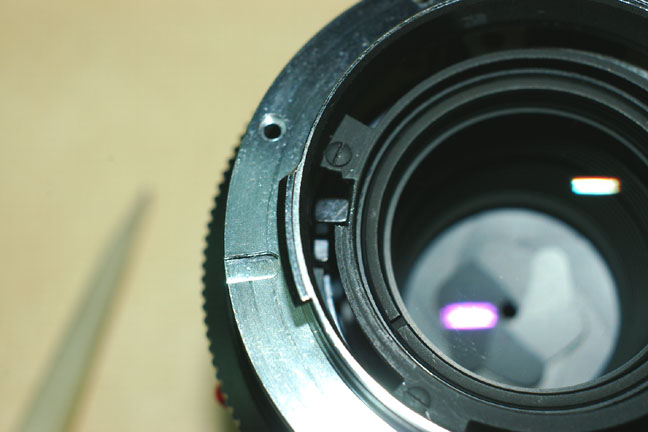

more


















Almost free.

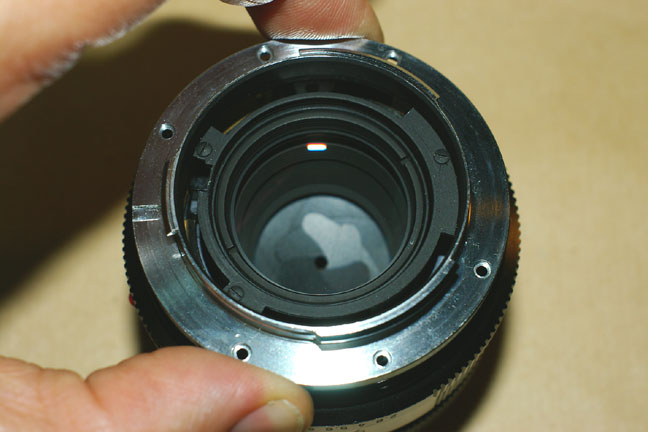

fingers
















Now we can finish the work with the fingers.
apart


















Apart at least.

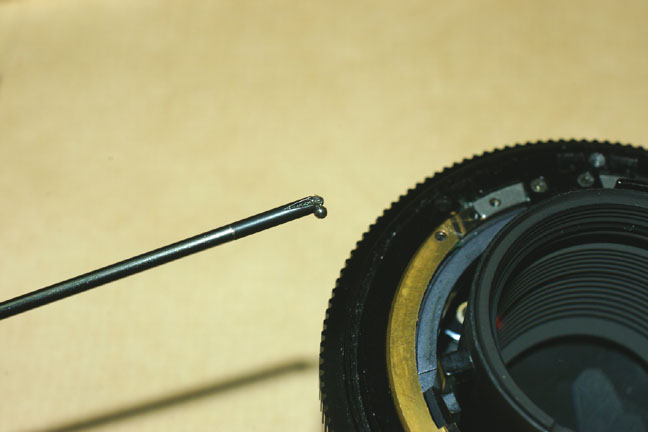

ball

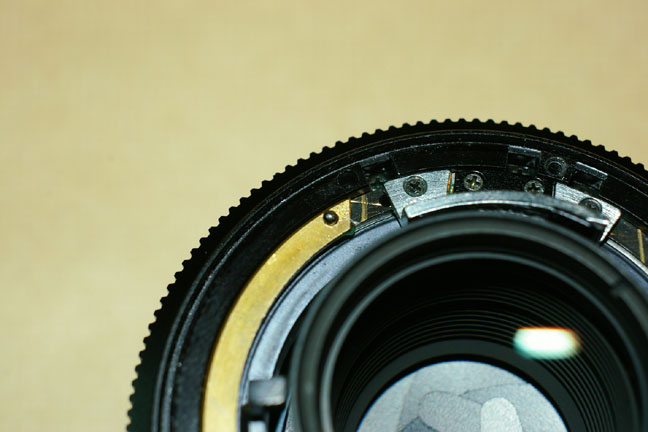

After so much fight, the small ball remains in its place, I prefer to remove it and keep it in secure place.
descargolar

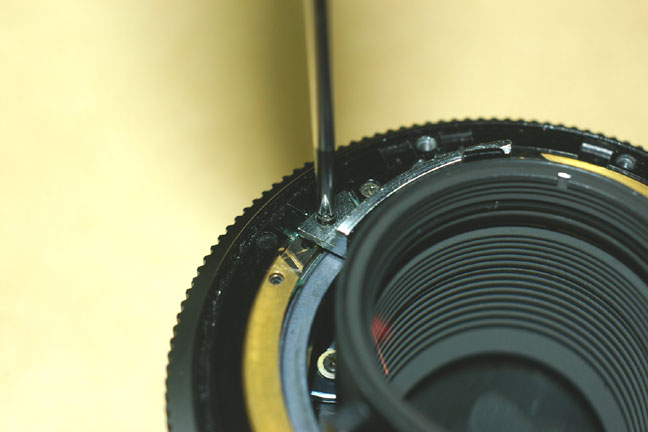

Now we have to unscrew the clear metal cams.

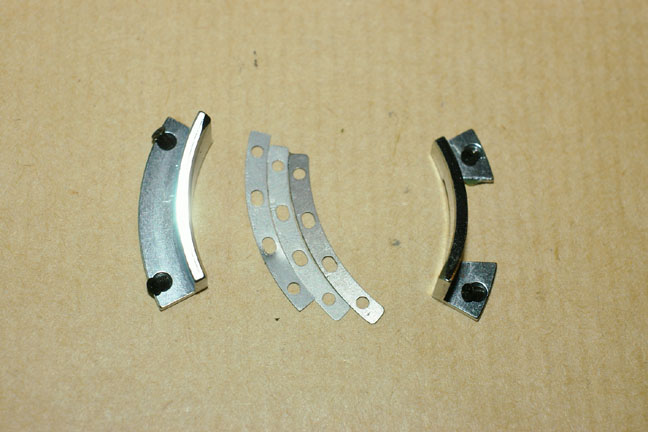

fora

















The cams removed.
small balll














Its time to replace the small ball and leave a little bit of special grease on it.
greix

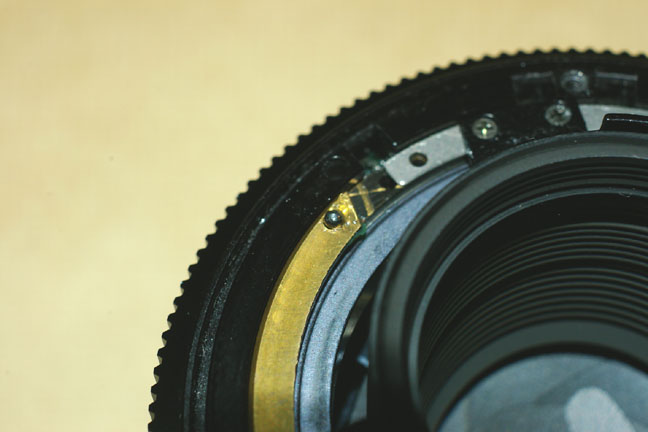

Here is the small ball in its place.
Leitax

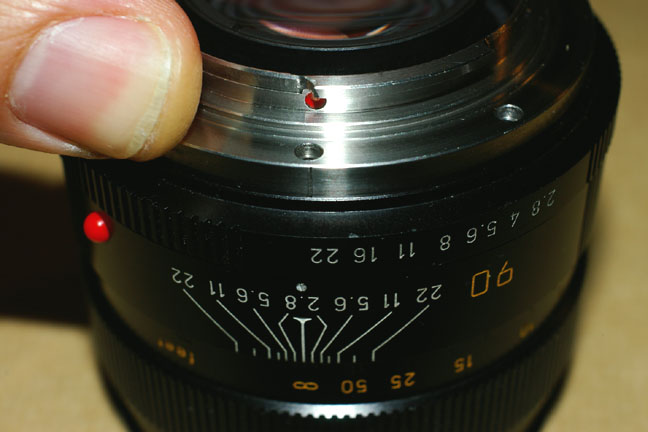

Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center.

The Leica-Nikon bayonet has the red dot slightly more to the right than the one at the picture.
camera

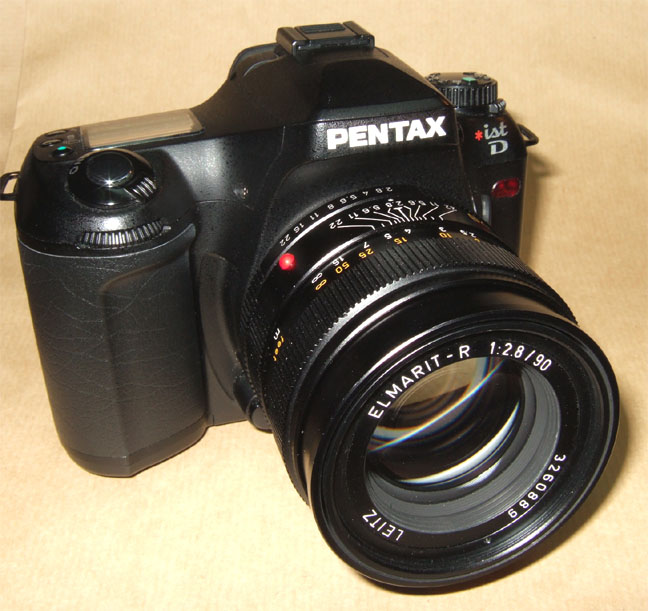

And this is the result, a Leica lens for a Pentax and Nikon cameras.
