summicron 35

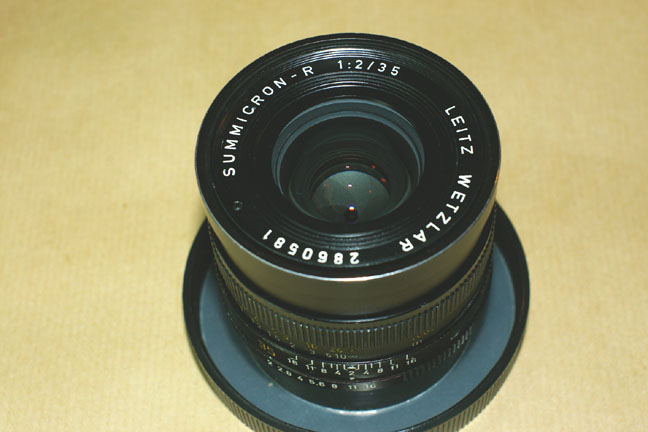

This is the Summicron 35mm, one of the most appreciated lenses in Leica forums
3 cams

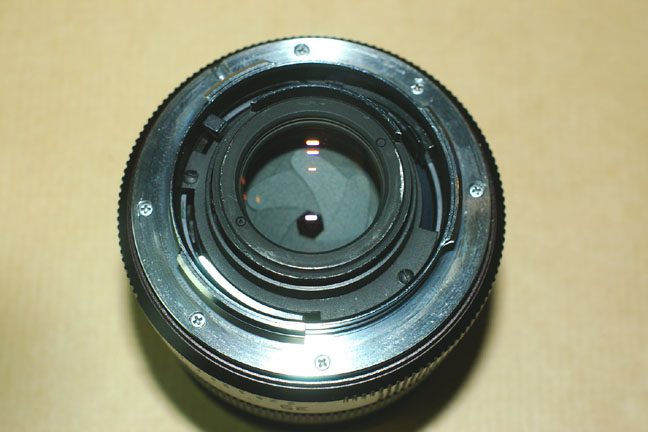

It is a 3 cams model
descargolar negres
















First, remove these 3 black screws
empenyer

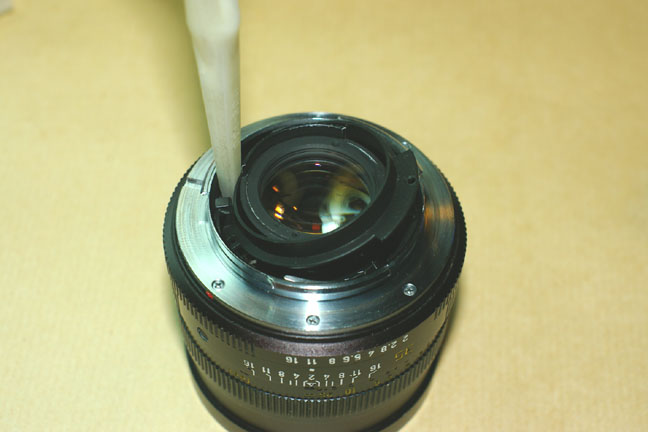

Push the black shroud at this side, so you can lift the other side.
treure cover

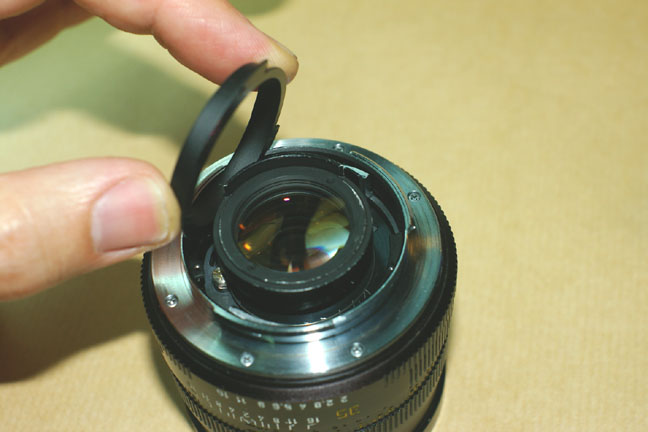

This way, it can be removed
decargolar

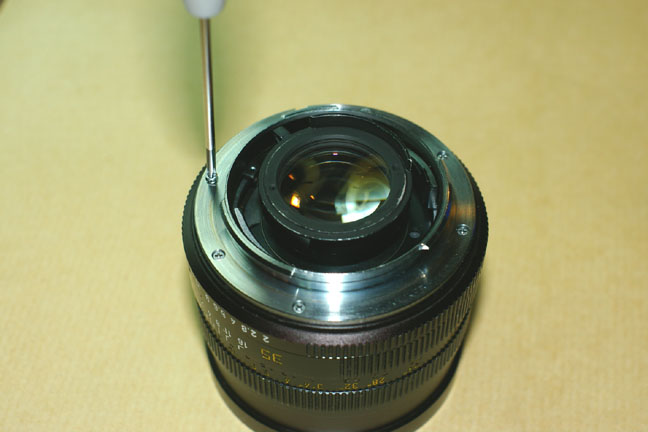

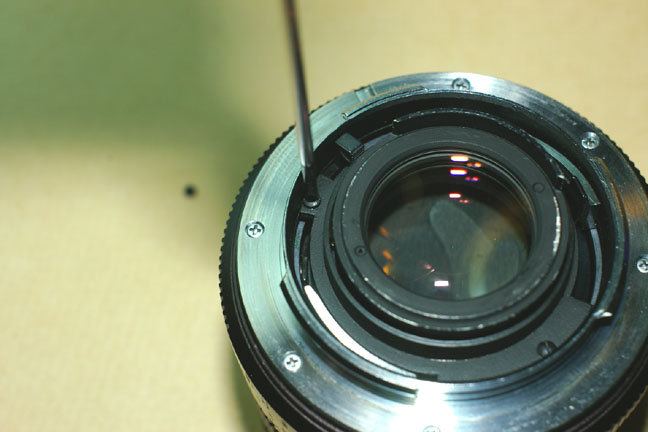

Now unscrew the bayonet
bayoneta fora

















And remove it.
busca la boleta

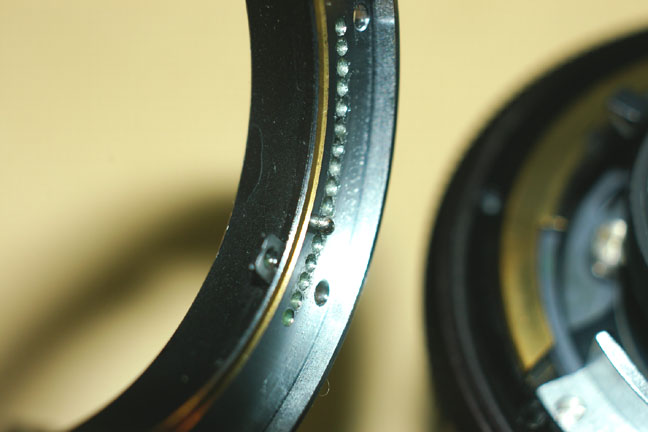

Look for the small ball, sometimes, it remains sticked to the bayonet, put it in safe place for now.
descargolar cams

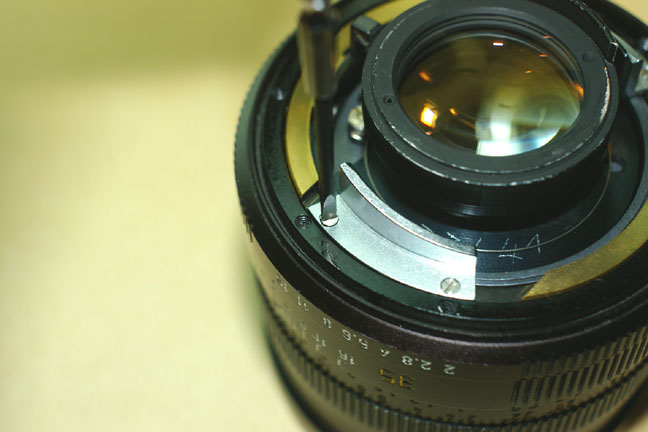

Unscrew the clear metal cams.

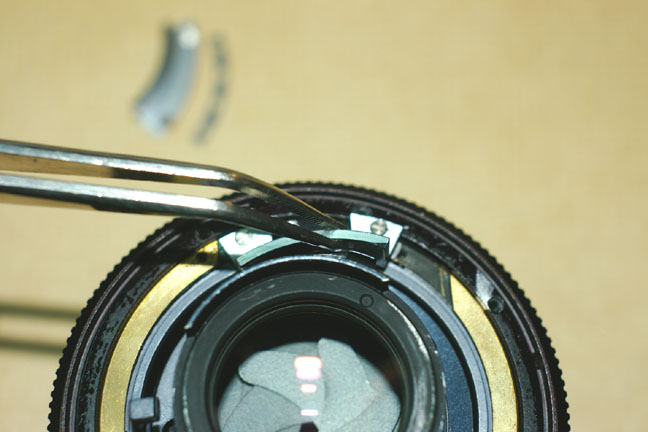

retirar cams

















Remove them.
2 cams

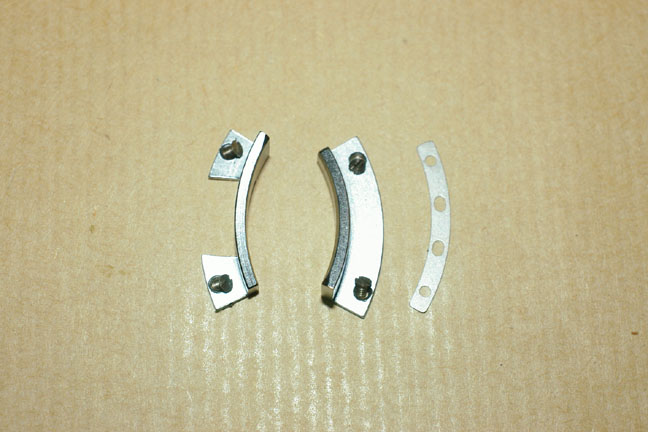

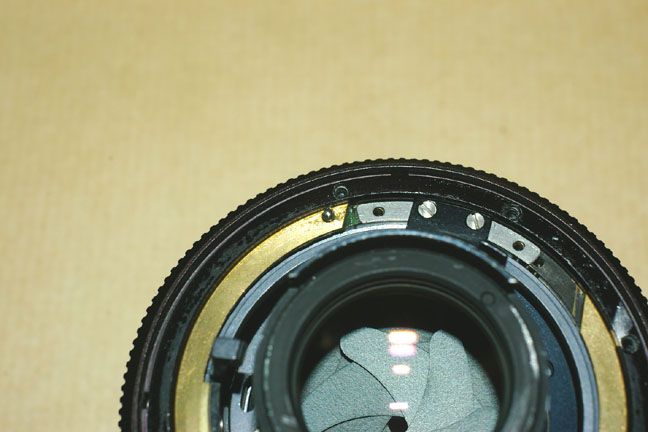

This is what is removed.
greix

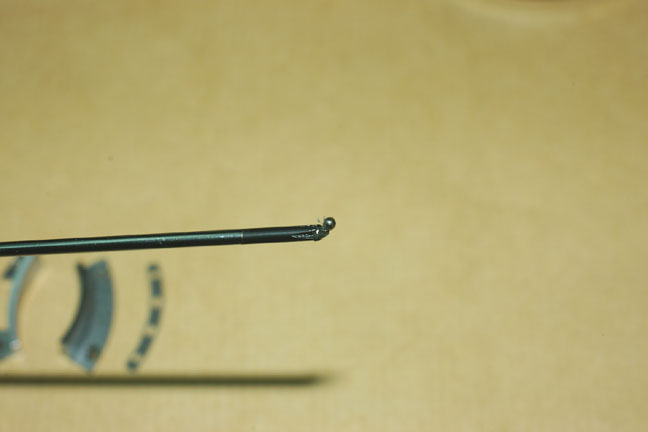

Now we can replace the small ball, and leave a bit of special grease with it.
a lloc

















Ball in place
bayoneta

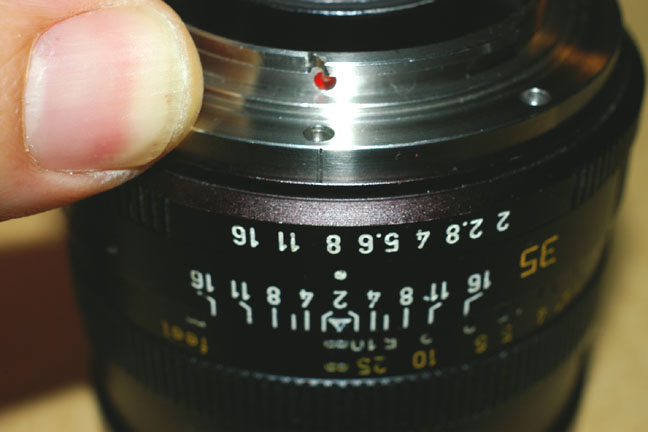

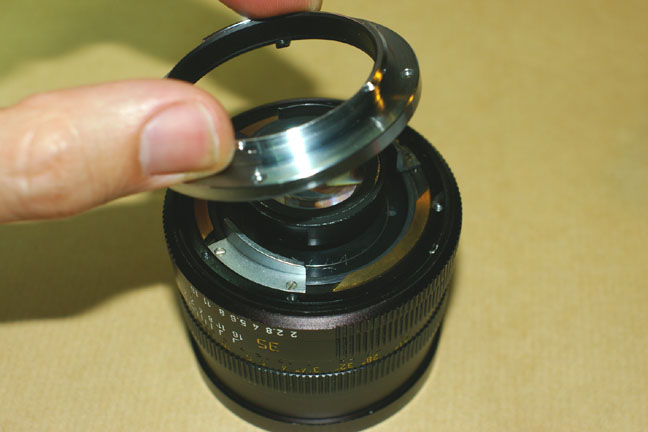

Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center for Pentax, and slightly to the right for Nikon.
camera

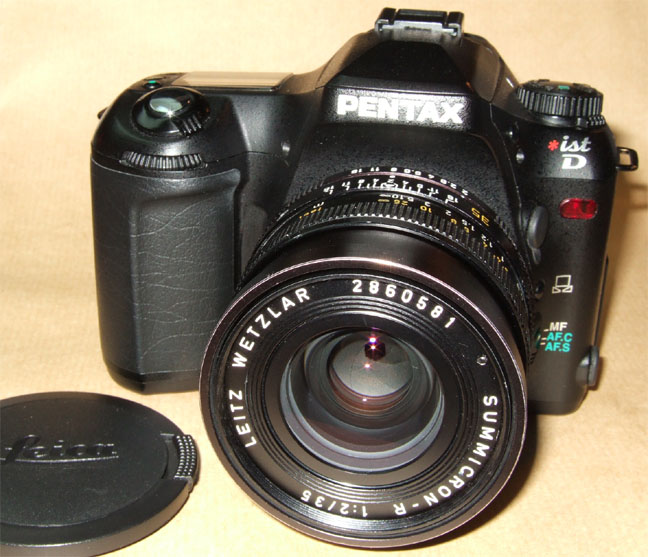

The Summicron is ready for Pentax and Nikon Digital cameras.

This lens was in theory  going to hit  the FX cameras mirror , but , recently  I had confirmation of the contrary, there is no mirror  problem.
