Summicron 50mm 2cams

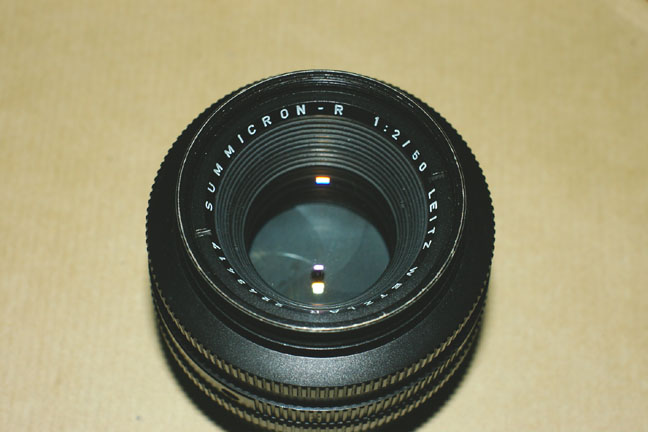

This is a classic, the Summicron 50mm 2 cams.
2 cams

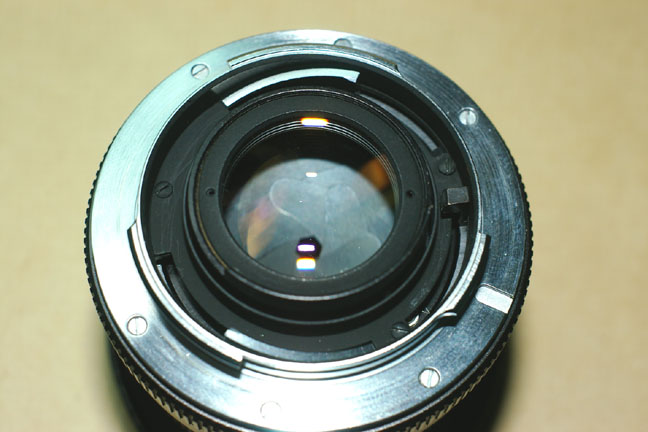

Here you can see the two cams.
cargols negres

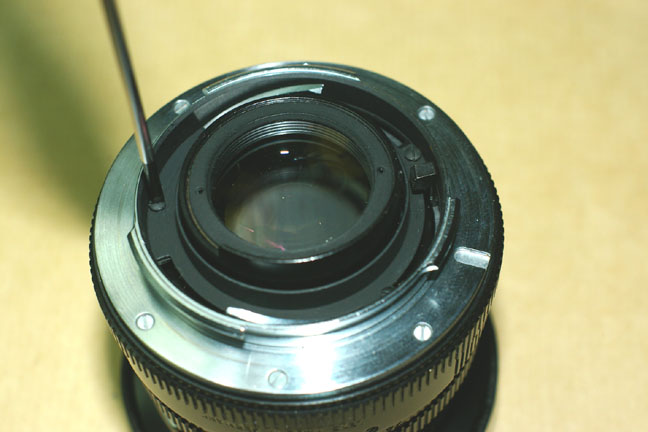

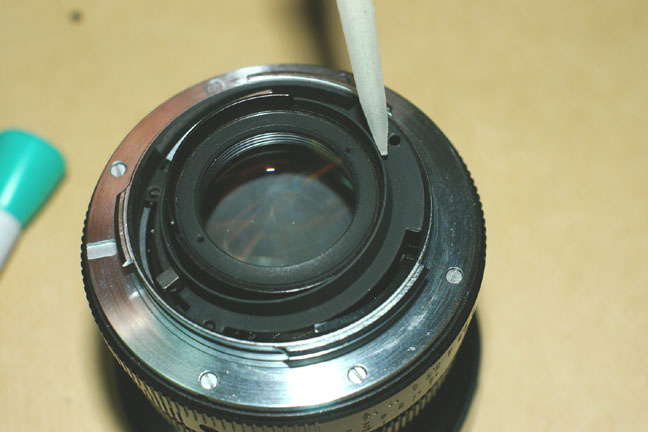

First, remove the three black screws
lift the shroud

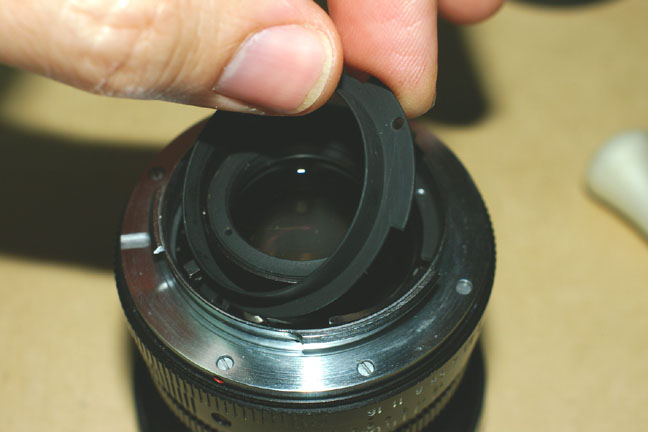

Now, lift the black shroud, better don't use the fingers, you could touch the lens by accident.
remove

















Now it's easy to take it out.
desargolar bayoneta

















Unscrew the bayonet.

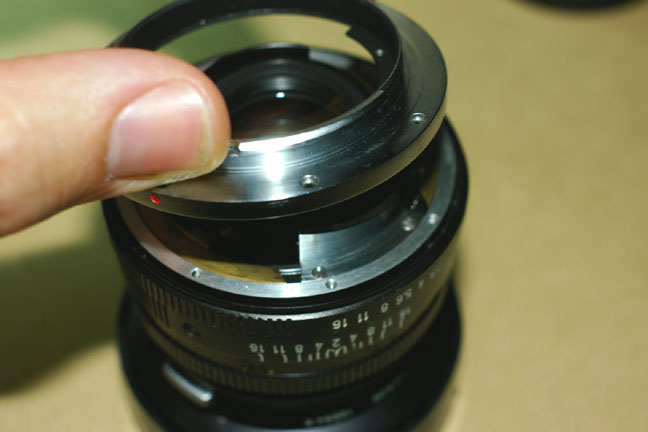

remove bayonet


















And remove it.
localitzar boleta

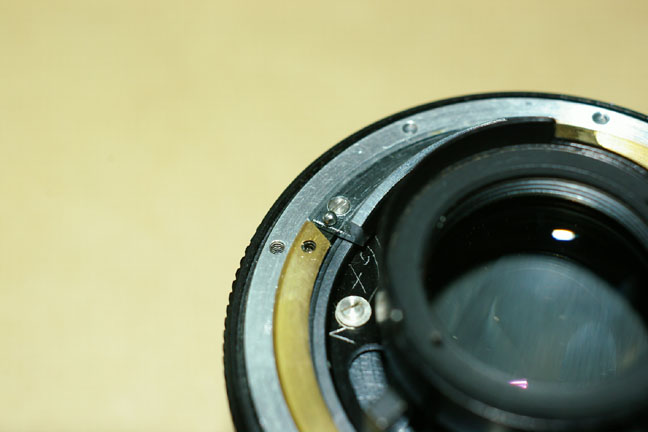

Search the small steel ball and save it in secure place.
numerar

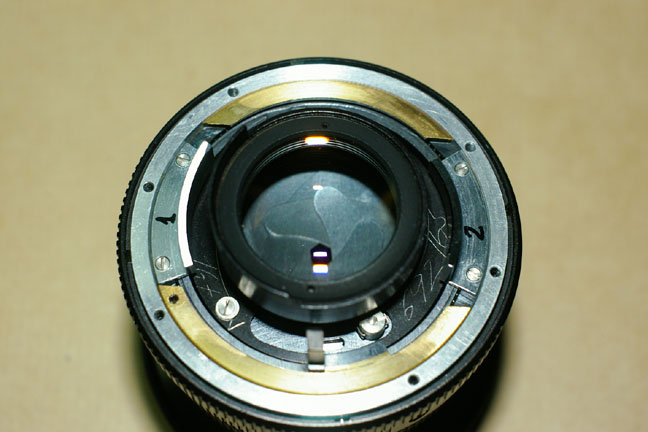

Since it is a two cams lens, these are identical, so we have to mark them and take a picture for the position.
descargolar cams

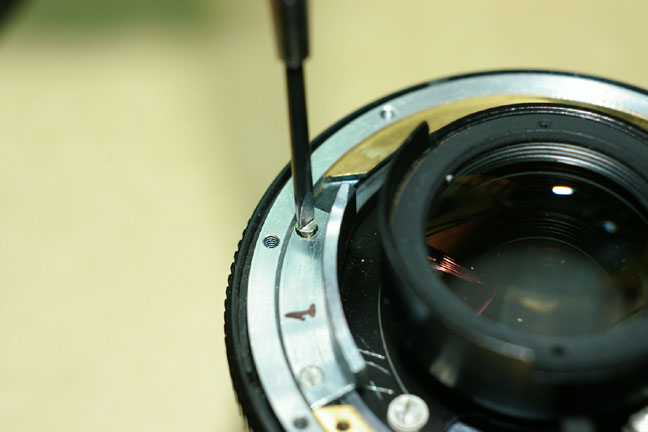

Now you can unscrew them.
gruixos

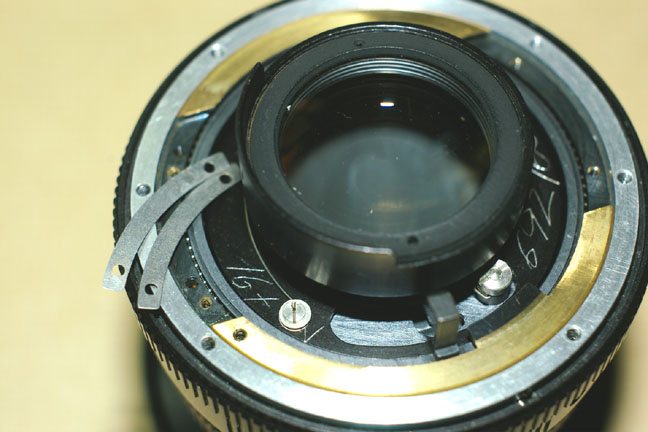

Store each cam with its own spacers, so we can replace them where they were.
cams fora

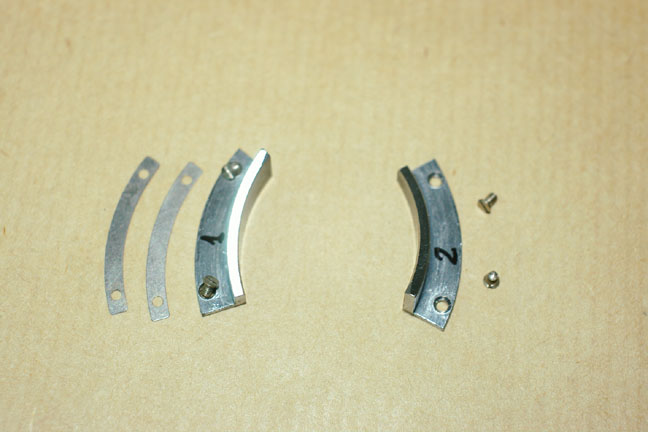

This is what was removed, cam number two had no spacers in this lens.
boleta amg greix

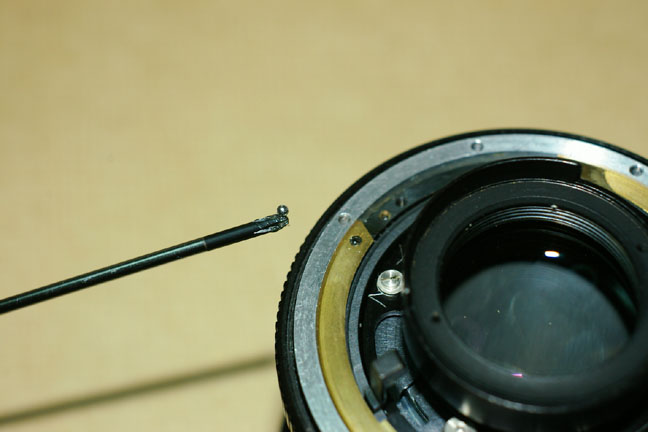

Time for replace the small ball, add a little bit of special grease on it.
boleta a lloc

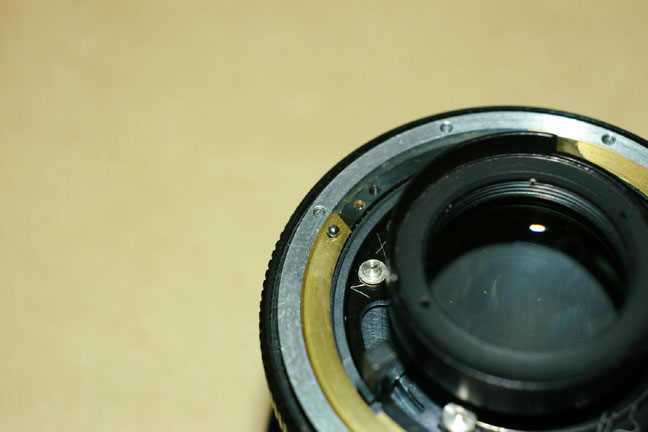

Here is where the small ball belongs.
posar bayoneta

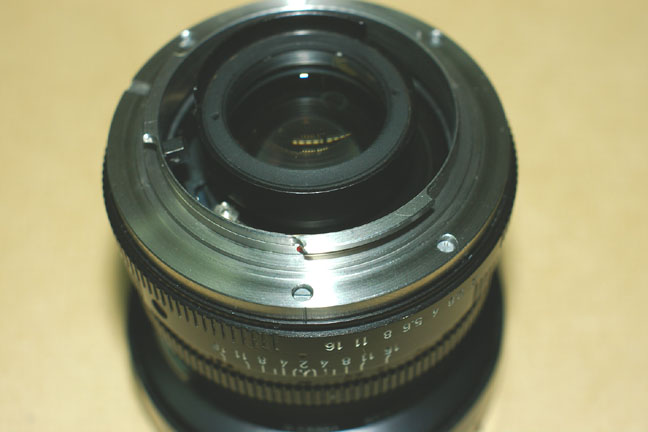

Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center for Pentax, and slightly to the right for Nikon.

camera Pentax

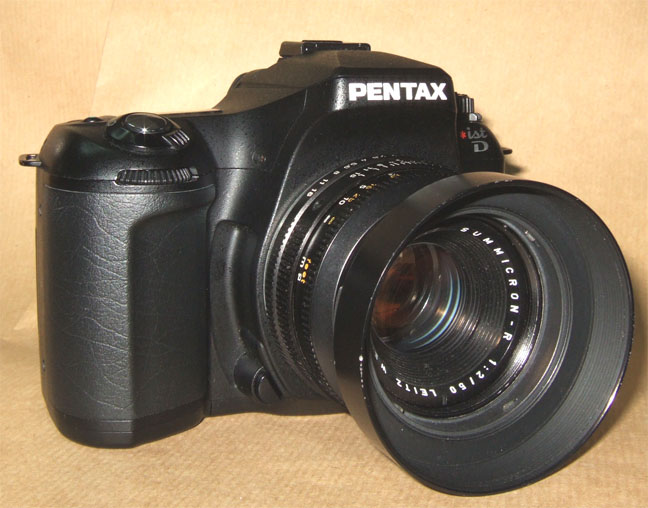

Summicron ready for Pentax, Sony Alpha or Nikon cameras.
