Summicron 50-R














This is the Leitz Summicron 50mm R-only cam.
the R-cam

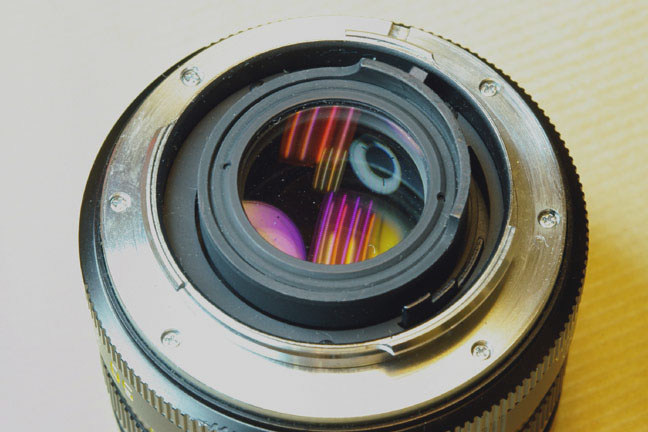

Here you can see the R cam, it means this one is quite modern.
Unscrew

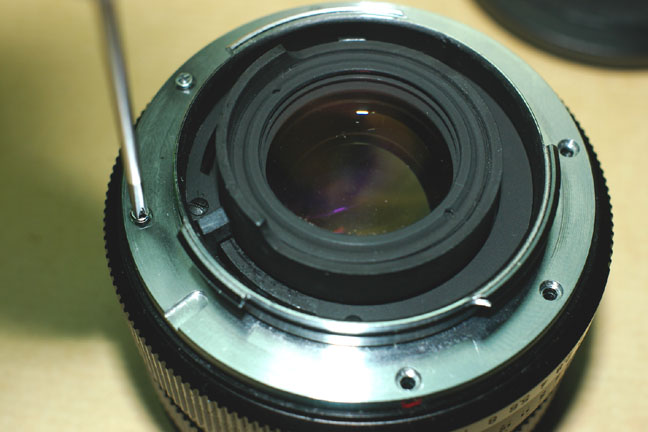

First, unscrew the six bayonet screws.
Now the black ones

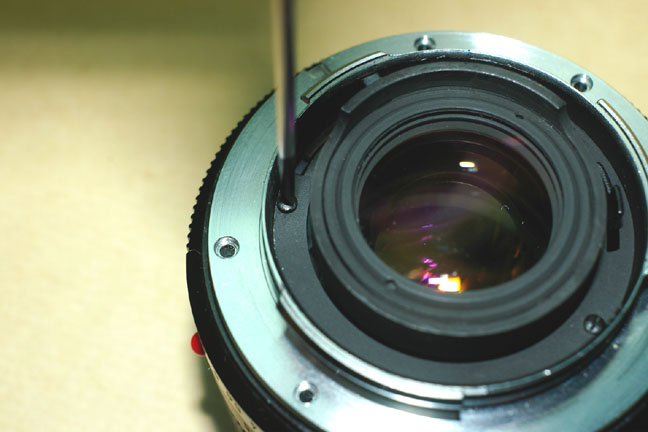

Now, the three black ones.
Lift shroud

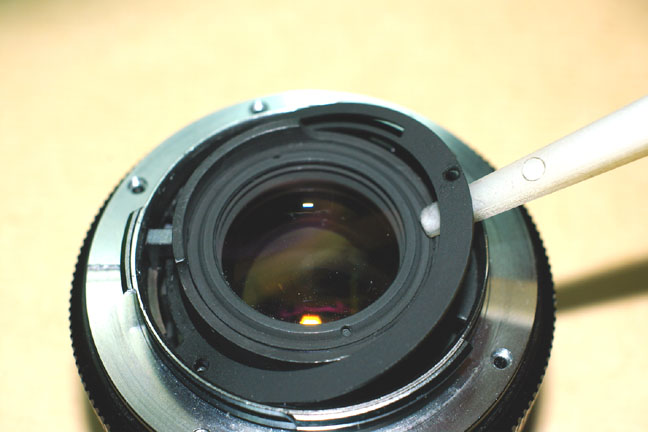

Lift the black shroud with the plastic tool.

this way

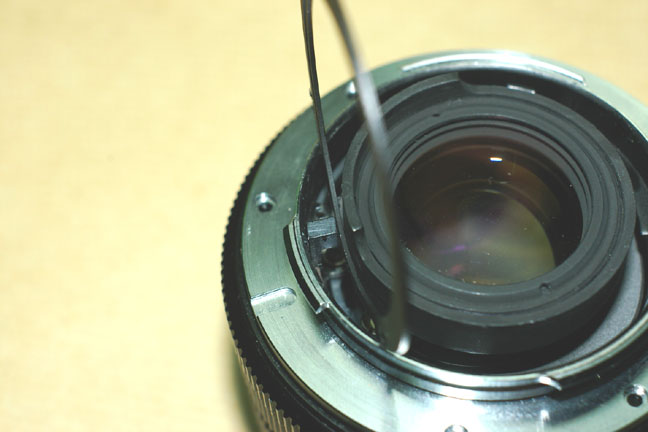

It has to arrive to the vertical..

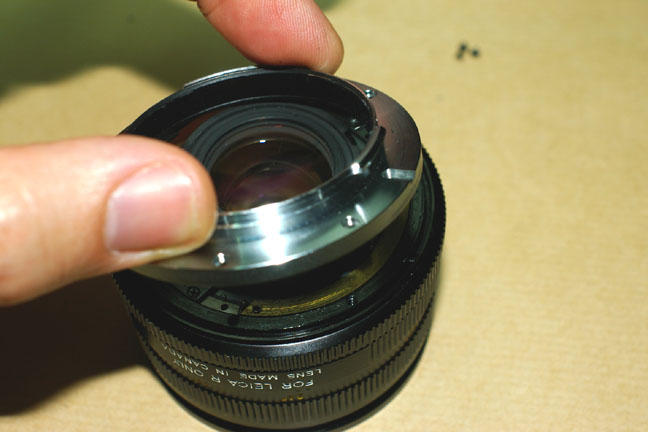

remove

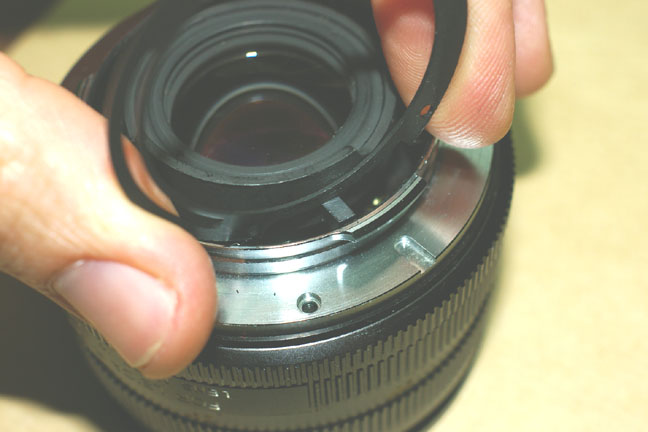

This way it's possible to remove it.
aixecar bayoneta

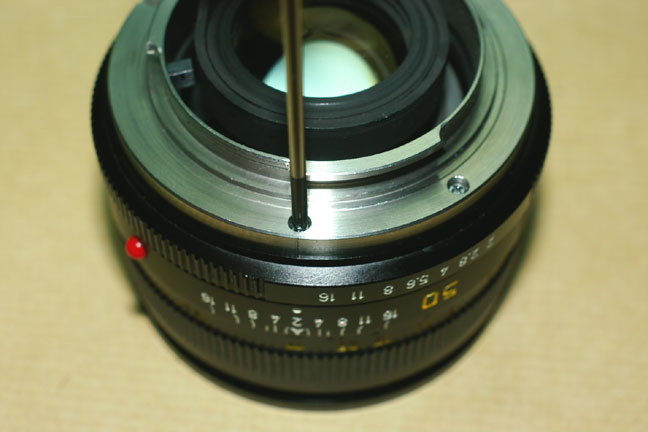

Now remove the bayonet.

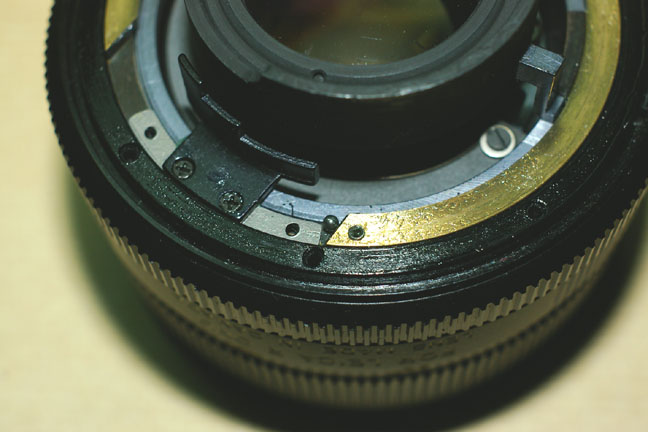

ball

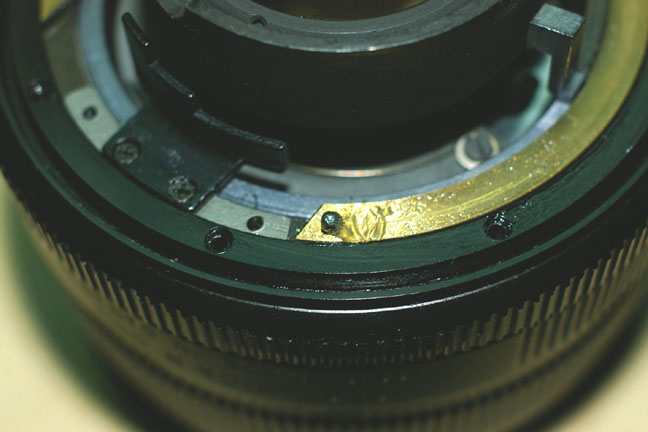

Look for the small ball.
a lloc














Put it in place and add a very small amount of special grease.
pentax bayonet

Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center for Pentax, and slightly to the right for Nikon.

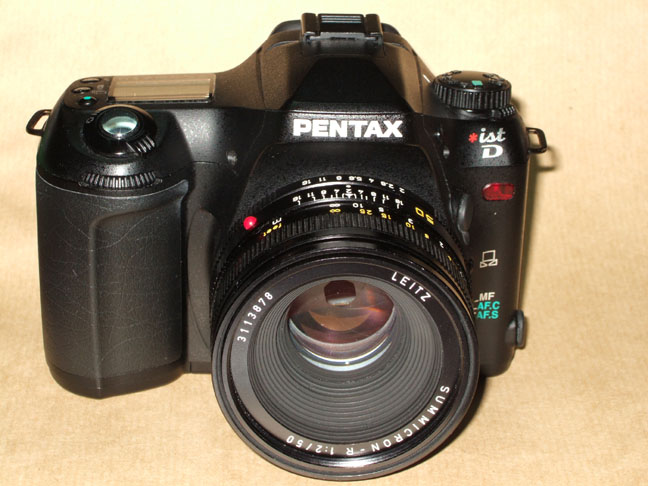

camera
Lens ready for Pentax and Nikon cameras, this one was easy.
