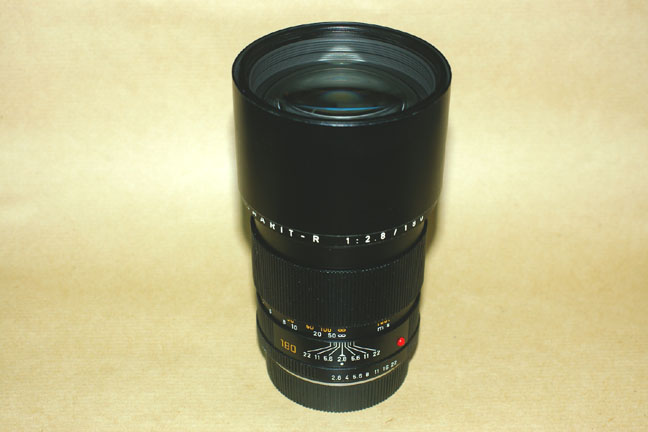

Elmarit 180

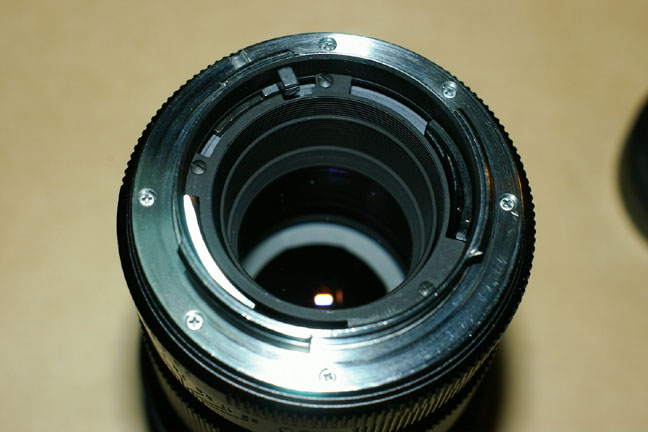

This is the second version of the Elmarit 180/2.8.
3 cams

















It is a 3 cams model.

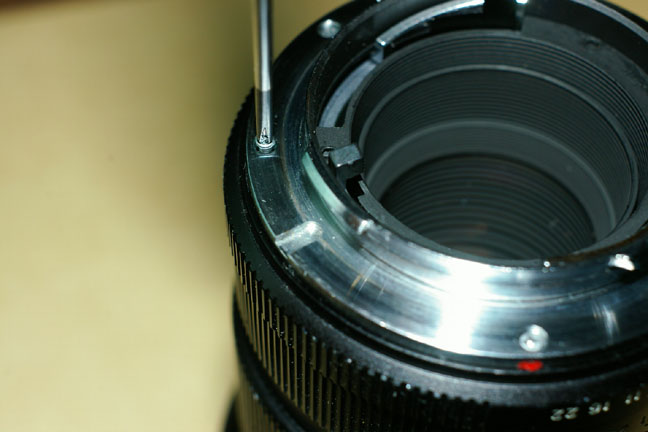

unscrew

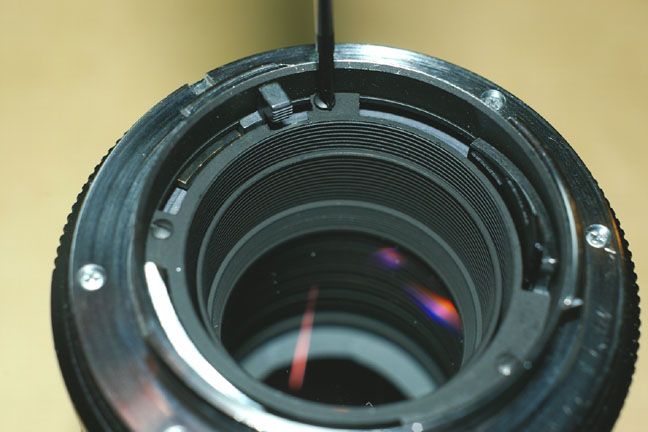

First, remove  the black screws.
bayonet screws

















Now, the bayonet screws.

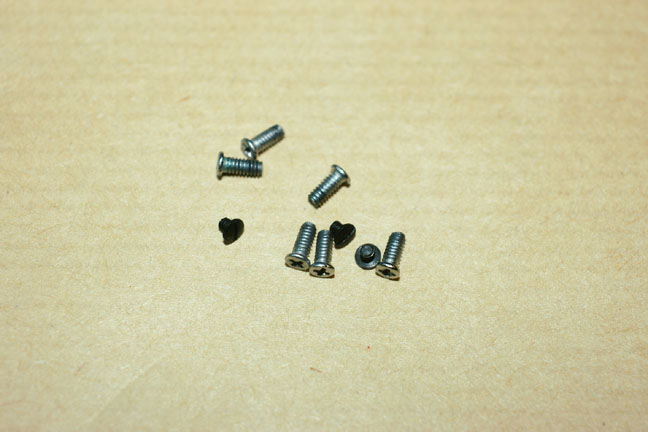

screws

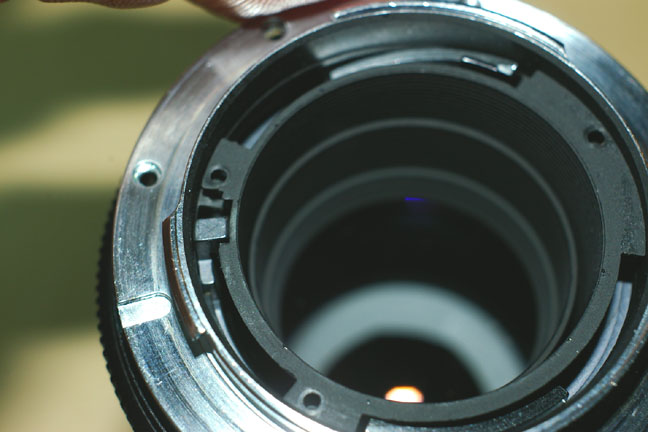

Removed all.
move

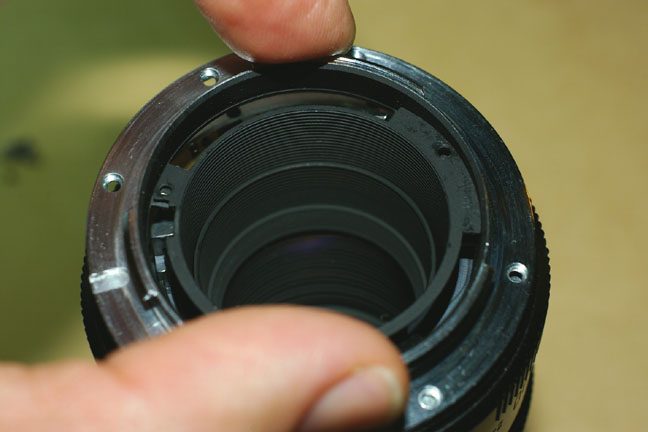

Turning the bayonet you can find the right position to remove it.
free


















Finally, it's free.

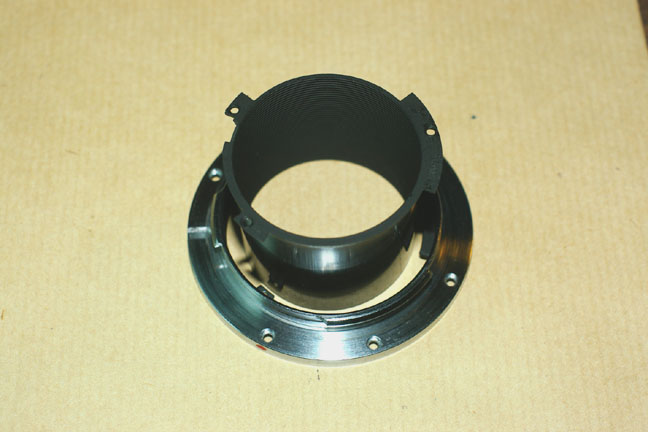

removed

Both removed.


NEW!
With the new Leitax mount model, you can reuse the black tube to avoid flares, take a look here.

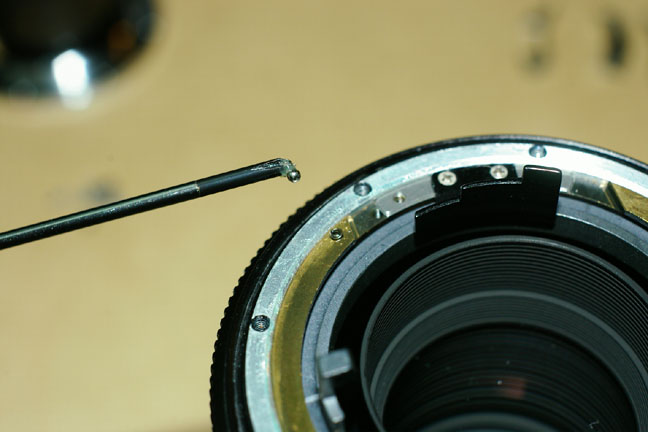

find the ball
















Find the small ball and save it in secure place.

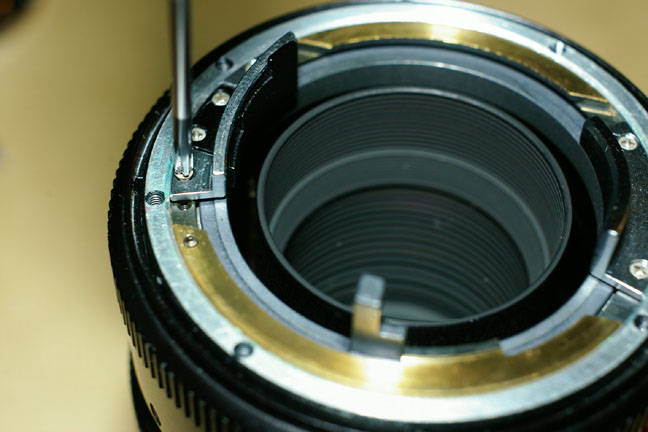

cams

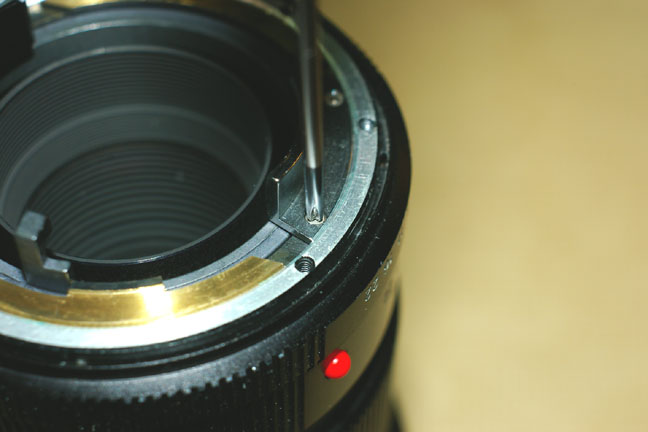

Now, remove the clear metal cams.
the other one

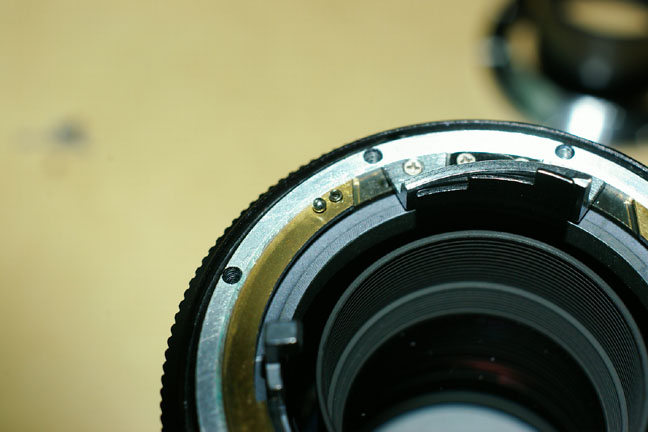

This one too.

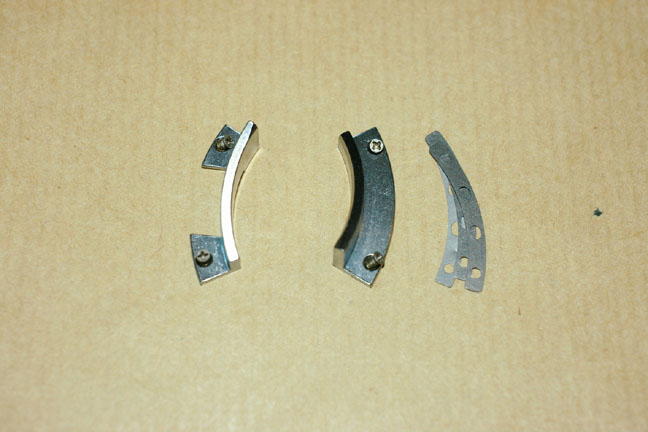

out


















Cams out.
in place

















Replace the small ball.
in place

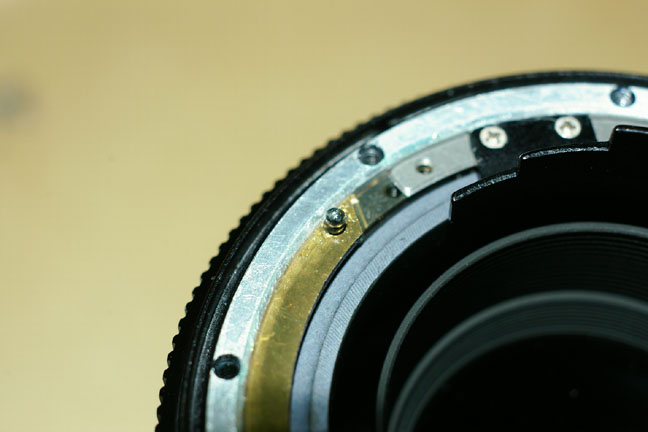

This is the place for the small ball, please leave a little bit of special grease on it.

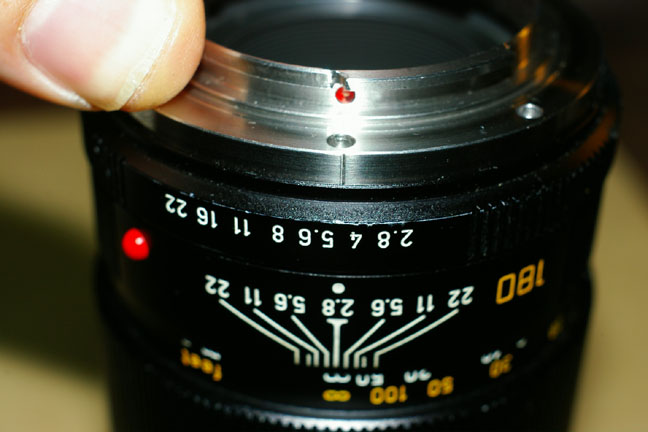

Leitax






Install the Leica-Pentax or the Leica-Nikon bayonet, the red dot in front the scale center.

The Leica-Nikon bayonet has the red dot slightly more to the right than the one at the picture.

camera

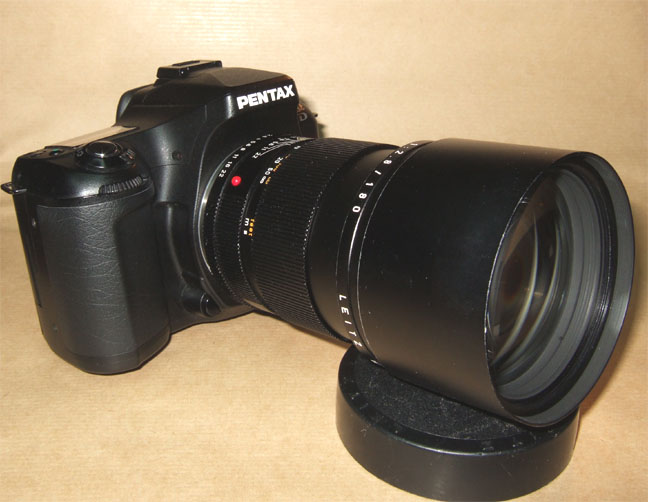

Leica lens ready for Pentax and Nikon cameras.

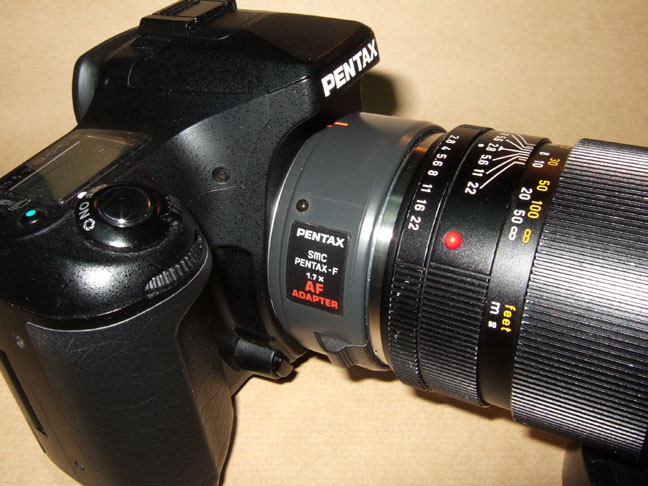

AF adapter


















Thanks to the Pentax AF Adapter, now we have an Elmarit 306mm autofocus
