This

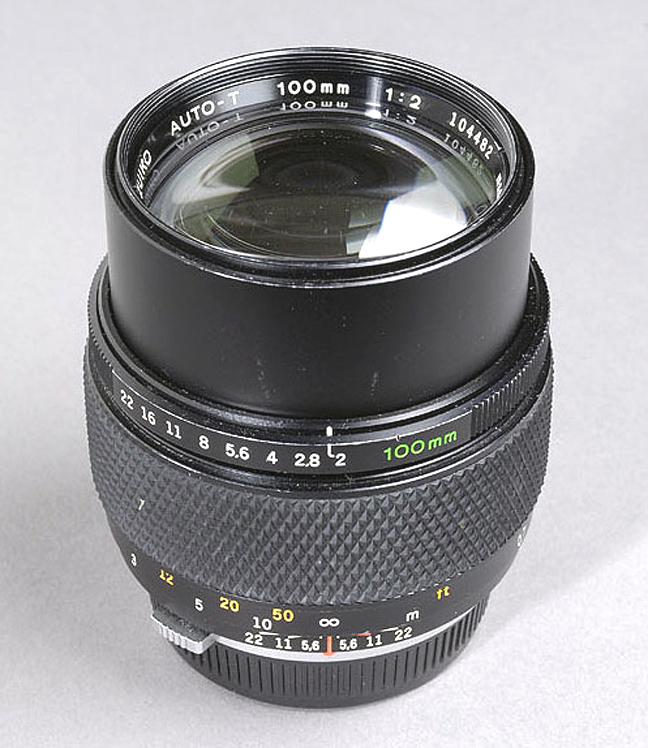

is the Olympus OM-System Zuiko 100/2 Thanks to our client and friend John, we can write these instructions. |
![]() |

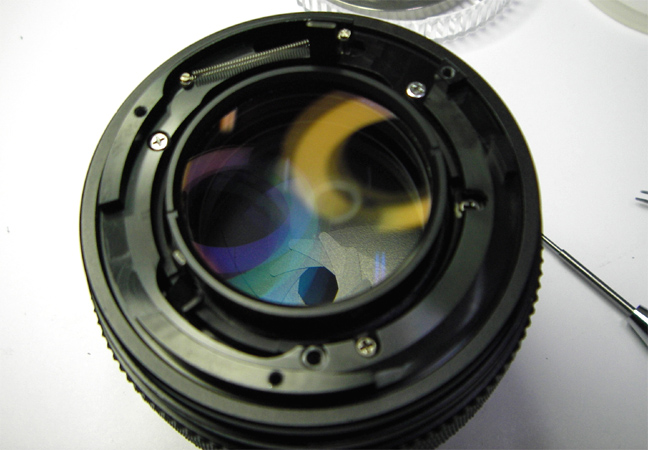

First, unscrew and remove the original bayonet. This lens has no space to use a spring to keep that aperture lever to the left, to make the iris stay at the desired aperture. |
![]() |

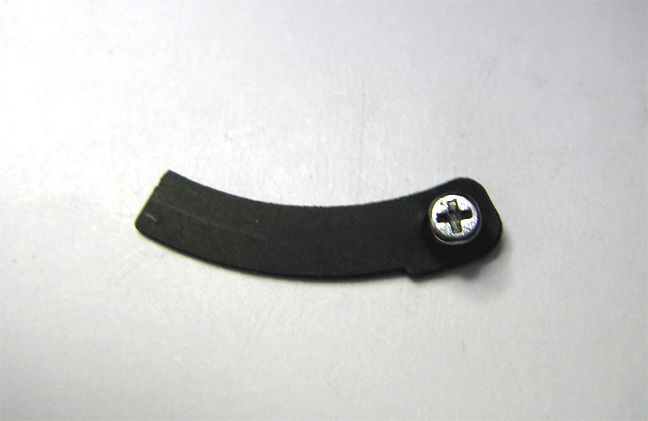

John made a special blocking spacer. |
![]() |
That can be screwed and keeps the aperture lever to the left side. Also should be possible to make a blocking piece of plastic that will stay in place itself. |
![]() |

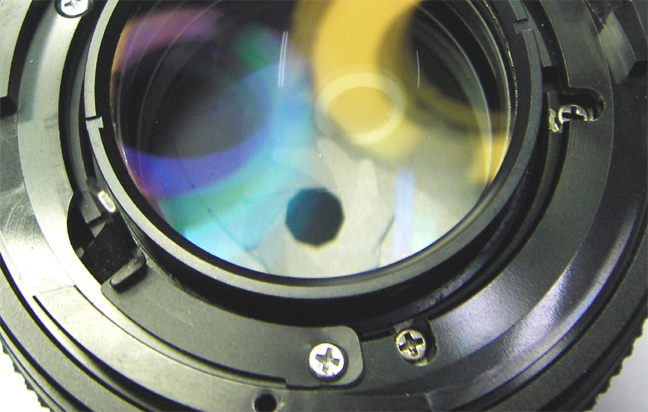

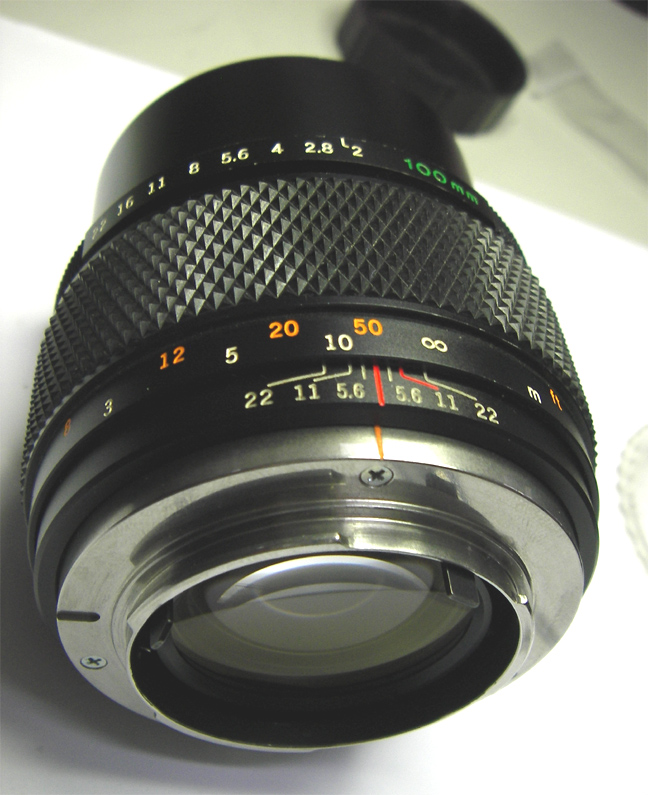

Now you can screw the Leitax mount with the provided screws for Nikon. The Pentax version uses the original screws. |
![]() |

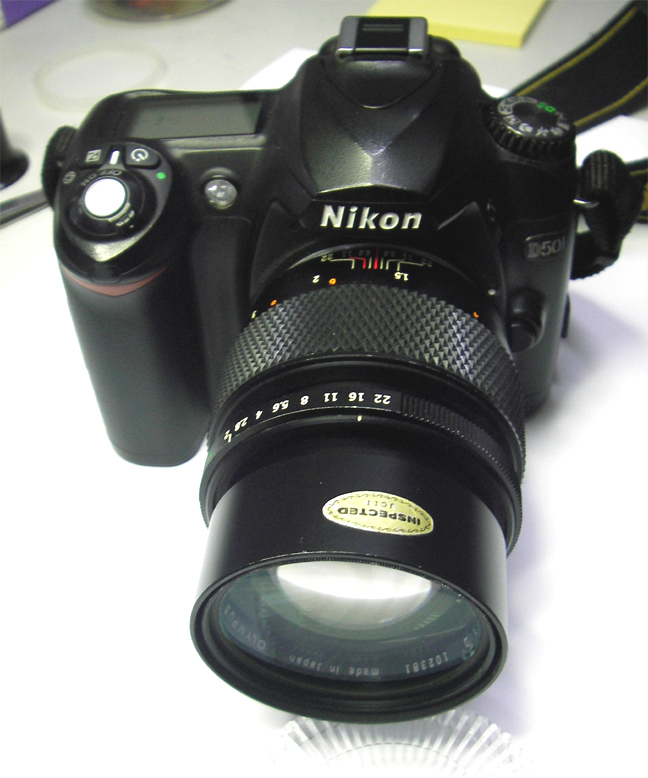

Ready, this excellent lens can be used on Nikon and Pentax cameras. |
