Please don't hesitate to ask me any doubt regarding this conversion.

                                                               info@leitax.com
Zuiko Nikon, no adapter 1

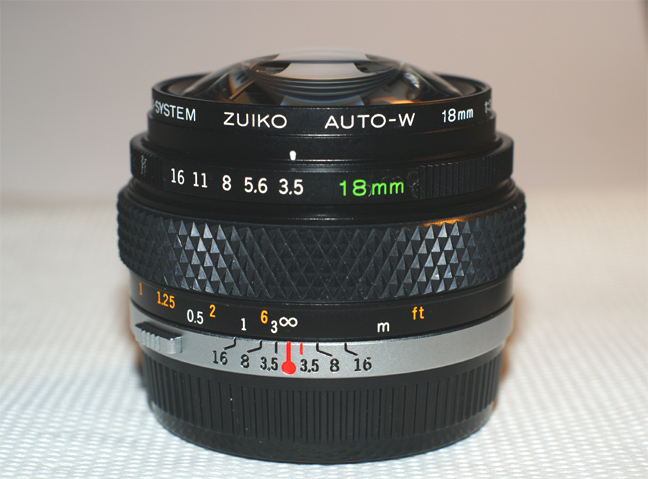

 This is the Olympus OM-System Zuiko 18/3.5 lens.
Zuiko Nikon, no adapter 2

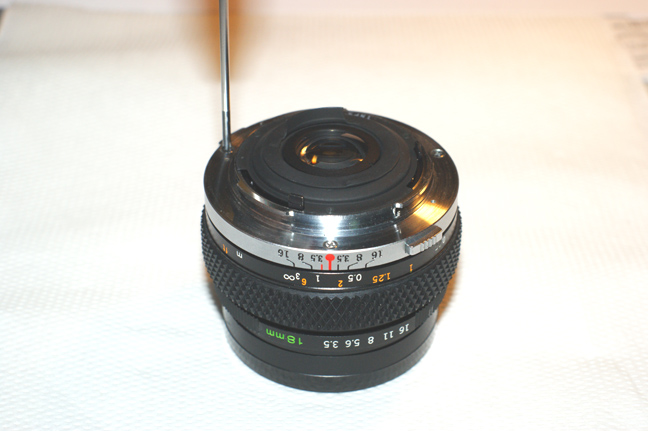

 It has three screws at the bayonet base, we have to remove them.
Zuiko Nikon, no adapter 3
 And just lift the mount.

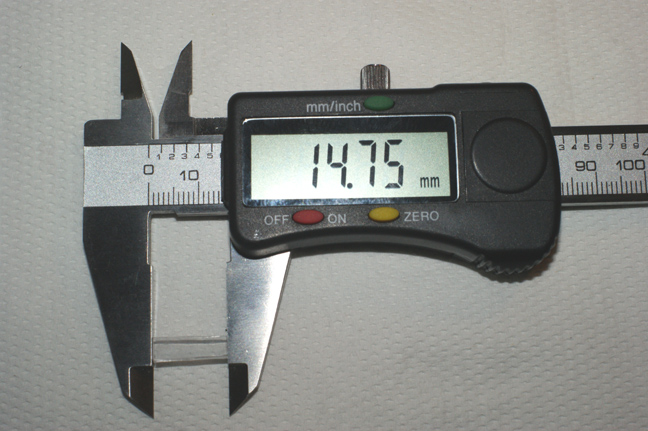

Now we have to cut a piece like this one from a elastic plastic material (PVC).

(I can send you a piece if you need it)
Zuiko Nikon, no adapter 4

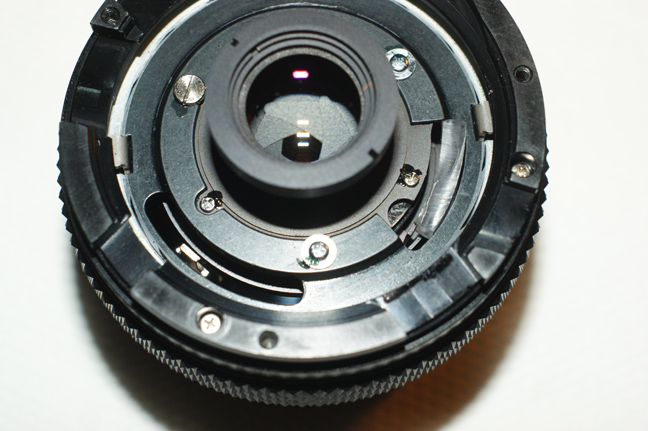

 And insert it in this space pressing the aperture lever to the left, so the iris will close.

The elastic plastic has to enter there with a little pressure, so it will stay secure.
Zuiko Nikon, no adapter 5

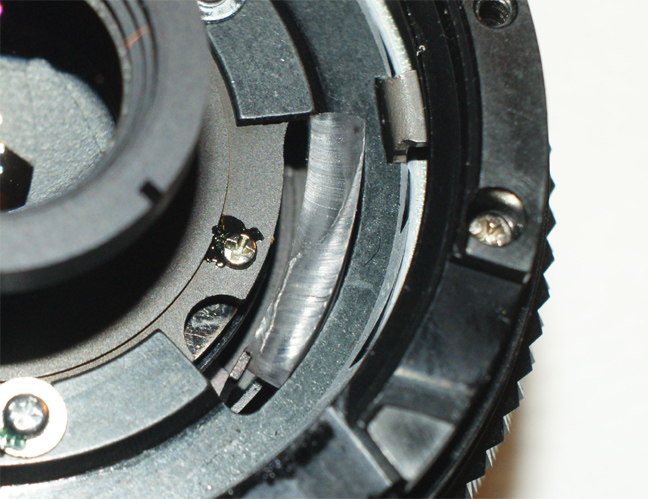

 Closer image.
Zuiko Nikon, no adapter 6

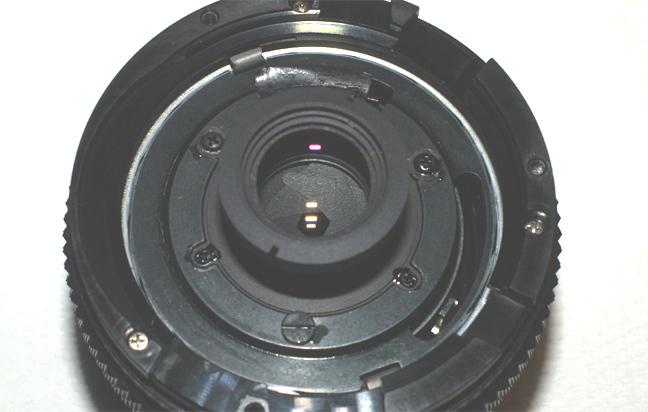

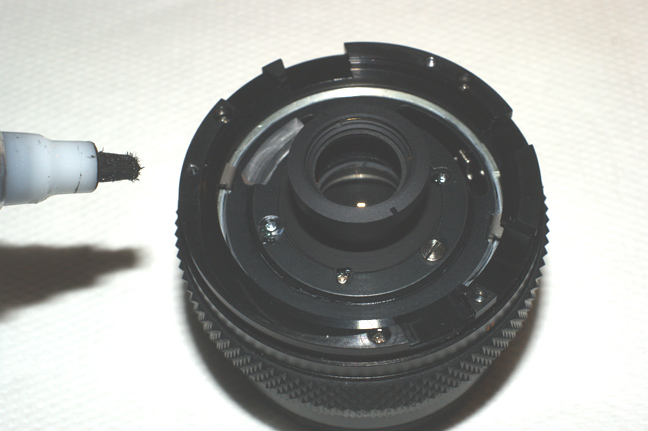

 I will paint on flat black those white metal screws.
I use a marker from Micro-tools
Zuiko Nikon, no adapter 7
 I painted the plastic piece too.
Zuiko Nikon, no adapter 8

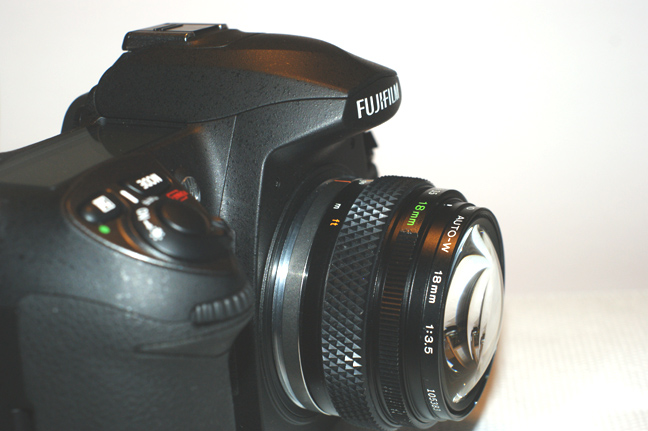

Ready, now screw the Leitax mount and we can use this Zuiko lens on our modern digital camera.
