Please don't hesitate to ask me any doubt regarding this conversion.

                                                               info@leitax.com

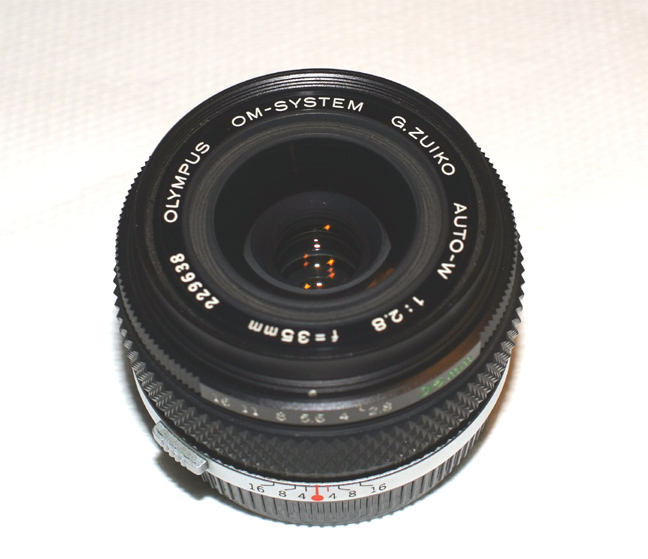

This is the Olympus OM-System Zuiko 35/2.8

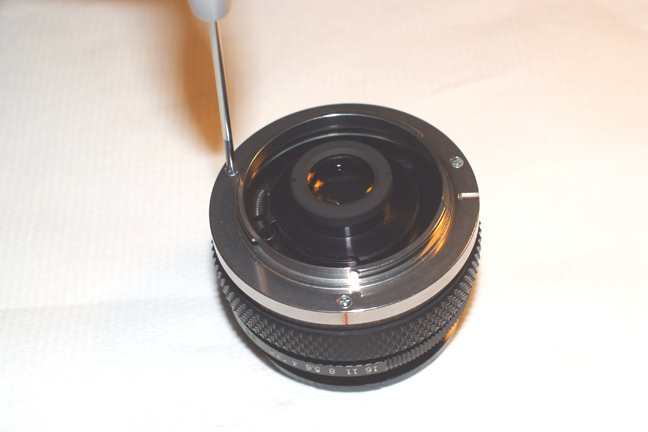

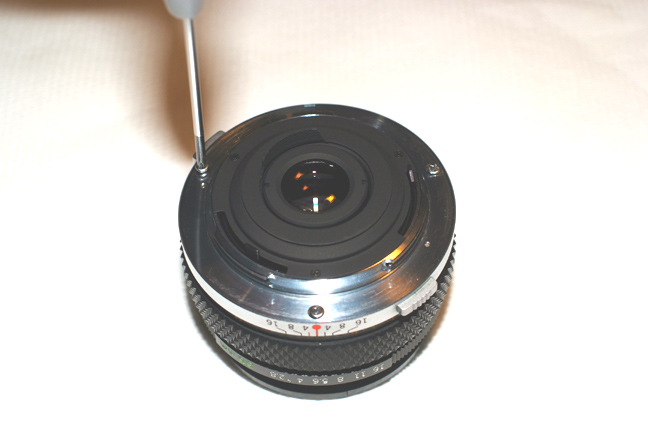

It has three screws at the bayonet base, which we have to remove.

Then, just lift the bayonet.

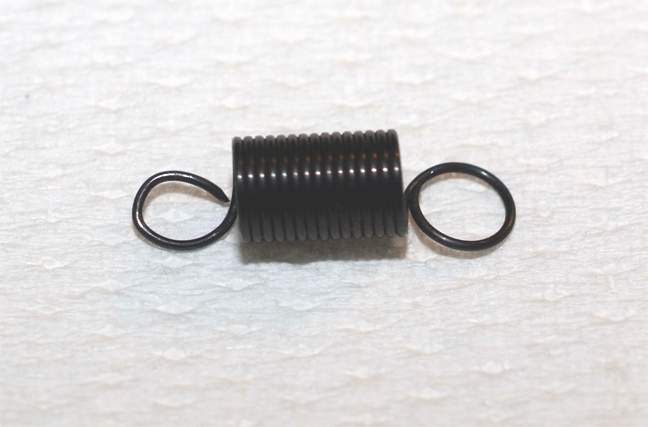

Now make a spring like this from a 7 mm piece of
the provided spring.

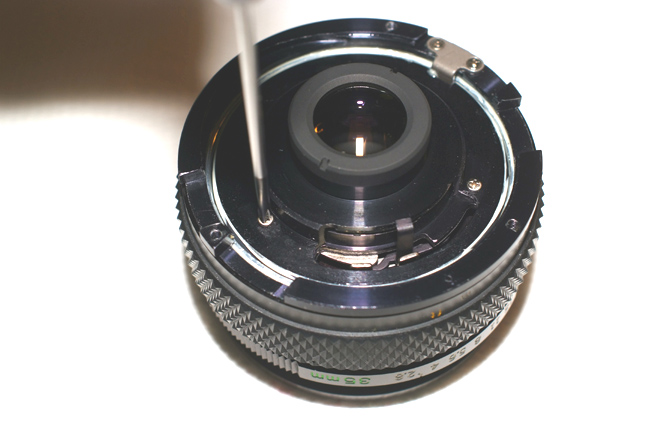

And unscrew this one a little bit.

Just enough to pass the wire under it.

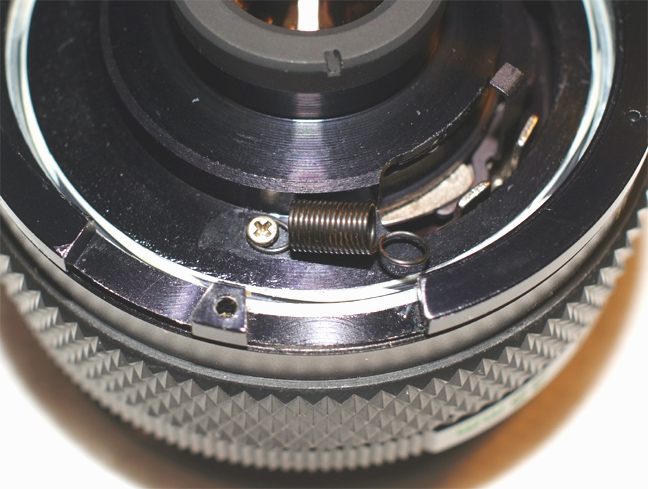

The other side goes here.

Ready, now tighten that screw, but not too much.

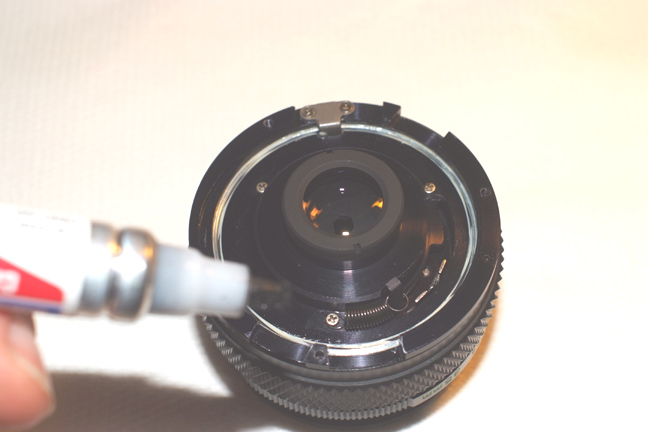

It is a good idea to drop a small quantity of nail varnish on that screw, so it will not get loose. Please let the varnish dry completely before mounting the lens on the camera:  the smell must disappear.

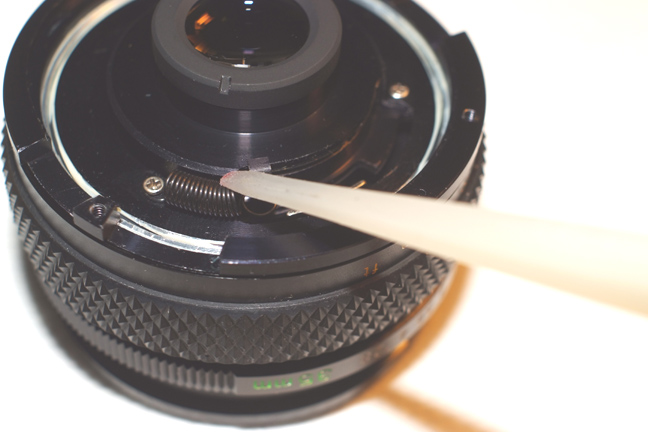

Keep the spring down.

There are some bright screw heads than I would paint in flat black.
And we can install the Leitax bayonet, you will need to use the provided screws..

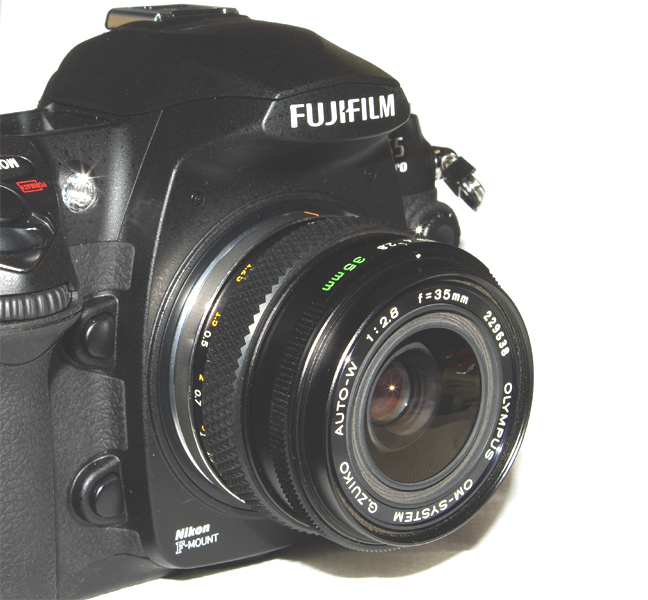

And we have this nice lens ready for all Nikon  F-mount and Pentax cameras.
