NEW! A new version of this mount will work with Nikkor lenses without CPU.

NEW! The standard mount will work with Zeiss ZF and ZF.2 lenses too.

We sell replacement mounts to use Voigtlander SL II lenses on Sony cameras.

Welcome to Leitax. This is our Voigtlander-Sony/Minolta page.  We offer this new replacement Leitax bayonet to use Nikon-F mount Voigtlander SL II lenses on our Sony or Minolta bodies.

-This conversion is fully reversible and will not damage either the lens or the camera.

-This replacement mount is ready to install the appropriate chip on it. And, additionally, I will offer this mount with a chip already installed. When the lens has the proper chip, our Sony camera will display the focus confirmation light, will meter in Aperture priority mode and will enable  the Super Steady Shot.

-The Voigtlander SL II lenses will focus to infinity and will maintain the aperture click stops.

-With adapted lenses, I use the stop-down method in Av mode. First, set the widest aperture on the Sony camera, now, with the lens diaphragm wide open, focus first, and then chose the aperture in the lens ring for metering.


Questions?     info@leitax.com        For the sales list, please scroll down

Nokton

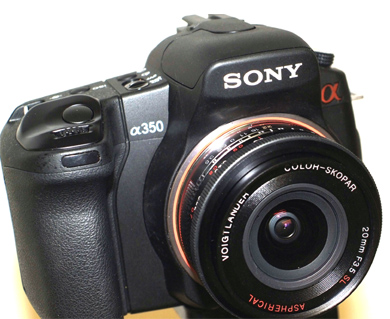

Color Skopar Sony

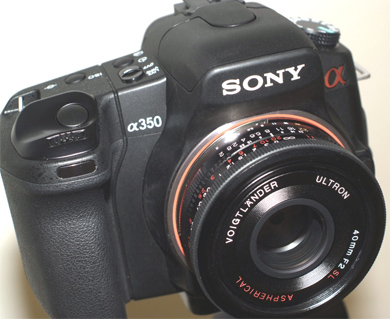

Ultron Sony Apo-Lanthar Sony

- To have the Super Steady Shot system working properly, you'd have to order the correct chip for the lens you are going to use, with the max. aperture and focal length of your Leica lens recorded in it.

- I'm offering our mount with the original James Lao chip already glued on it as well.

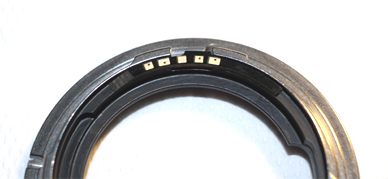

- To glue yourself the electronic chip, just support it to the left or to the right in the precisely machined slot on our Leitax Leica-Sony bayonet, depending of the chip model (take a look at the pictures below).

- The Leitax bayonet also accepts simpler chip models that you can find in Ebay.

- The Sony cameras can also take pictures without the chip. In Manual mode, just turn the control wheel to set the speed and you will see the scale in the viewfinder showing the current exposure value.
In Manual mode, the camera will take the picture and will save it in the memory card.
Without the chip, we don't have focus confirmation and the anti-shake works for 50mm default value.

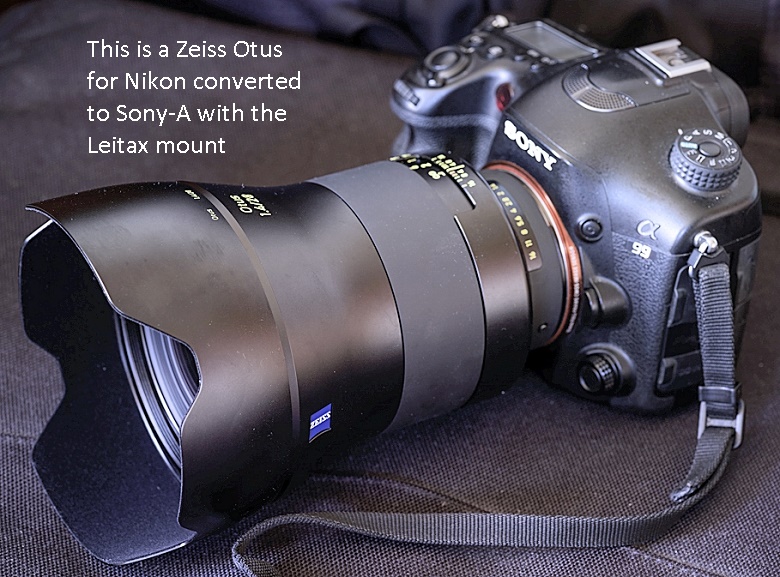

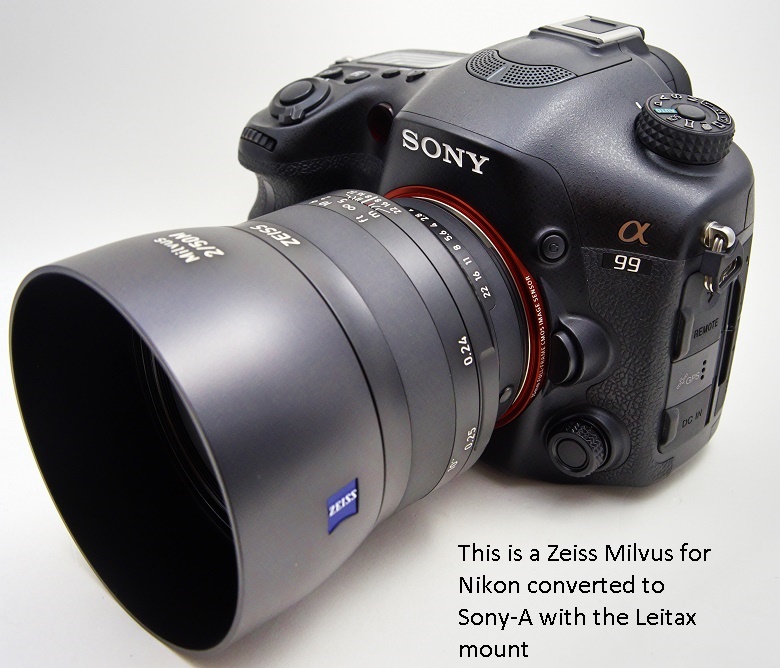

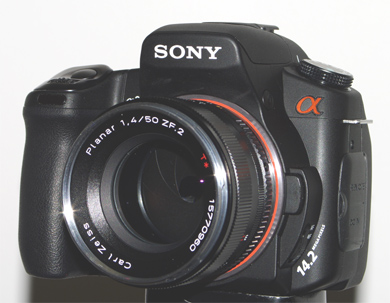

Zeiss ZF on Sony - NEW! This very same mount will work on Zeiss ZF and ZF.2  lenses too.

For these lenses, you'd have to order the correct chip (the thinner model -M42C) to James Lao:  http://www.eadpt.com/eadpen.htm


Caution!
The Zeiss Makro-Planar 2/100mm ZF and ZF.2  have the bayonet screws in different position. Therefore the lens will stay in the Sony camera slightly displaced.


Caution! if you want to convert the Zeiss 25/2, 100/2, 135/2 or 35/1.4 ZF/ZF2 lenses, please ask for special screws.

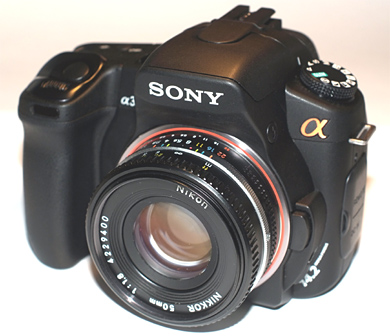

Nikon-Sony -NEW!  I did a small modification to this bayonet to use it on Nikkor lenses without CPU.

For these lenses, you'd have to order the correct chip (the thinner model -M42C) to James Lao:  http://www.eadpt.com/eadpen.htm


- Caution! The Nikkor 55/1.2 lens has the screws slighly displaced and cannot use our mount without a modification work on the Leitax bayonet.

- Caution! The Nikkor 20/2.8 lens is not compatible with this Leitax mount.


You can order the Voigtlander-Sony (Zeiss ZF/ZF.2- Sony)  bayonet here.
- Due to strict security, the postal service to the US can take several weeks, US customers please consider the UPS option.

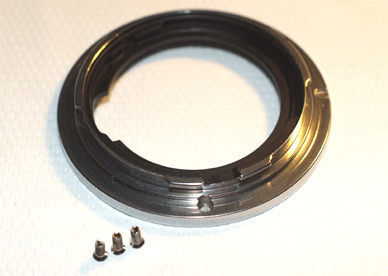

Sony bayonet, no adapter This is the standard Sony bayonet for Voigtlander SL-II and Zeiss ZF-ZF2 lenses that have originally a Nikon-F mount.

Also includes the necessary screws.

New! there is a version for Nikkor lenses without CPU
Out of stock
Standard version for Voigtlander and Zeiss lenses.
65 Euro

Out of stock
Version for Nikkor lenses
65 Euro
I will maintain a stock of chips for the four Voigtlander lenses, here you can order one already installed on your Leitax  bayonet.

This price is for the chip installed on your Leitax mount
30 Euro
Chip Data

chip1
If you already have your own chip and hesitate to install it on your own, you can send it to me.
Please warn me about this in the Paypal payment instructions to merchant
Free service
This is the glue I use, it is strong and will not stick our fingers at once.
7 Euro
Sony cap You may need a generic Sony/Minolta rear lens cap.
2 Euro
Techcap But, if you want the best, I can offer now the OP/TECH USA Sony/Minolta cap.

-It has a rubber O-Ring that seals the lens from dust and moisture.

-The O-ring also forms tight friction, it will prevent from losing the cap.

Out of stock
9 Euro

With certain models, we'll have to manipulate inside the lens, it's not a good place for something metallic. With this plastic tool I don't make any scratches inside the lenses.
3 Euro

I use this model for all the Phillips screws in the Voigtlander lenses, it is industrial grade quality made by Irazola, and the design is very good, you can push and turn it firmly with the rotary end and the rubber finish.

5 Euro
bayonet replacement, no adapter If you don't feel confident after reading the instructions, you can send your Voigtlander lens to me.



 Notice this price doesn't include the bayonet nor shipping.
50 Euro
Extra shipping cost for UPS courier.
I would need your phone number for the UPS shipping form.

Destination

Important Paypal Notes:

- We ship to all Paypal supported countries.
I must ship to the address supplied to me by Paypal. I cannot ship to any alternative addresses.
- 21% VAT Tax will be charged by Paypal system to European Union customers
- In case you have a valid intra-community VAT number, please include it at the Paypal text for the seller,  I will refund the Vat Tax amount via Paypal.
- If you don't receive my email after a purchase, it means Paypal failed to notify me,  this happens rarely. Please email me if you don't get my confirmation note.
- Customers outside the European Union may be have to pay import duties.
- If you don't have a Paypal account, it is possible to pay with a SWIFT Bank Transfer or Western Union transfer.

Shipping:

- Due to strict security, the postal service to the US can take several weeks, US customers please consider the UPS option.
- Handling & Shipping cost for any quantity of items and to all countries: 10 Euros. It will be added automatically at the Paypal checkout.
