Welcome to our Zeiss/Contax section. As you know, this site is focused to give more possibilities to our Pentax film or digital cameras and, finally, with our replacement bayonet, we can use a selection of lenses for Contax, made by Carl Zeiss.
The same as with Leica lenses, this conversion is fully reversible and will not damage the lens nor the camera. The Zeiss/Contax lenses will focus to infinite, our cameras will give focus confirmation, will meter in Av mode (stop down), and the modern Pentax cameras will stabilize all of them.
Unfortunately, the Contax lenses present a variety of different bayonets models and sizes, and the gradation of difficulty goes from easy to almost impossible. So lets start with the easy ones, the Contax MM type with small diameter bayonet.
Please scroll down for the instructions
|MM Distagon*||18mm F4|
|MM Distagon*||21mm F2.8|
|MM Distagon*||25mm F2.8|
|MM Distagon||28mm F2.0|
|MM Distagon*||28mm F2.8|
|MM Distagon*||35mm F2.8|
|MM Planar*||50mm F1.7|
|MM Planar*||50mm F1.4|
|MM Sonnar*||85mm F2.8|
|MM Sonnar*||100mm F3.5|
|MM Sonnar*||135mm F2.8|
|MM Tele- Tessar||200mm F4|
The lenses marked with an asterisk * have been already tested.
Available a special bayonet for two AE lenses:
|AE Planar*||50mm F1.7|
|AE Sonnar* (Japan)||85mm F2.8|

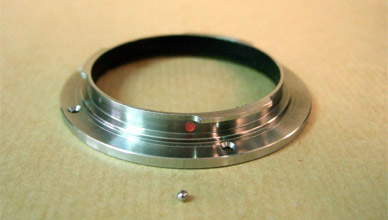

this one is the Pentax bayonet for a selection of Zeiss/Contax MM
lenses, please find more details at the Contax
Included a spare bearing ball, just in case yours gets lost.
We had to make an special edition of the Pentax-Contax bayonet to use these two AE lenses:
AE Planar 50/1.7
AE Sonnar 85/2.8
Included a necessary spring, an useful needle with hook and a spare bearing ball.
|This is the M42 mount for the Carl Zeiss Contax
Planar 85/1.4 MM and
Distagon 35/1.4 MM
Included a new aperture lever and a spare bearing ball.
|This is the M42 mount for the teleconventers Mutar II and III||
With certain models, we'll have to manipulate inside the lens, it's not a good place for something metallic. With this plastic tool I don't make any scratches in the Zeiss lenses.
I use this model for all the Phillips screws in the Zeiss lenses, it is industrial grade quality made by Irazola, and the design is very good, you can push and turn it firmly with the rotary end and the rubber finish.
|This silicone grease tube is enough for dozens of bayonet replacements.||
|You may need a generic K rear lens cap.||Out of
|But, if you want the best, I can offer now the OP/TECH
USA Pentax-K cap.
-It has a rubber O-Ring that seals the lens from dust and moisture.
-The O-ring also forms tight friction, it will avoid losing the cap.
-It covers the entire bayonet diameter, providing more protection against blows and scratches.

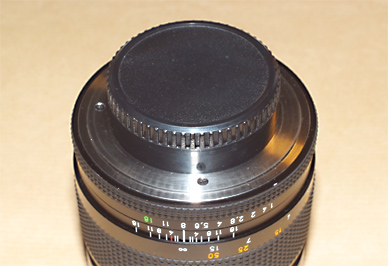

|Generic M42 rear cap for your Contax 85/1.4 MM||2 Euro
If you don't feel confident after reading the instructions, send your Zeiss lens to me.
Provided your lens is in the list, we can install a Pentax bayonet on it.
Notice this price doesn't include the bayonet nor shipping.
shipping cost for faster courier service.
I will need your phone number for the courier shipping form.
All the MM lenses tested are identical inside, so the following instructions will work for all of them, and I am pretty sure, for all the rest.
|These instructions are for the MM lenses only.

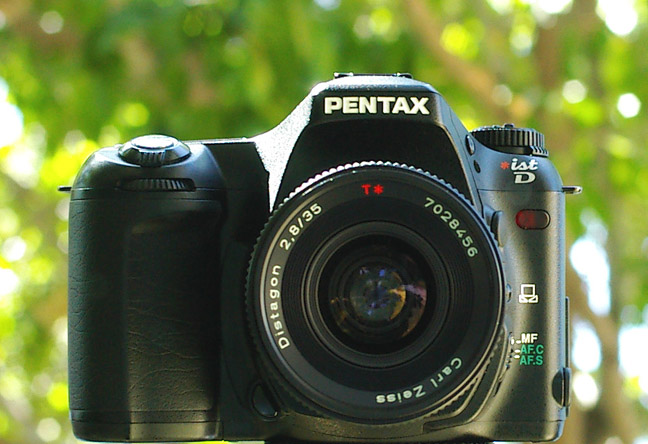

This is the Carl Zeiss MM Distagon 35mm F2.8

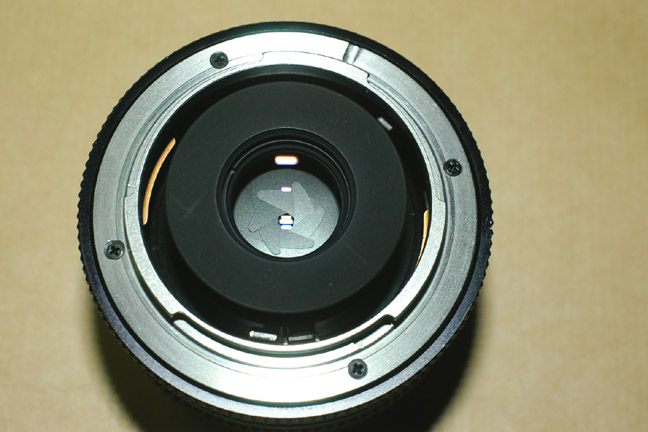

|First, I would take a picture of the bayonet, so it will be easy to rebuild later|
|Some lenses have this curved piece here, we have to remove it. This one is the Sonnar 135mm.|
|Now, unscrew the three upper bayonet screws. Use a good screwdriver, not those cheap ones from hobby shops, these screws are glued to the threads and it is necessary to make enough pressure and turn them carefully.|
|And remove it.|
|Now, unscrew the bayonet.|
| And lift the diaphragm ring together with the bayonet.
Have the aperture ring in a middle position before lifting it, and lift it vertically without twisting it while lifting it, to avoid moving to the extreme side the internal iris mechanism, which could be difficult to put again in its place.
|Ok, it's better to cover the lens meanwhile we are working on the ring.|
|Now, we have to put the bayonet apart from the ring.|
|When they are apart, look for the bearing ball, it should be near its place, over the small spring.|

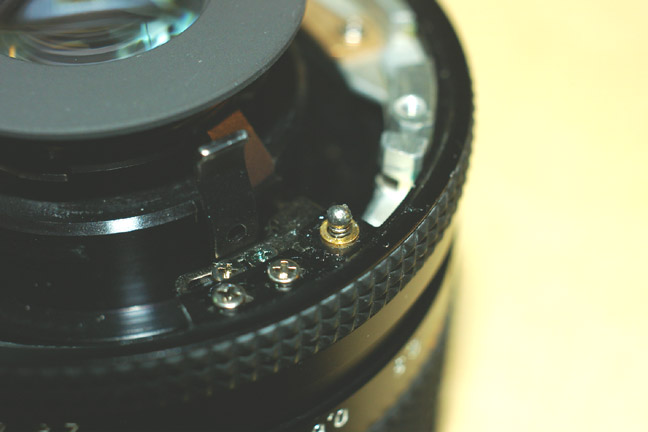

|Now look at this spring, we need to uncouple this side
from the hook.
Usually, there is a bit of glue to secure it, don't pull the spring, it can be deformed or broken, just scratch patiently the glue with a pointed tool or a needle.
|The spring is free now.|
|With the plastic tool, lift a bit the steel ring.|
|And push it to the right, so it can be removed from the Contax bayonet.|
case the steel ring doesn't move to the right, it means it got glued
just under the square slot. This
is because they dropped glue over that screw and some glue went under
the steel ring. Also could be glued around the round holes, from the
So we need to remove that screw and the square piece that it attaches .
|Now, to unglue the steel ring, use the plastic tool to
avoid scratches. Put it like the picture and turn it.
Please don't try to remove the steel ring lifting it by the opposite side, you will bend it.
the diaphragm ring on the lens, you will see a lever inside that
commands the blades, which goes inside this u shaped piece of clear
Now you must be able to open and close the diaphragm rotating the ring.
|Put a little bit of the special grease on this small spring, so the bearing ball will get sticked to it.|
|Bring the small ball to its place , better don't use tweezers , the tip of your screwdriver with some special grease will not lose it,|
|And the ball on the spring, leave an small amount of
grease on the ball.
|Now it's time to put the steel ring, notice the hook goes downwards.|
|And this square slot goes here.|
|Turn slightly the diaphragm ring so the small ball will coincide with one of oval shaped holes.|
|Another view of the small ball and the steel ring on it.|

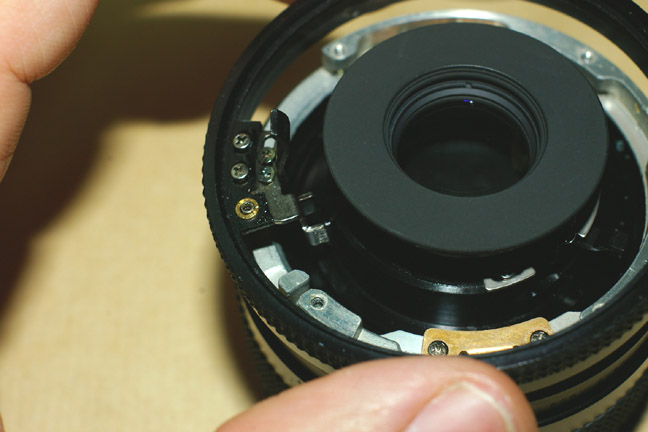

|Here you can see all is in correct position, the small ball, the round hole for the screw and the square slot.|
|And the rest of holes too.|

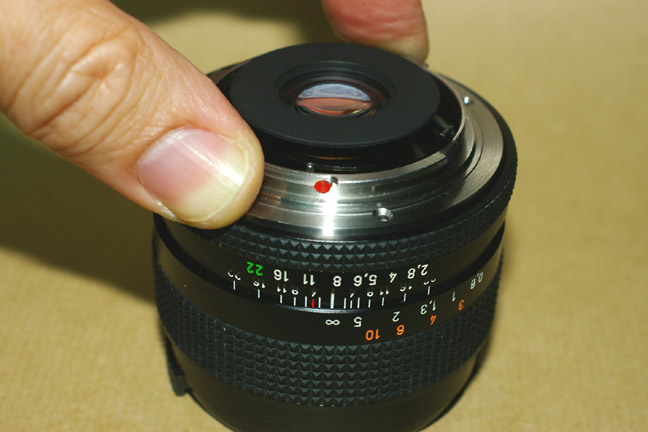

|So we can install the new Pentax bayonet, be careful now, first find the correct position looking at the red dot, it goes in front the lens scale center. Then check if the screw holes are well aligned, and finally put the Pentax bayonet lowering it vertically.|
|You should feel the spring pushing back when you press the bayonet against the lens, in this case you can screw the bayonet and the work is finished.|
|So we can use several Zeiss/ Contax lenses on our
Pentax cameras, these
lenses are on par with Leica and the best Pentax Limited .
